Pset
78 (428) 9836 3123 01

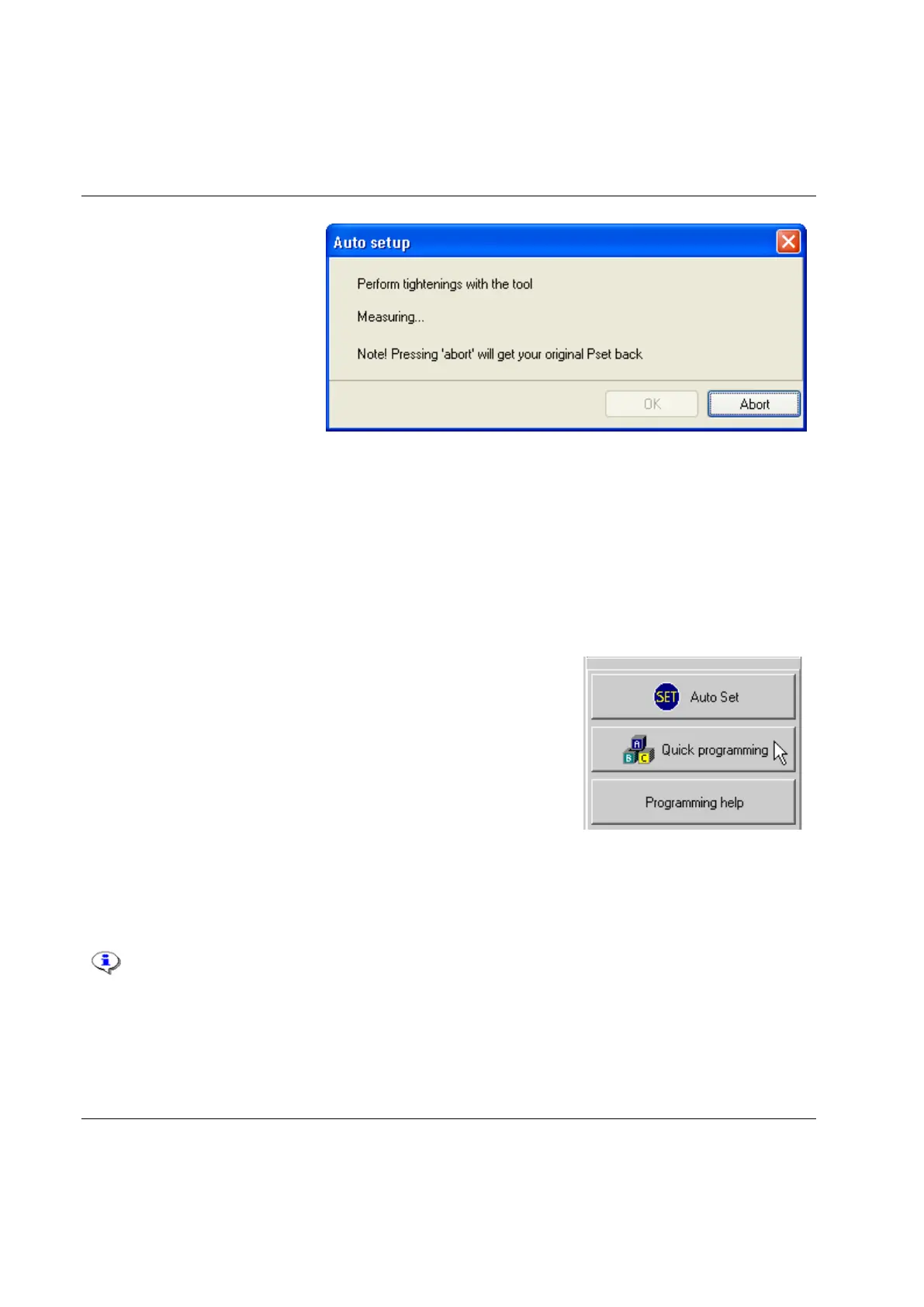

Perform a number of tightenings
with the tool.
The first two tightenings are
completed at very low speed.
Normally, three to ten tightenings
are required in order for the
Power Focus to calculate and set
the required parameters for the
specific joint characteristics.
Click OK when prompted.
Clicking Abort before the Autoset procedure is completed cancels the operation and restores the previous
settings.
7.3 Quick programming
Quick programming is intended to help users to quickly configure a Pset
and gives the opportunity to use the Power Focus after a fast and
simple programming.
The joint angle is the distance from when the screw (nut) head touches
the surface and the torque starts to build up, until it reaches the set
limit. It is possible to measure the joint angle by using a torque wrench.
For hard joints, it is best to set the value at 30 degrees. For soft joints we recommend setting the joint
angle above 100 degrees. This gives a better tightening during the first stage and a distinct second stage.
Adjust the angle if the second stage is too long. It is important that there is a second stage; otherwise the
tool may jerk at full torque (overshoot).
If using an existing Pset, the parameters are erased and replaced by the Quick
programming calculated parameters.
For quick programming, the final target value must be larger or equal to 25 percent of
T102 Tool max torque.
