Connecting devices

9836 3123 01 29 (428)

4 Connecting devices

This section describes the connections on PF backplane. It also describes the start-up process for PF and

for the tools.

4.1 PF connections

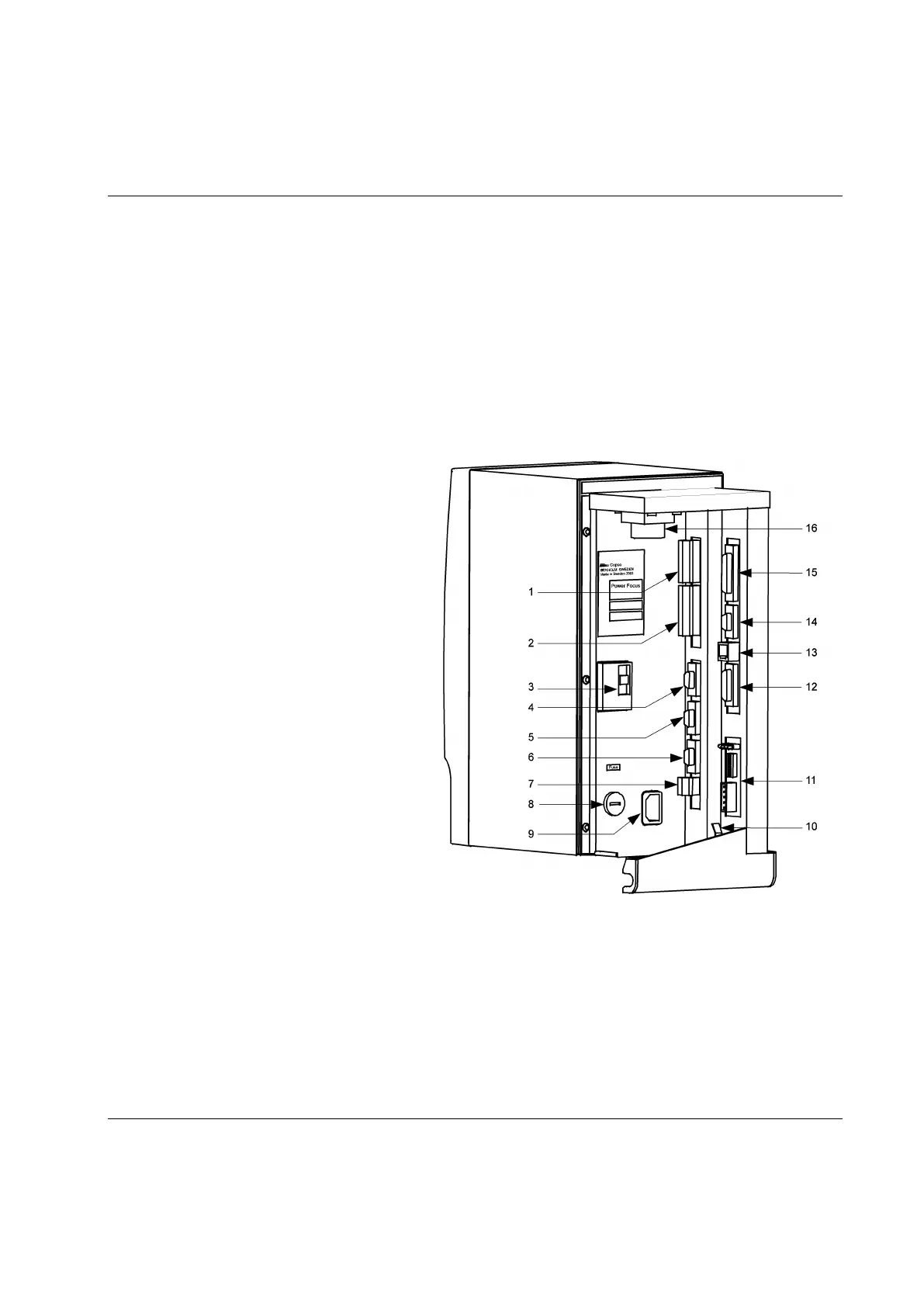

Backplane connections

Digital input + internal 24 V DC

Relays

Ground Fault Interrupter (GFI)

Serial #1 (RS 232) to MC-card

I/O Bus #1

I/O Bus #2

Remote start

Main fuse

Main fuse power connector

Ground connection

Fieldbus card (optional)

RBU

Ethernet

Serial #2 (RS232) to CC-card

Printer

Tool output

In addition to backplane connections,

PF4000 has a USB connection on the

front underside.
