Pset
86 (428) 9836 3123 01
7.6.4 Tq con/ang con (AND) / (OR)
The Tq con/ang con (AND)/ (OR)
strategy controls both torque and
angle. This strategy is selectable
for both one and two stage
tightenings.
For Tq con/ang con (AND), Power
Focus controls the P113 Final target
value and the P123 Target angle
value. The tool stops when both
targets are reached. They do not
have to be reached at the same
time.
For Tq con/ang con (OR), Power
Focus controls the P113 Final target
value and the P123 Target angle
value. The tool stops when the
first of these two targets are
reached.
For both Tq con/ang con (AND) and Tq con/ang con (OR) the torque and the angle result must be within
respective min and max limit.
If, for some reason, the tool should exceed P114 Final tq max or P124 Final angle max, the tool shuts off and
the (NOK) tightening results are shown.

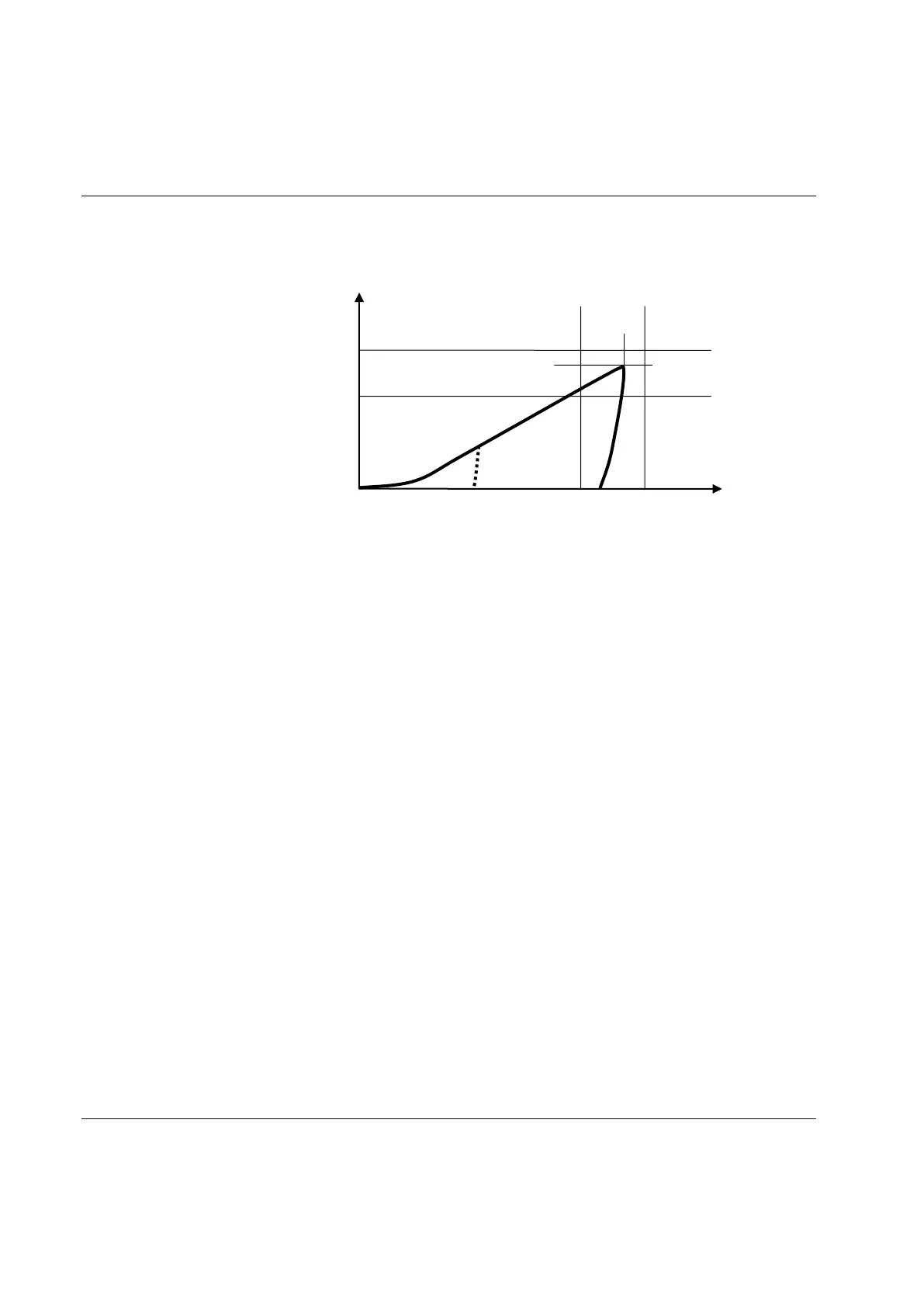

Torque
Angle
1. P112 Final torque min
2. P114 Final torque max
3. P113 Final target
1.
2.
6.
4.
5.
3.
4. P122 Final angle min
5. P124 Final angle max
6. P123 Target angle
