Pset

80 (428) 9836 3123 01

7.5 Programming

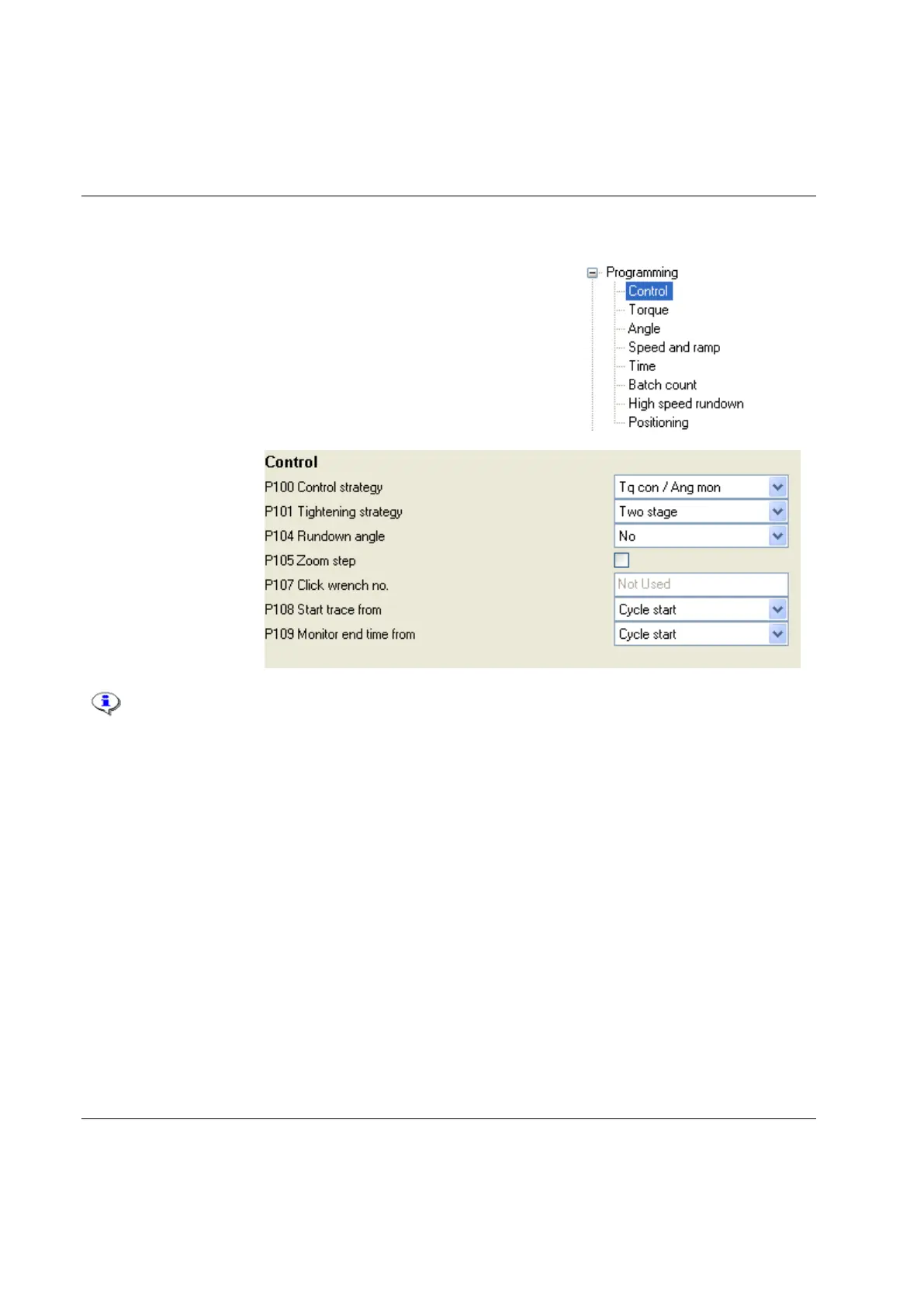

In the Pset setup window, expand the Programming branch.

Select Control.

Choose the desired P100

Control strategy, P101

Tightening strategy and

settings for the other

parameters.

For more information, see sections Control strategies,

Tightening strategies and Additional control options.

Contents3
- Table of Contents3
1 General Safety Instructions11
- Work Area11
- Electrical Safety11
- Personal Safety12
- Service13
2 Introduction15
- Revision History15
- Abbreviations15
3 Introduction to Power Focus17
- Pf 3000/3100/310219
- Rbu20
- Toolstalk PF20
- Communication20
- Tensor Tools22
  - Tool Accessories23
- Hardware Accessories25
- Software Accessories27
  - Ats27
  - Acta 400028
4 Connecting Devices29
- PF Connections29
- Rbu30
  - MAC-Address30
  - PF Start-Up Instructions30
- Tool Connection and Start-Up31
- Printer35
- Serial Connection35
  - Serial RS232 #135
  - Serial RS232 #236
- Ethernet TCP/IP36
- Digital Inputs36
- Digital Outputs (Relays)37
- VDC Output38
- I/O Bus38
- Remote Start Connector39
- Main Power Connector40
5 PF User Interface41
- PF Graph41
- PF Compact49
6 Getting Started with Toolstalk PF55
- Installing Toolstalk PF55
- Toolstalk Overview56
- Configuring Toolstalk Settings63
- Connecting a PF68
- Storing Programming on File70
  - Store PF to File71
  - Read PF from File72
- Offline73
  - Configuring a Tool Offline74
7 Pset75
- Create New Pset/Open Pset76
- Autoset77
- Quick Programming78
- Programming Help79
- Programming80
- Control Strategies84
- Tightening Strategies95
- Programming99
- Pset Setup110
- Statistic Programming112
- Running a Pset112
8 Multistage113
- Create New Multistage/Open Multistage114
9 Job117
- Job Concepts117
- Job Configuration119
- Functions in the Job Monitor124
- Unlock the Tool125
10 Controller126
- Information126
- Configuration128
- Network130
  - Cell and Net Configuration132
- COM Ports136
- Display137
- Memory138
- Accessibility141
11 Tool143
- Tool Information143
- Tool Configuration145
- Tool Diagnostic154
  - Sensor Tracking155
  - Transducer Calibration155
- Tool Maintenance157
- Tool Lock Functionality164
12 Accessories167
- Digital I/O167
- I/O Bus170
- Tool Bus175
- Printer178
13 Sync181
- Sync Prerequisites and Limitations182
- Hardware Configuration183
- Sync Configuration184
  - Sync Members Configuration184
  - Sync Reference Configuration185
- Troubleshooting187
14 Identifier189
- Identifier Concepts189
- Identifier Prerequisites and Details190
- Configuration of Identifier Functions192
15 Fieldbus199
- General Setup200
  - Parameters in General Setup201
  - View Fieldbus Information203
- From PF Setup and to PF Setup204
  - Fieldbus Modes205
- Storing Fieldbus Configuration206
- Disable Fieldbus Carried Signals206
- Fieldbus Data Format207
  - Bitmap Select (Endian Mode)207
  - Fieldbus Data Types207
- Fieldbus Selector Configuration212
- Select Pset from Fieldbus and Set Batch Size213
- Fieldbus Information214
16 Logic Configurator245
- Process Description (an Example)246
- Logic Operators and Function Blocks247
  - Logic Gates247
  - Function Blocks248
- Logic Configurator Setup251
  - Simulation256
17 Monitors259
- Result Monitor260
- Job Monitor262
- Operator Monitor263
  - Picture Monitor266
- Identifier Monitor267
- Get All Results268
18 Trace271
- The Trace Window271
19 Statistics275
- Statistic Alarm276
- Trend Deviation Alarm277
- Calculation of UCL and LCL277
- Calculation of Mean Values277
- Calculation Formulas278
- Constants for Calculation of SPC Variables280
20 Quick Reference Guide281
- Tq con282
- Tq Con/Ang Mon286
- Tq Con/Ang con (AND) and Tq Con/Ang con (OR)290
- Ang Con/Tq Mon294
- Reverse Ang298
- Rotate Spindle Forward and Rotate Spindle Reverse299
- Home Position Forward and Reverse300
- DS con301
- Snug Gradient304
21 Digital I/O and Fieldbus Items307
- Digital Output (Relay) and Fieldbus Items from PF307
- Digital Input and Fieldbus Items to PF328
22 Parameter List341
- Pset341
- Multistage353
  - Setup353
  - Multistage Programming354
- Job356
  - Setup356
  - Programming357
- Controller360
- Tool366
- Accessories375
- Sync377
  - Programming377
- Identifier378
  - Identifier Setup378
- Fieldbus379
23 Event Codes383
- Event Code List385
24 Index422
