From the digital input functions point of view, single push and double push user interaction types do
generate pulses. This means that they do not have duration where input to the digital input function
remains high. Single push and Double push user interaction types are therefore not suitable for digital
input functions that are intended to “follow” the status of the button. The pressed user interaction type
provides duration; i.e. input to the digital input function remains high as long as the function button is
pressed and goes low when it is released. It can therefore be used with digital input functions intended to
follow the button status.
Feedback is provided to the user to indicate which user interaction type was detected. If a Single push is
detected, the tool LED’s flash once and if a Double push is detected, the tool LED’s flash twice.
Feedback is only given when there is a function configured for the currently performed user interaction
type and current direction. For example, if a Double push is performed while operating in CCW mode,
but T235 CCW double push is set to ”Off”, no response is given.
For SL tools, the function button normally is configured to change tool direction in some way (“toggle
CW/CCW”, “toggle CW/CCW for next run” and “set CCW”).

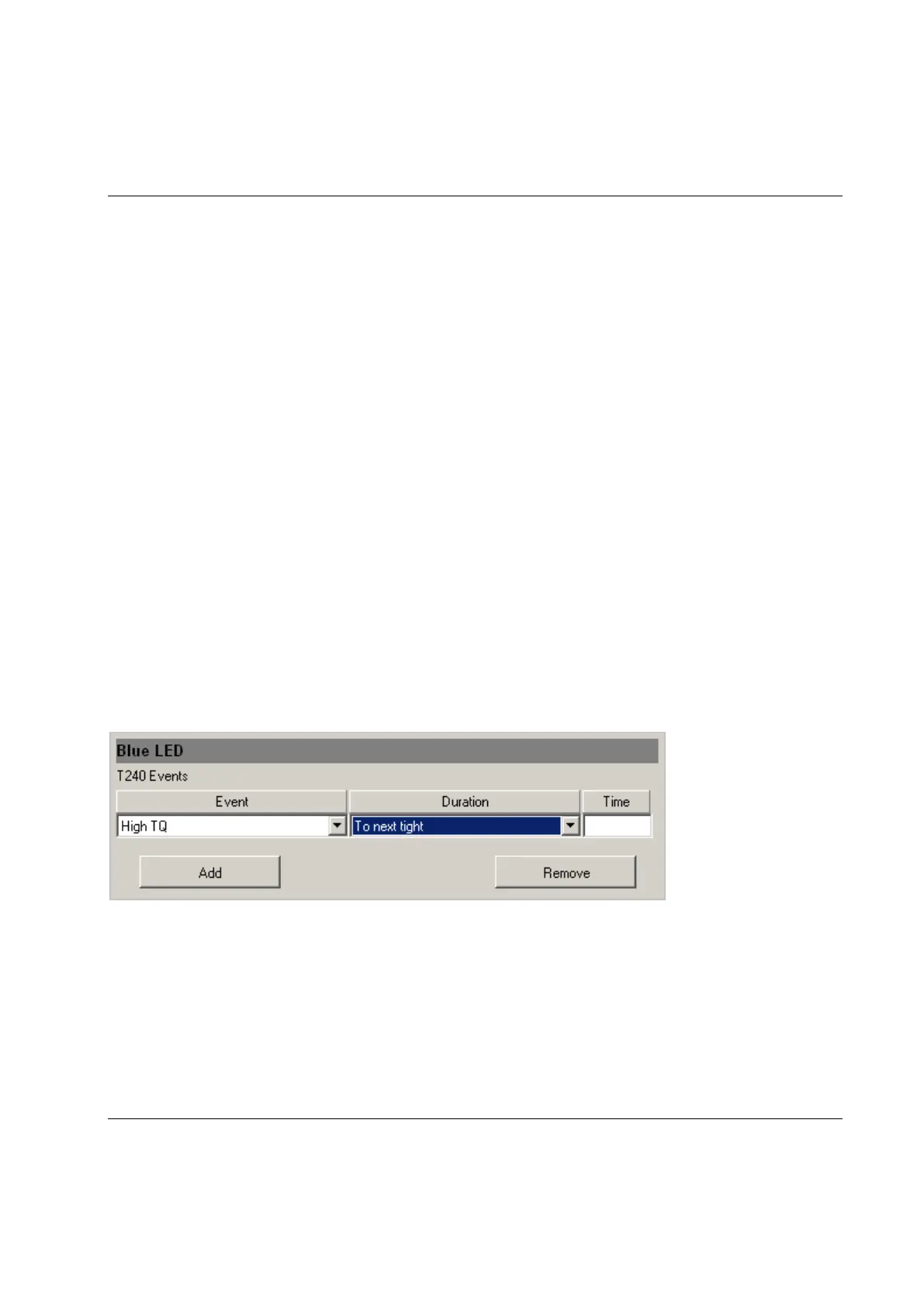

Make settings for Blue LED (if applicable). The Blue LED indicates when a predefined event occurs. The
events are relays connected from Power Focus to the tool.
To configure the T240 Events click Add and select type of Event, Duration and Time (if applicable).
Click Store to save settings.
