PF user interface
9836 3123 01 43 (428)
5.1.2 Display

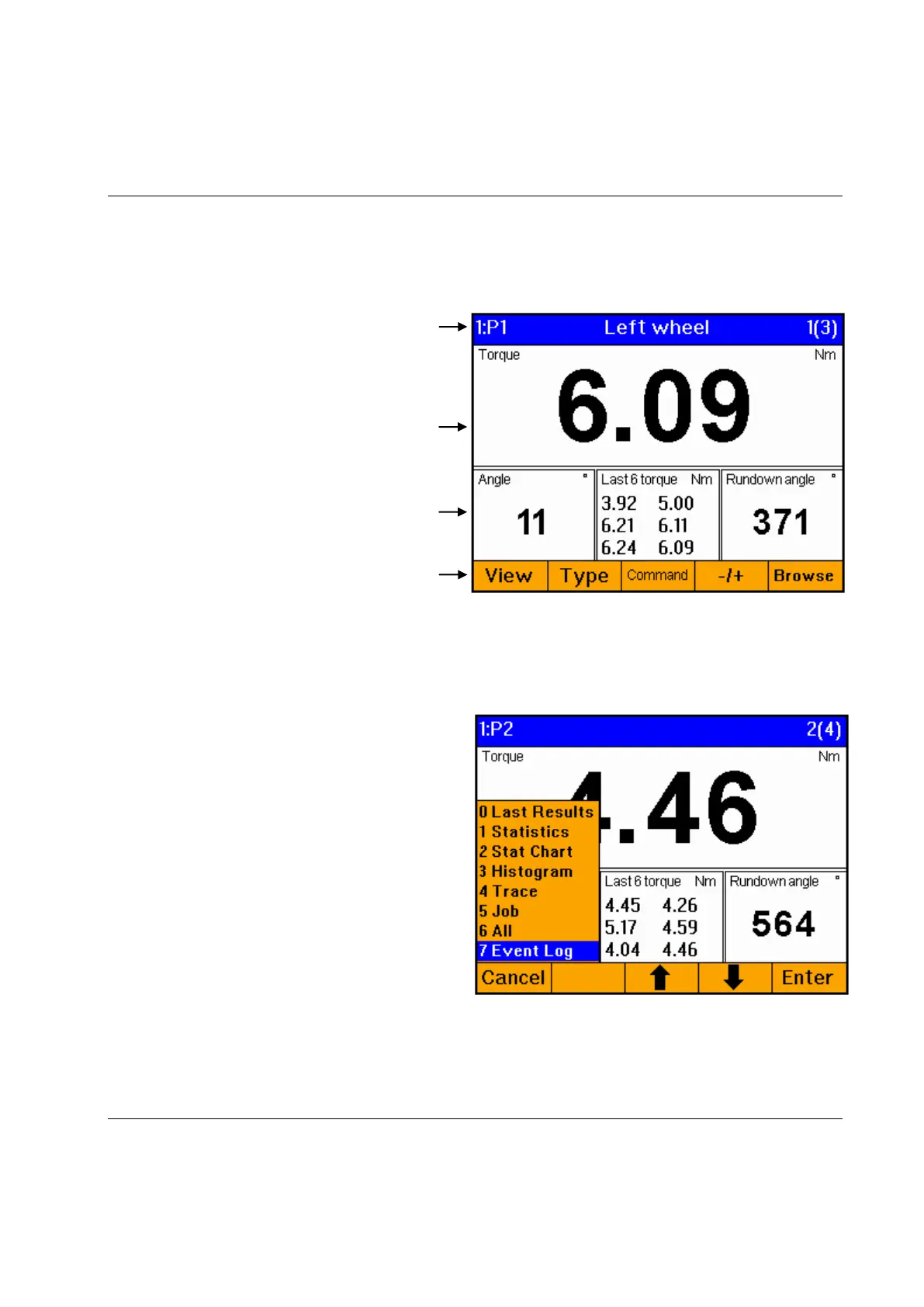

PF 4000 Graph features a large back-lit 72 x 96 mm color display with a dialog box-like interface to allow
accurate measurement readings and simple programming.
Header with three fields: channel number and
current Pset or Job, Pset name, and number of
tightenings (in batch). If the field is light-blue,
this indicates that the displayed information is
inactive or from another PF.
Result or Programming dialog box. Available
result view options are shown under the View
menu block. This figure shows the Last Results
view for one channel.
The last result lower windows are configurable.
Menu blocks representing programming tree
functions, short-cuts, arrows. The menu blocks
are controlled by the soft keys below.
Menus
The Menu blocks are located at the bottom of the display. Each soft key is used to select a menu block.
When selecting a menu block with more than one
item, a pull-up menu appears on the display.
To select an option, do one of the following:
ï‚§ Keypad: Press the digit on the numeric
keypad that corresponds to the desired option.
ï‚§ Soft keys: Scroll up or down using the soft
keys under the arrows. Then press the soft key
under Enter, or press ENTER on the keypad.
ï‚§ Arrows: Scroll up or down using the arrows.
Then press the right arrow to confirm the
selection.
