7.6 Control strategies
For all Tq con and DS con tightenings the process starts when the torque reaches P110 Cycle start. When the
torque reaches target and then falls below P115 Cycle complete the process ends. When the torque drops
below P115 Cycle complete without having reached target before, a timer is started. In this case, if the
torque does not increase above P115 cycle complete during P141 End time seconds, the process ends.
For Reverse ang the tightening process also starts when the torque reaches P110 Cycle start.
For Rotate spindle forward/reverse the tightening process starts immediately when the tool starts running.
The P123 Target angle is defined by P121 Measure angle to and can be measured from P120 Start final angle to
Torque peak, Angle peak, P115 Cycle complete, or Shut off.
P124 Final angle max is always evaluated from P120 Start final angle to angle peak.
For cordless tools some of the control strategies and options are not available.
Please consult the relevant tool manuals for more information.
7.6.1 Tq con
The Tq con strategy controls the
torque. This strategy is selectable
for both one stage and two stage
tightenings. The tool stops when
the torque reaches the P113 Final
target.
If, for some reason, the tool
should exceed P114 Final tq max,
the tool shuts off and the (NOK)
tightening result is shown.

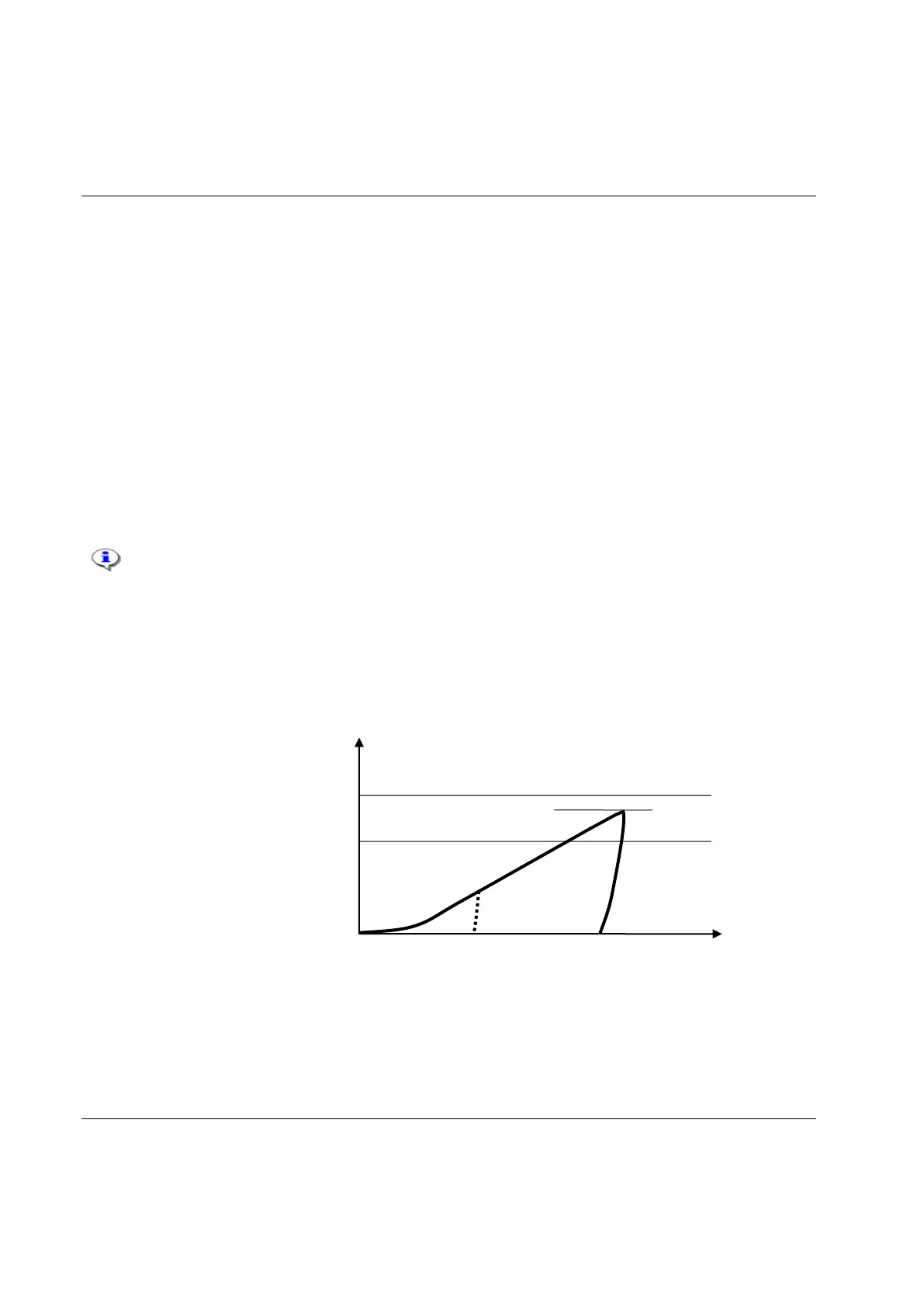

1. P112 Final torque min
2. P114 Final torque max
3. P113 Final target
