Monitors
260 (428) 9836 3123 01
17.1 Result Monitor

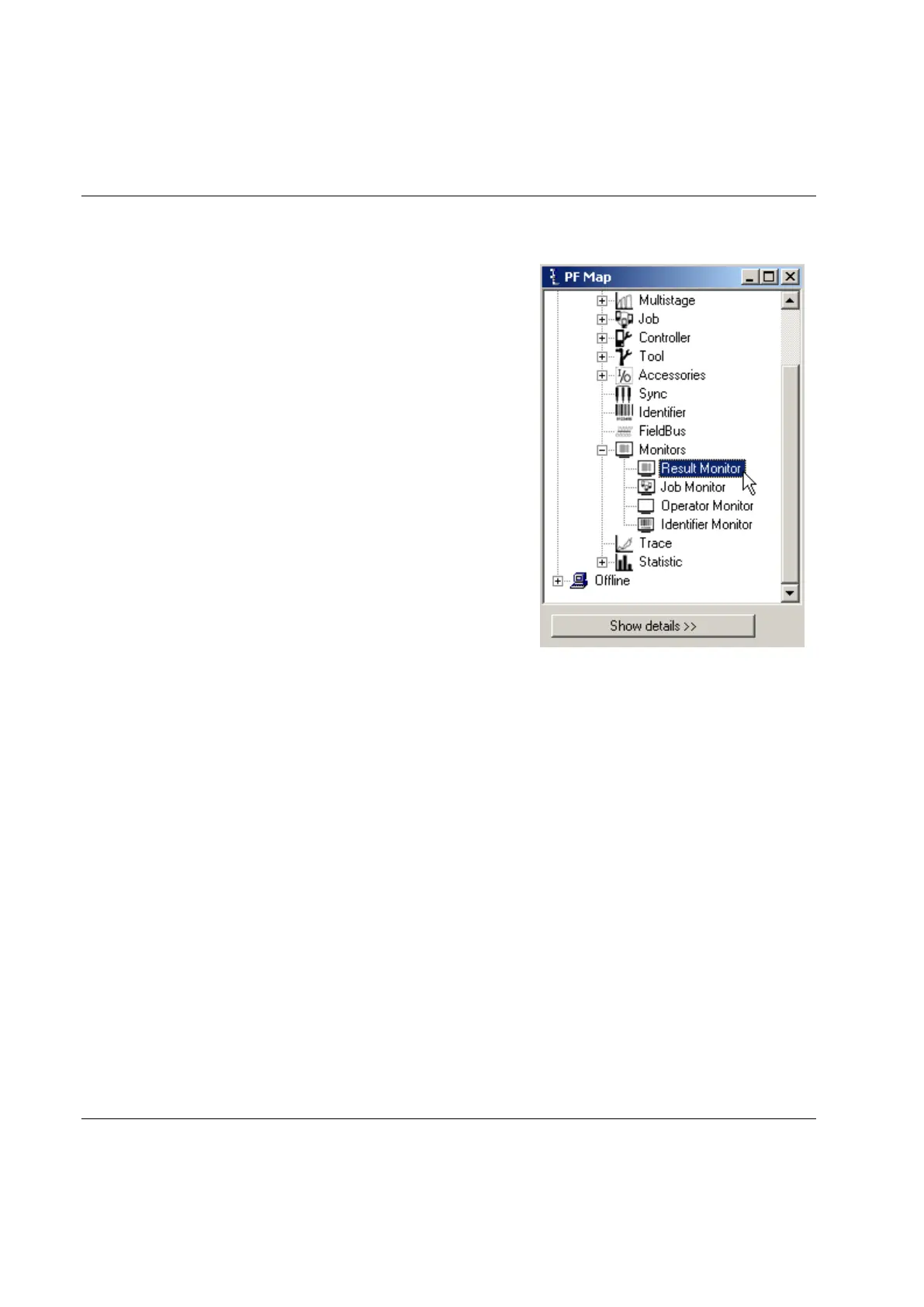

In the PF Map Monitor branch, double-click on Result Monitor.
The Result Monitor presents the latest tightening results from the Power Focus and the used Pset.
The tightening result includes the Final torque, Final angle, Overall status, Torque chart and Angle chart.
Select between Torque Chart, Angle Chart or Torque/Angle Plot to display results for a unique Pset.
It is possible to display several windows with different views, with a maximum limit of four.
