Pset
88 (428) 9836 3123 01

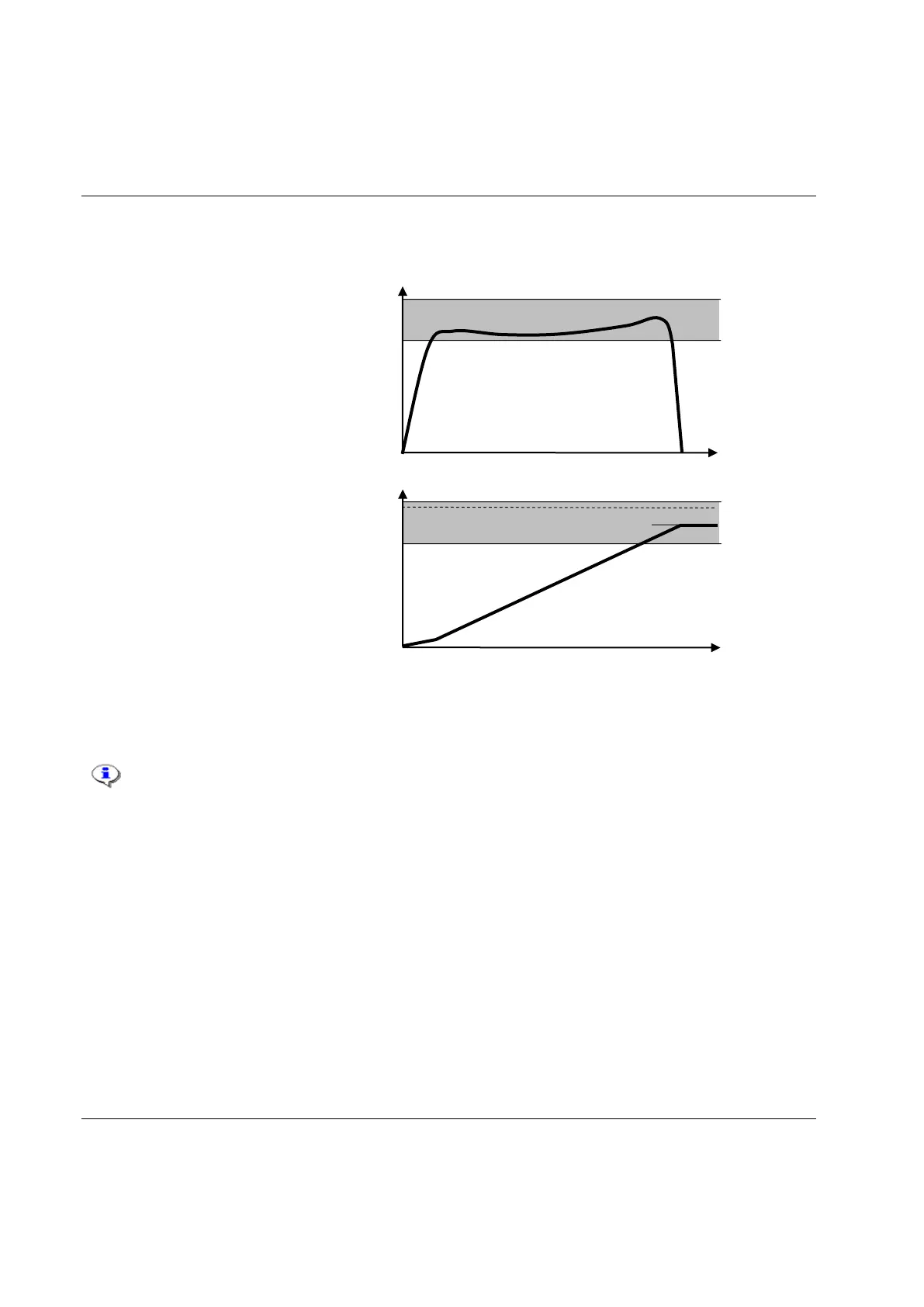

7.6.6 Rotate spindle forward/reverse
The rotate spindle forward/reverse
functions rotate the spindle a
specified number of degrees,
either forward or reverse,
independently of torque. The only
torque values monitored are P114
Final tq max and P112 Final tq min.
P123 Target angle is defined as the
number of degrees between start
of tightening and the peak angle.
The tool stops at P123 Target
angle.
If, for some reason, the tool
should exceed P114 Final tq max or
P124 Final angle max, the tool shuts
off and the (NOK) tightening
results are shown.
The tightening process begins when the trigger is pressed.
For rotate spindle reverse, the “active” direction of the tool socket rotation is the opposite of
the P240 Tool tightening direction. For instance, if “CW” is selected turn the direction ring to
the left position. For safety reasons, it is not possible to loosen the joint with this strategy.
7.6.7 Click wrench
Select the Click wrench function if the Power Focus result data base should include a click wrench or a
non-tightening operation in the work process, such as ocular inspections or the filling of fluid containers.
It is possible to configure four independent click wrench operations. A click wrench Pset consists of a
P107 Click wrench no, P113 Final target only. Each P107 Click wrench no. is associated with one digital input.
Activating the digital input indicates to PF that the specified operation has been performed. Use P113 Final
target to set the torque result level for click wrench operations.
1. P112 Final torque min
2. P114 Final torque max
4. P122 Final angle min
5. P124 Final angle max
6. P123 Target angle
7. Acceptance window
