Atlas Copco Power Focus 3000 User Manual

Introduction to Power Focus
9836 3123 01 19 (428)
3.2 PF 3000/3100/3102
The PF 3000 is a control system for Atlas Copco Tensor S and DS tools. PF 3100 is a control system for
Atlas Copco Tensor ST tools (including functionality for S and DS tools). PF 3102 is the control system
for Atlas Copco Tensor SL tools.
Tensor STB tools require a communication kit to work with Power Focus 3100. The kit
consists of a serial port adapter (access point); cable connector (supplies the serial port
adapter with power).
Two different hardware units are available, Graph and Compact.
PF 3000 Compact offers minimum hardware expenditure and is easily stackable for multiple tool
configurations. PF 3000 Graph models offer full stand-alone programming via an integrated keyboard and
large display located on the front panel of the unit. PF Graph can also be used as a terminal for one or
more PF Compact controllers.

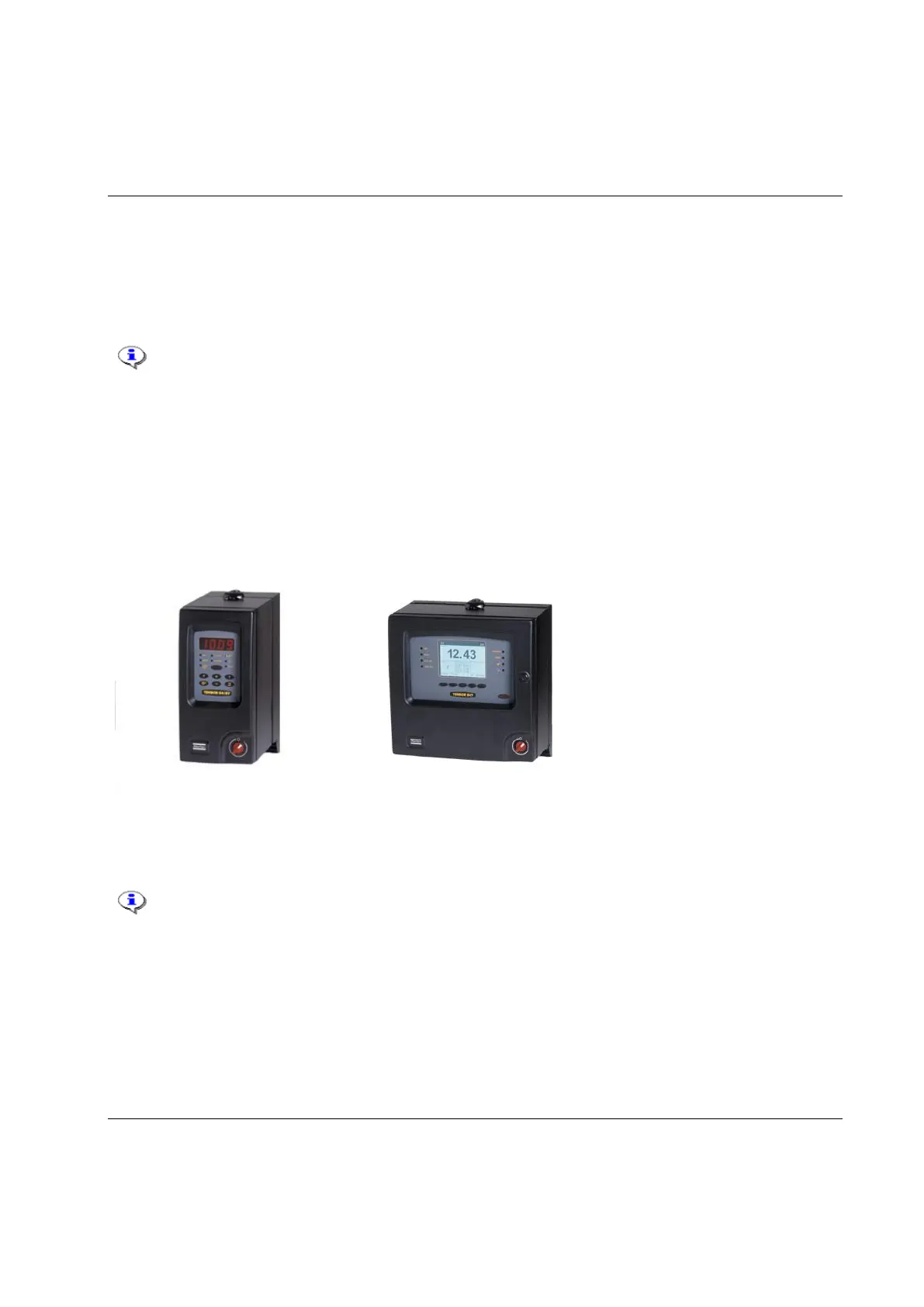

PF 3000 Compact
PF 3000 Graph
For technical data, dimensions drawings, connections and spare part list, see Product
Information for PF3000 (9836 2156 01).
For PF 3102 controllers (SL tool drivers) only the Compact model is available.
