3.1 PF 4000
PF 4000 is a new generation of control systems suitable for most Tensor tools. Unlike its predecessor,
PF 3100, PF 4000 is available in one model with two versions (Compact and Graph) that can handle all
torque levels.
Advanced control functions built into Power Focus 4000 prevent the operator from deviating from the
required process. When it receives assembly information, the programmed Job function automatically
selects the correct tightening sequence and parameters. When combined with barcode scanning for
component identification, the Job function offers traceable, zero-fault process control.
The controller is equipped with a USB connector for laptop access. It is located on the front of the unit for
maximum accessibility. Communication is also possible over serial RS232, Ethernet TCP/IP and various
fieldbus types.

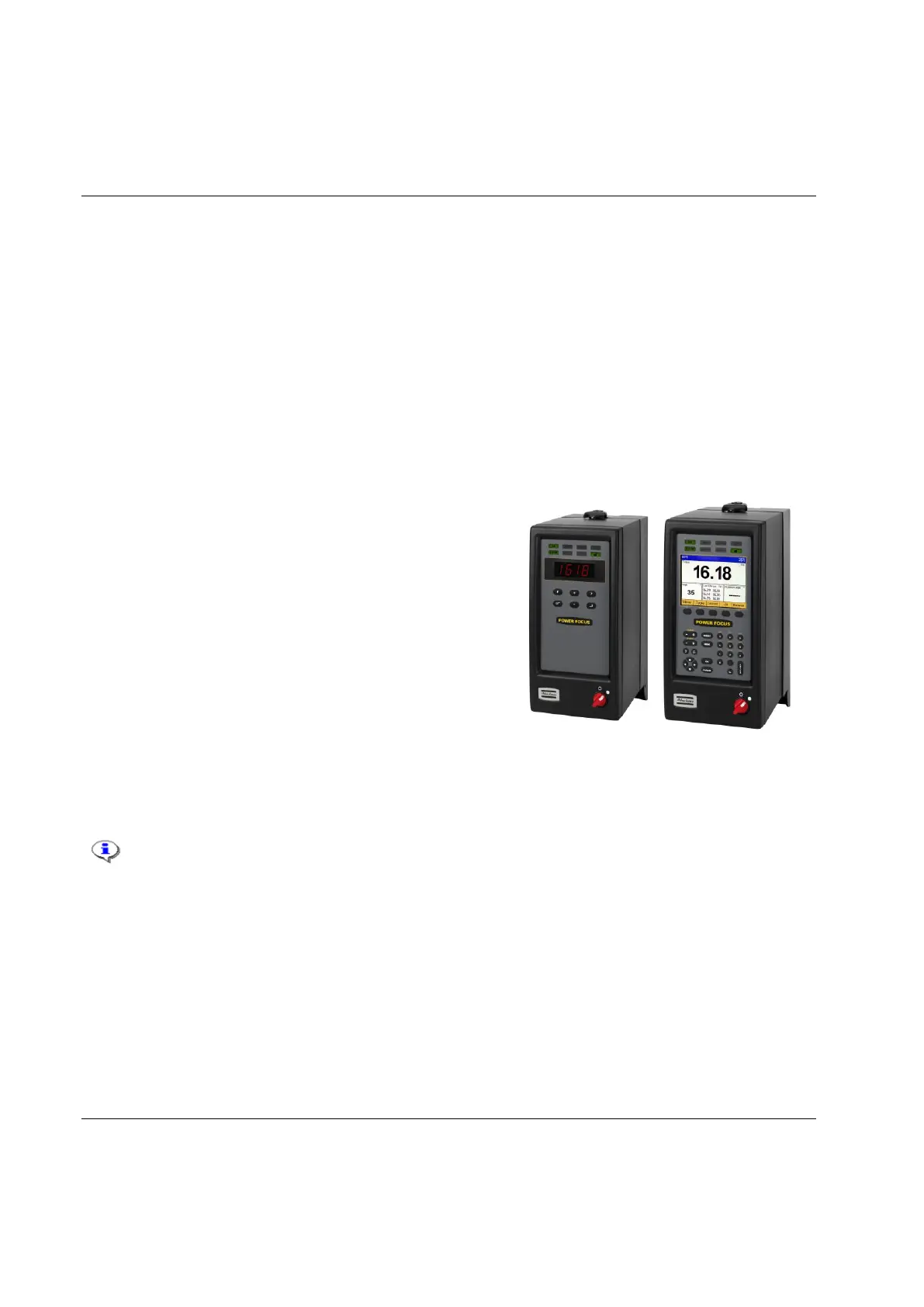

PF 4000 Graph has an easy-to-read LCD color display.
Statistical data is collected, analyzed and presented on the
screen. Changes and trends in the assembly process are
indicated by diagnostics and statistical alarms, such as SPC
monitor charts and capability (Cpk) alarms. Alpha-numeric
keys allow on-unit setup and easy checking of traces and
statistics. PF 4000 Graph model has a very compact design,
and a standardized mounting plate ensures easy installation
at every workstation.
Completing the range, PF 4000 Compact has a basic operator
interface with six-button keyboard and LED display. Pre-
programmed using ToolsTalk PF and with a PC as the
interface, it offers the same functionality as the Graph
model.
For technical data, dimensions drawings, connections and spare parts list,
see Product Information for PF4000 (9836 3113 00)
