Controller
118 (428) 9836 3123 01
Job example

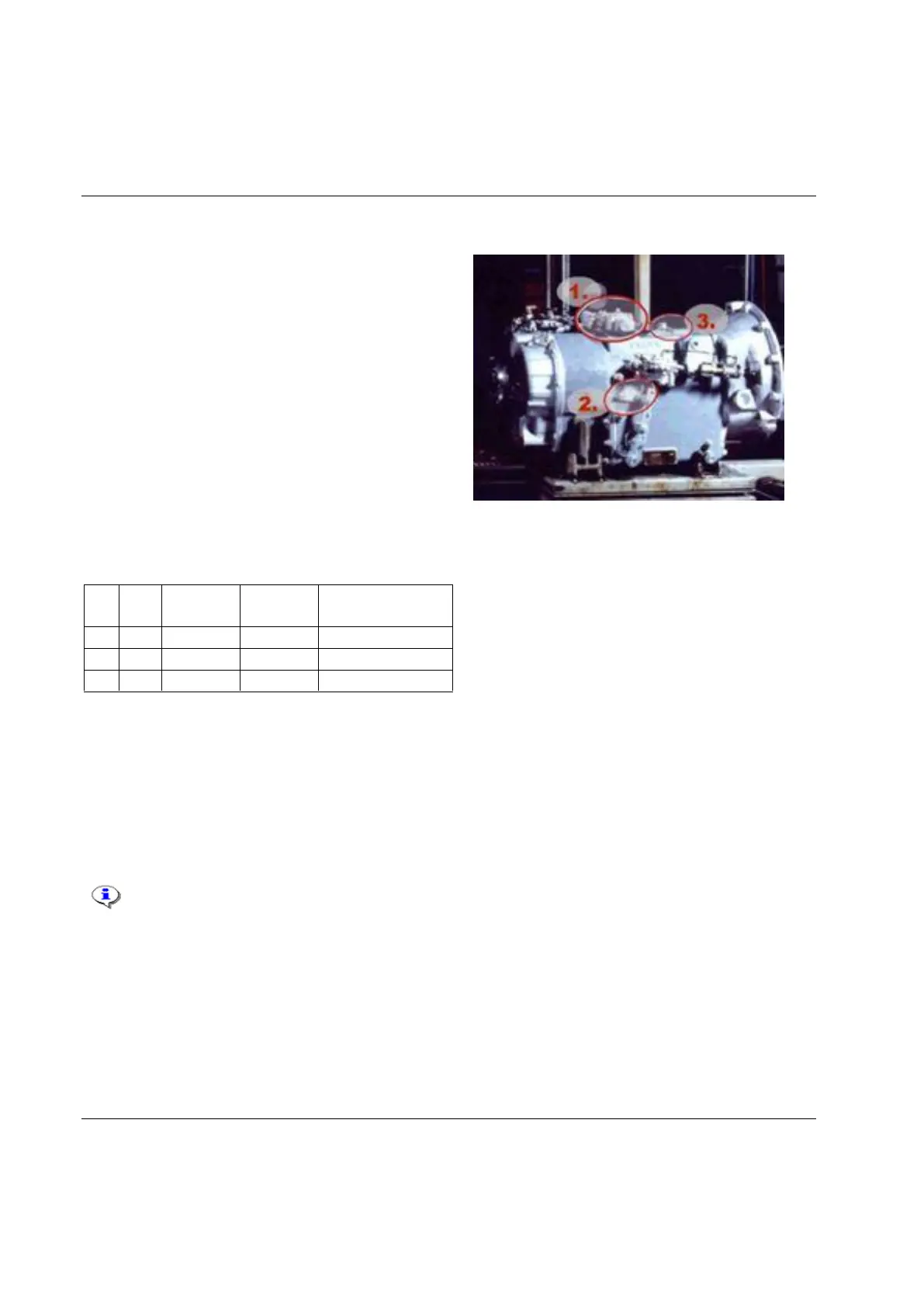

The figure to the right shows an example of an object
with bolts that require different torque values:
Four bolts that require a torque of: 39 Nm
Three bolts that require a torque of: 70 Nm
One bolt that requires a torque of: 88 Nm
For this example three different Psets have to be
created:
Pset1: final target 39 Nm
Pset2: final target 70 Nm
Pset3: final target 88 Nm
By combining the Psets in the above example, the following Job list is created (see table below).
The Job in this example is performed by one single PF. “Batch size” means the number of times the
tightening should be repeated with the same Pset. JOB OK is signaled when all tightenings within the
Job have been performed correctly.
If P153 or M208 Max coherent NOK’s, or P151 or M203 Batch size are used for the Psets or Multistages
included in the Job, these settings are ignored by the Job setting. The same is true for other Job
settings.
If the torque controller is powered off before the completion of the Job,
the Job is lost.
