Tool
148 (428) 9836 3123 01

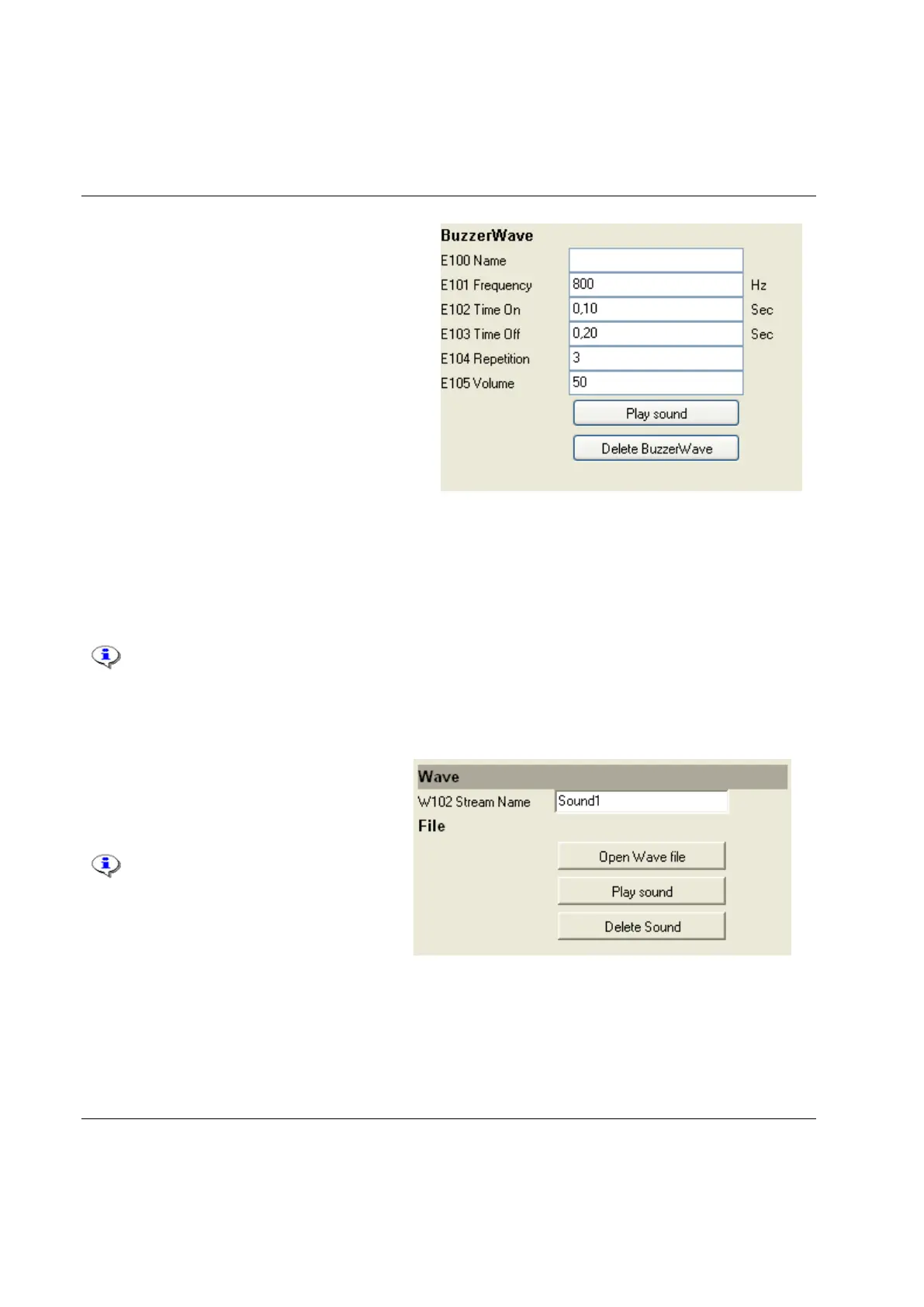

The BuzzerWave window appears.
Give the Buzzer wave an E100 Name
(recommended).
Select E101 Frequency, E102 Time On, E103 Time
Off, E104 Repetition and E105 Volume.
The volume is a relative (in percent) of parameter
T221 Volume, which could be set to high, medium
or low. T221 Volume can be found in the sound
setup window.
After every change in setup, click Store to save
settings into the tool memory.
Click Play sound to listen to the buzzer sound in the tool (if not working, try to click Store).
Click Delete buzzer wave to remove the selected buzzer. Click Store to save settings.
To create a sound (stream) wave, select Add sound in the Sound window. To select an existing Sound
wave, select an ID number from the drop down menu.
It is possible to store up to 10 stream waves in Power Focus.
The Create new sound window appears.
Select a New sound ID and type new sound name (recommended). Click OK.
The Wave window appears.
Click Open wave file and search for the wave
file to use on disk (hard drive/file).
The wav file can use up to 8 bits and
a frequency of up to 8000 Hz. It
provides only mono playing and has
an interval of maximum 3 seconds.
Click Play sound to listen to a sound file. The
sound is played in the tool.
Click Delete sound to remove a sound file.
Click Store to save settings. Close window.
