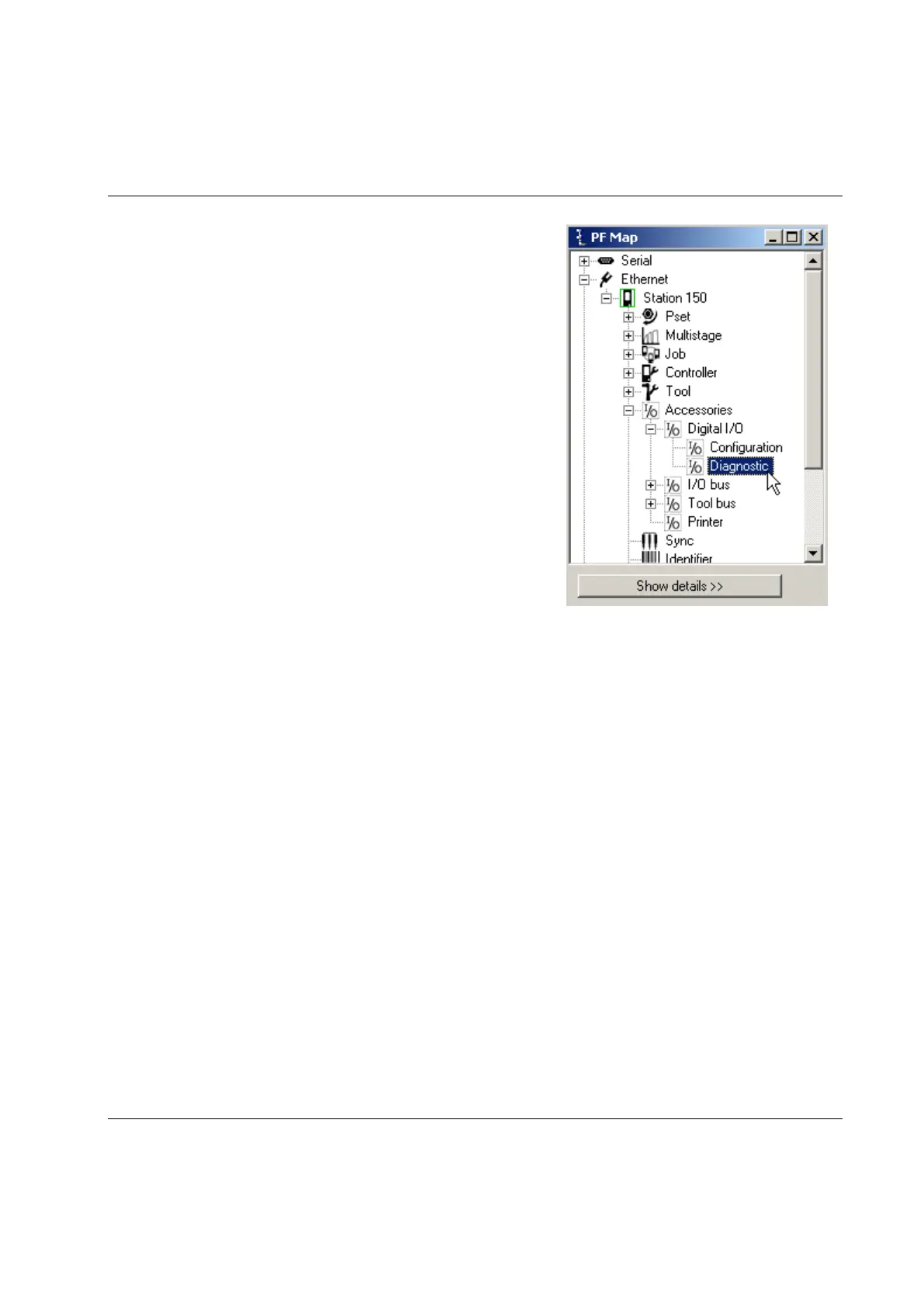

In the PF Map, open Accessories>Digital I/O and double-click
Diagnostic, or right-click Diagnostic and select Open I/O
Diagnostic.
The I/O Diagnostic window appears.
Here the status of all internal and external I/O devices can be viewed.
It is possible to set the status of relays. All configured I/O devices appear on the list of available devices.
This function enables testing of the interaction between PF and different external devices. For instance, it
could be useful when trouble shooting complex systems with one or several PLC units connected to the
controller.
The Read key shows the status of the selected I/O device. The read status key has to be clicked in order
to update this view to reflect changes.
Output test function activates and de-activates relays on a selected I/O device when Set is clicked.
The Restore key restores the relays to reflect the current status of the PF. Click Read to update this view
to reflect changes triggered by other events.
