Accessories

9836 3123 01 171 (428)

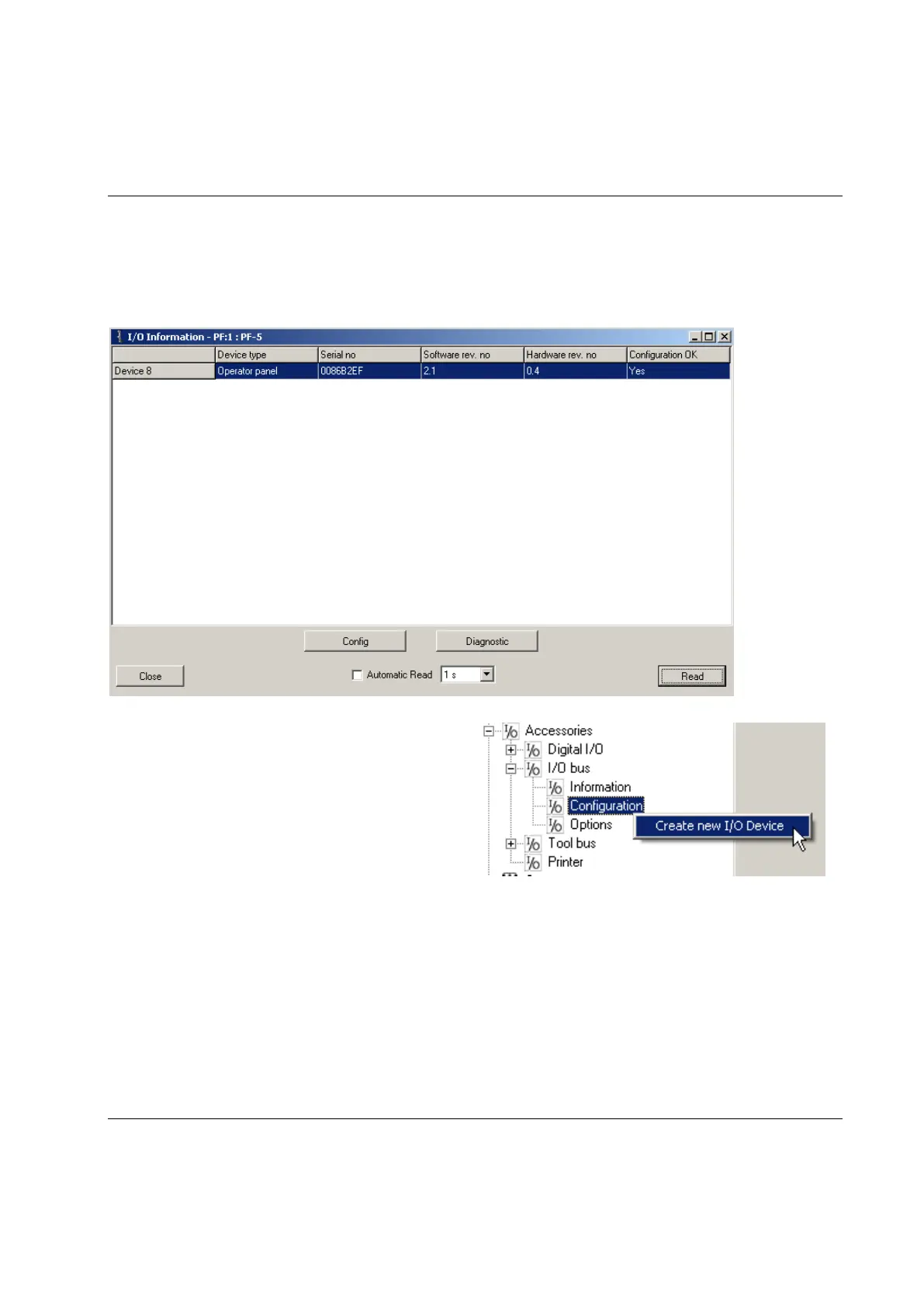

Information for each device on the I/O bus is displayed.

Click Config to configure the selected device.

Click Diagnostic to diagnose the selected device.

In the PF Map, open Accessories>I/O bus. Right-

click Configuration and select Create new I/O Device.

Alternatively, double-click on an existing I/O

Device to open the configuration window.

Contents3
- Table of Contents3
1 General Safety Instructions11
- Work Area11
- Electrical Safety11
- Personal Safety12
- Service13
2 Introduction15
- Revision History15
- Abbreviations15
3 Introduction to Power Focus17
- Pf 3000/3100/310219
- Rbu20
- Toolstalk PF20
- Communication20
- Tensor Tools22
  - Tool Accessories23
- Hardware Accessories25
- Software Accessories27
  - Ats27
  - Acta 400028
4 Connecting Devices29
- PF Connections29
- Rbu30
  - MAC-Address30
  - PF Start-Up Instructions30
- Tool Connection and Start-Up31
- Printer35
- Serial Connection35
  - Serial RS232 #135
  - Serial RS232 #236
- Ethernet TCP/IP36
- Digital Inputs36
- Digital Outputs (Relays)37
- VDC Output38
- I/O Bus38
- Remote Start Connector39
- Main Power Connector40
5 PF User Interface41
- PF Graph41
- PF Compact49
6 Getting Started with Toolstalk PF55
- Installing Toolstalk PF55
- Toolstalk Overview56
- Configuring Toolstalk Settings63
- Connecting a PF68
- Storing Programming on File70
  - Store PF to File71
  - Read PF from File72
- Offline73
  - Configuring a Tool Offline74
7 Pset75
- Create New Pset/Open Pset76
- Autoset77
- Quick Programming78
- Programming Help79
- Programming80
- Control Strategies84
- Tightening Strategies95
- Programming99
- Pset Setup110
- Statistic Programming112
- Running a Pset112
8 Multistage113
- Create New Multistage/Open Multistage114
9 Job117
- Job Concepts117
- Job Configuration119
- Functions in the Job Monitor124
- Unlock the Tool125
10 Controller126
- Information126
- Configuration128
- Network130
  - Cell and Net Configuration132
- COM Ports136
- Display137
- Memory138
- Accessibility141
11 Tool143
- Tool Information143
- Tool Configuration145
- Tool Diagnostic154
  - Sensor Tracking155
  - Transducer Calibration155
- Tool Maintenance157
- Tool Lock Functionality164
12 Accessories167
- Digital I/O167
- I/O Bus170
- Tool Bus175
- Printer178
13 Sync181
- Sync Prerequisites and Limitations182
- Hardware Configuration183
- Sync Configuration184
  - Sync Members Configuration184
  - Sync Reference Configuration185
- Troubleshooting187
14 Identifier189
- Identifier Concepts189
- Identifier Prerequisites and Details190
- Configuration of Identifier Functions192
15 Fieldbus199
- General Setup200
  - Parameters in General Setup201
  - View Fieldbus Information203
- From PF Setup and to PF Setup204
  - Fieldbus Modes205
- Storing Fieldbus Configuration206
- Disable Fieldbus Carried Signals206
- Fieldbus Data Format207
  - Bitmap Select (Endian Mode)207
  - Fieldbus Data Types207
- Fieldbus Selector Configuration212
- Select Pset from Fieldbus and Set Batch Size213
- Fieldbus Information214
16 Logic Configurator245
- Process Description (an Example)246
- Logic Operators and Function Blocks247
  - Logic Gates247
  - Function Blocks248
- Logic Configurator Setup251
  - Simulation256
17 Monitors259
- Result Monitor260
- Job Monitor262
- Operator Monitor263
  - Picture Monitor266
- Identifier Monitor267
- Get All Results268
18 Trace271
- The Trace Window271
19 Statistics275
- Statistic Alarm276
- Trend Deviation Alarm277
- Calculation of UCL and LCL277
- Calculation of Mean Values277
- Calculation Formulas278
- Constants for Calculation of SPC Variables280
20 Quick Reference Guide281
- Tq con282
- Tq Con/Ang Mon286
- Tq Con/Ang con (AND) and Tq Con/Ang con (OR)290
- Ang Con/Tq Mon294
- Reverse Ang298
- Rotate Spindle Forward and Rotate Spindle Reverse299
- Home Position Forward and Reverse300
- DS con301
- Snug Gradient304
21 Digital I/O and Fieldbus Items307
- Digital Output (Relay) and Fieldbus Items from PF307
- Digital Input and Fieldbus Items to PF328
22 Parameter List341
- Pset341
- Multistage353
  - Setup353
  - Multistage Programming354
- Job356
  - Setup356
  - Programming357
- Controller360
- Tool366
- Accessories375
- Sync377
  - Programming377
- Identifier378
  - Identifier Setup378
- Fieldbus379
23 Event Codes383
- Event Code List385
24 Index422
