Identifier
194 (428) 9836 3123 01

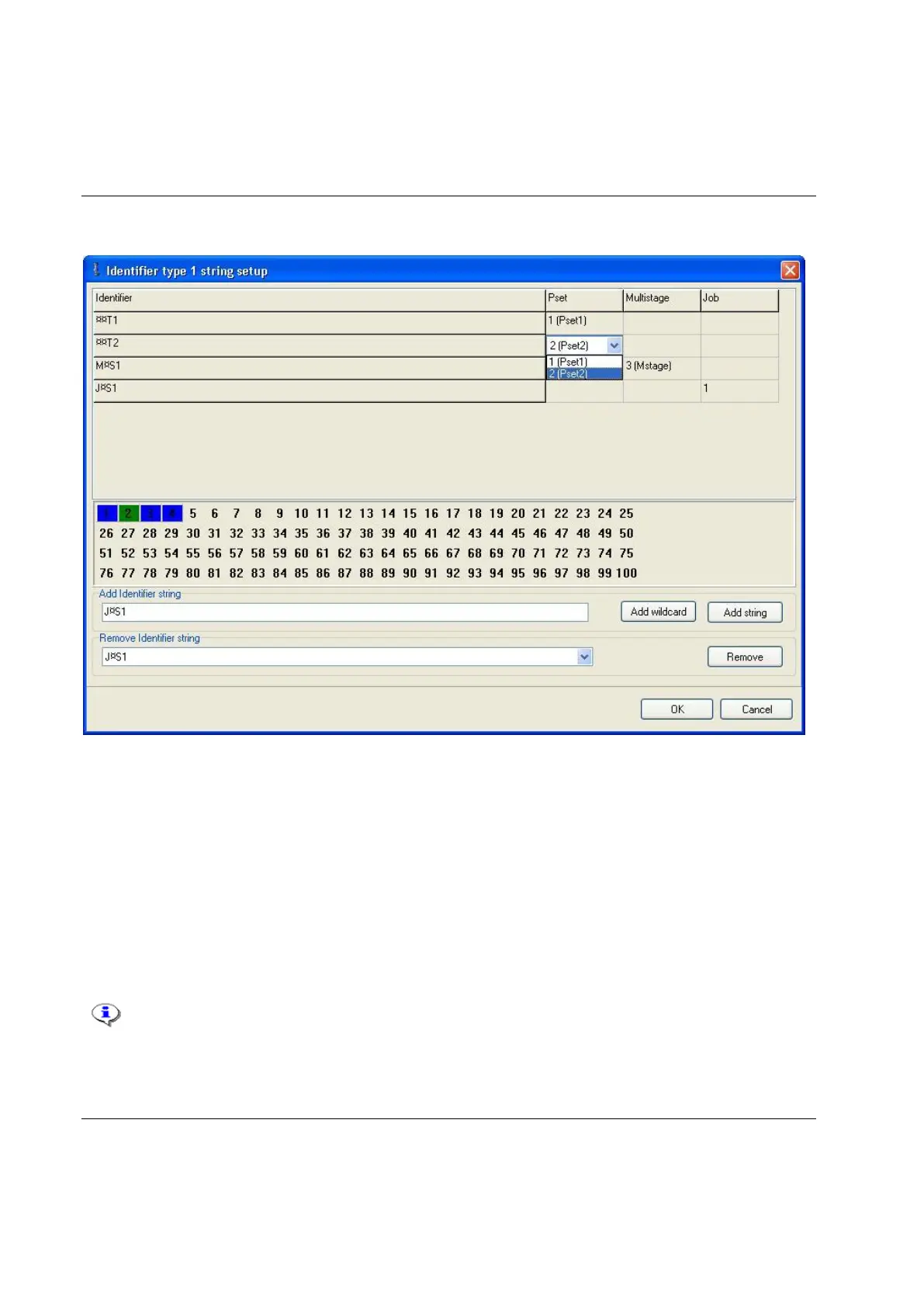

Note: To define the significant string for identifier Type 2-4, click the box and type the string directly.
Write string name in field Add identifier string and click Add
Wildcards can be used in Type 1 strings if the significant positions are different and outside the length of
some Type 1 strings.
Double-click a box to select Pset, Multistage or Job to each string. When finished, click OK.
Click Store to save the settings, or continue with
 Configuring a new type of identifier
 Configuring a work order
 Configuring Result parts.
The STwrench TAG must be programmed in a special way in ToolsTalk in order to work
properly, when using Identifier Input source STwrench tag.. The length must be 3 with 3
significant characters. For example, if the tag number is 1 the configured string must be
"001".
