Atlas Copco Power Focus 3000 User Manual

Fieldbus
9836 3123 01 237 (428)

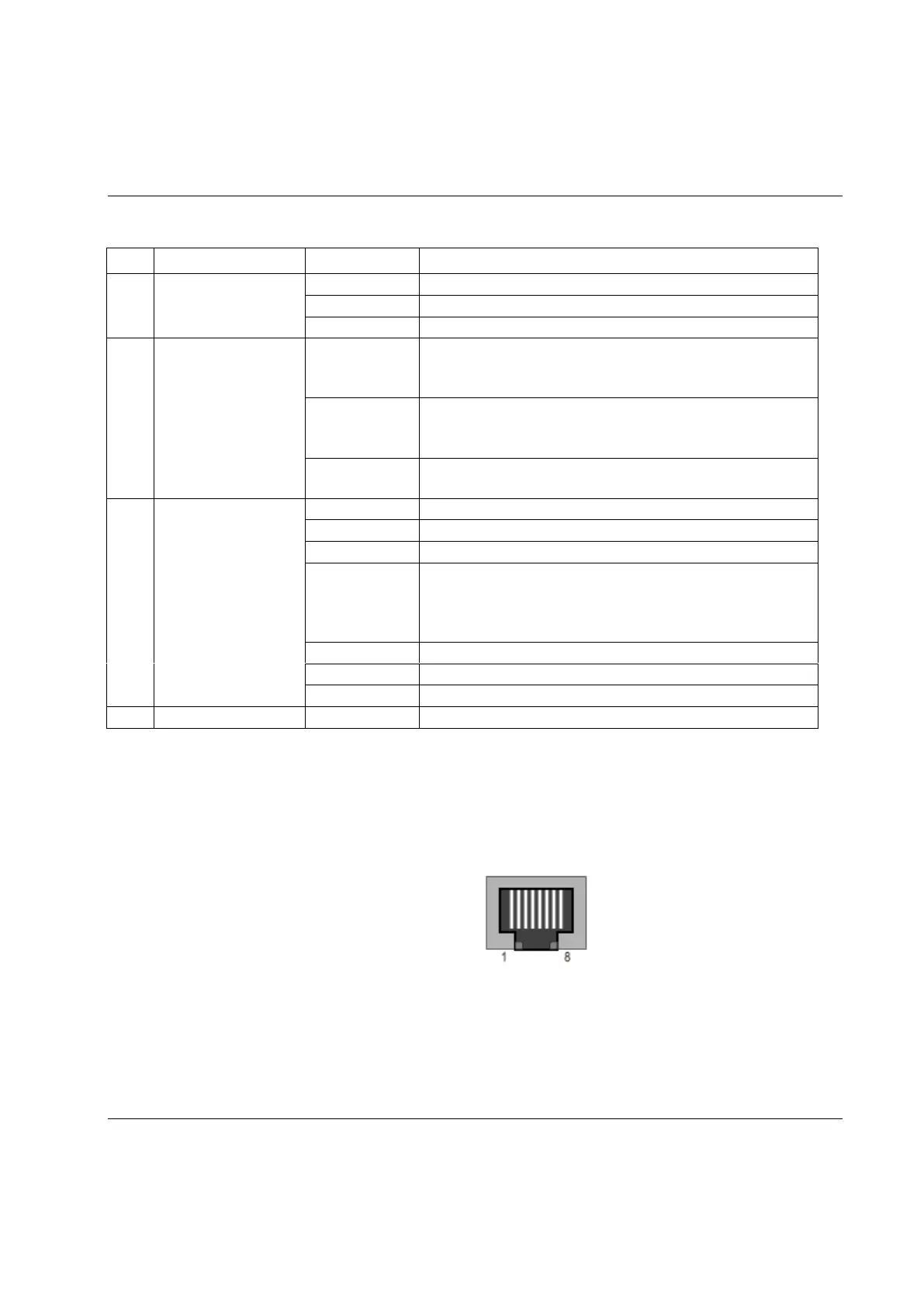

Indicators
Led
Indication
State
Description
1
Link/Activity
Green
Link established
Green flashing
Receiving/Transmitting data
Off
No link or power off
2
Communication Status
Green
Online, Run
Connection with IO Controller established
IO Controller is in Run state
Green, 1 flash
Online, Stop
Connection with IO Controller established
IO Controller in Stop state
Off
Offline
- No connection with IO Controller
3
Module Status
Green
Initialized, no error
Green, 1 flash
Diagnostic data available
Green, 2 flashes
Blink, Used by an engineering tool to identify the fieldbus module
Red, 1 flash
Configuration Error
Too many modules/sub modules
I/O size derived from IO controller configuration is too large
Configuration mismatch (no module, wrong module)
Red, 3 flashes
No device name or no IP address assigned
Red, 4 flashes
Internal error
Off
No power or not initialized
4
-
-
-
GSD
On Profinet, the characteristic of a device is stored in an XML data file. This file, referred to as the “GSD”
– file is used by Profibus configuration tool when setting up the network.
Connector
Connector RJ45 standard Ethernet connector is used.
