Atlas Copco Power Focus 3000 User Manual

Fieldbus
240 (428) 9836 3123 01
LED #
1. Run
2. Error
3. Receive Data
4. Send Data

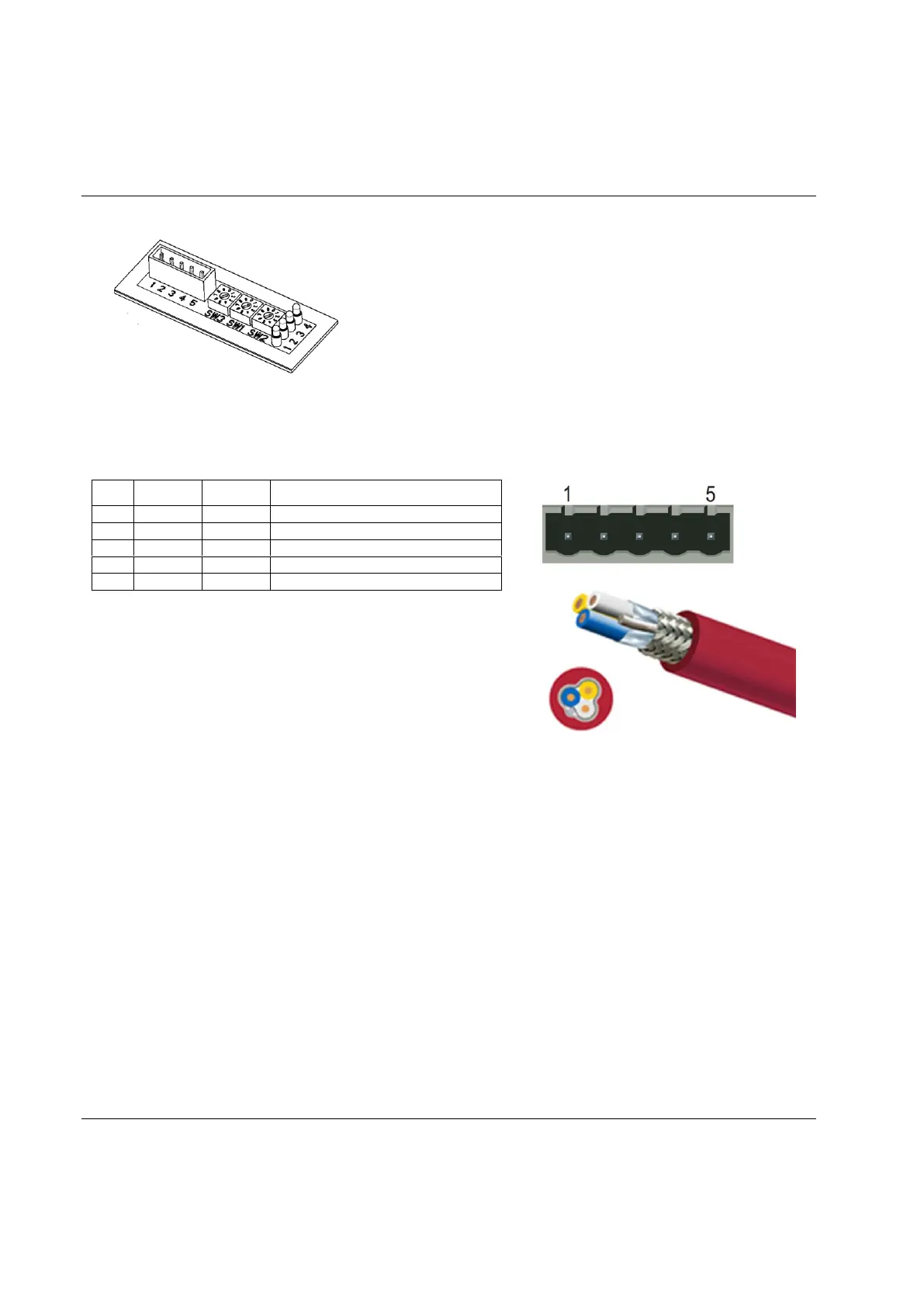

Connectors
The PF standard connector is a 5 pin pluggable screw connector (same as for DeviceNet).
Pin
Color
Code
Signal
1
Blue
DA
Communication line A
2
White
DB
Communication line B
3
Yellow
DG
Digital GND
4
SLD
Shield
5
FG/PE
Frame Ground
Bus termination
When repeater or CC-Link dedicated, high performance 130 Ohm cables are not used connect terminal
resistor (110 Ohm 5% 0,5W) between DA and DB on each edge of the trunk line (CC-Link dedicated 110
Ohm impedance cables should be used).
