Campbell CR1000 User Manual

Section 7. Installation

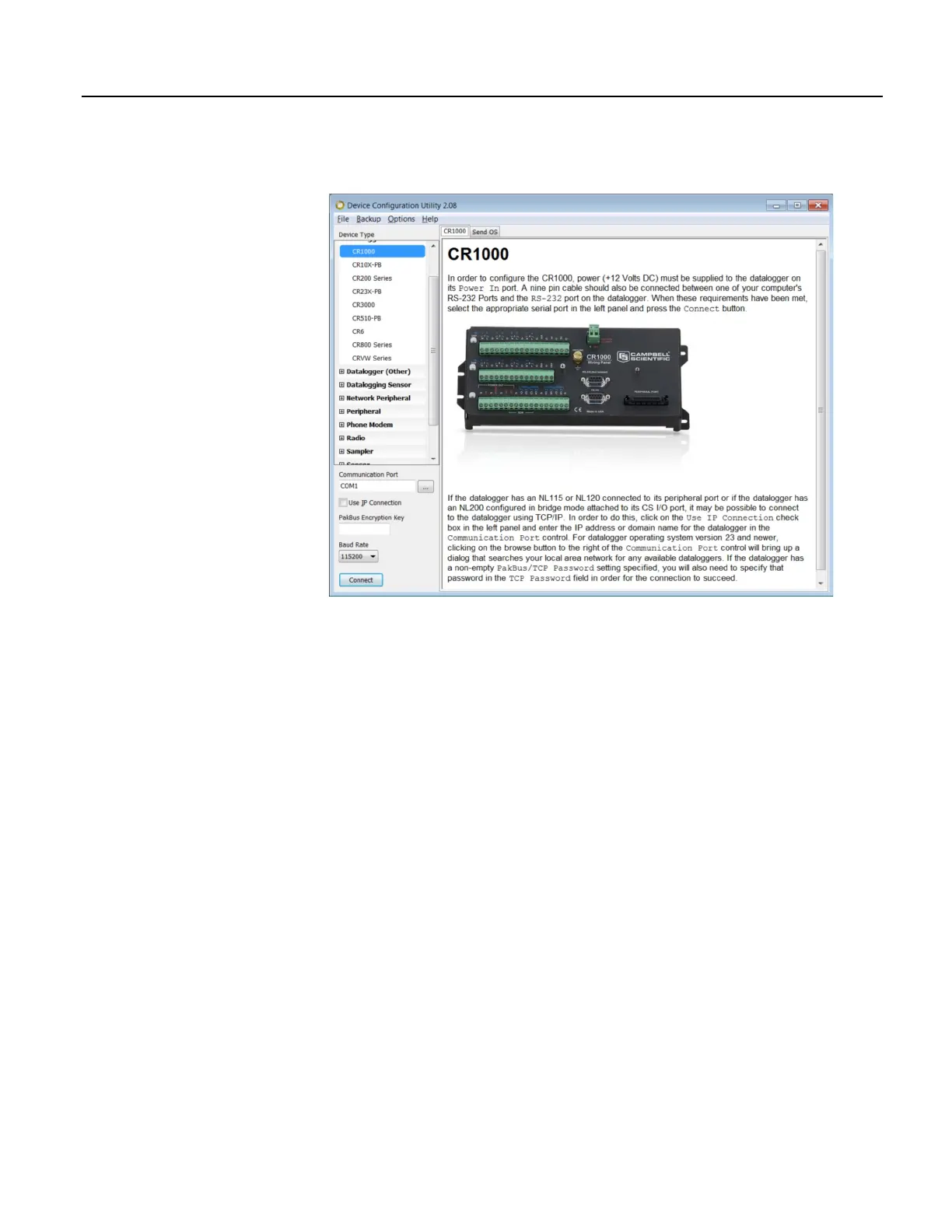

Figure 36. Device Configuration Utility (DevConfig)
7.7.1.2 Network Planner
Network Planner is a drag-and-drop application used in designing PakBus
datalogger networks. You interact with Network Planner through a drawing
canvas upon which are placed PC and datalogger nodes. Links representing
various telecommunication options are drawn between nodes. Activities to take
place between the nodes are specified. Network Planner automatically specifies
settings for individual devices and creates configuring XML files to download to
each device through DevConfig
(p. 111).
112

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
