Campbell CR1000 User Manual

Section 8. Operation
Table 103. PakBus-LAN Example Datalogger-Communication Settings
Software→ Device Configuration Utility (DevConfig)
Tab→
Deployment
Sub-Tab→
Datalogger ComPort Settings
Advanced
Setting→
PakBus Adr COM1 COM2
Is Router
Sub-Setting→
Baud Rate
Neighbors
1
Baud Rate
Neighbors
1
Datalogger ↓ Begin: End: Begin: End:
CR1000_1 1 115.2K Fixed 2 2 115.2K Fixed 3 4
Yes
CR1000_2 2 115.2K Fixed 1 1 Disabled
No
CR1000_3 3 115.2K Fixed 1 1 115.2K Fixed 4 4
Yes
CR1000_4 4 115.2K Fixed 3 3 Disabled
No
1
Setup can be simplified by setting all neighbor lists to Begin: 1 End: 4.
8.5.6.3 LoggerNet Setup

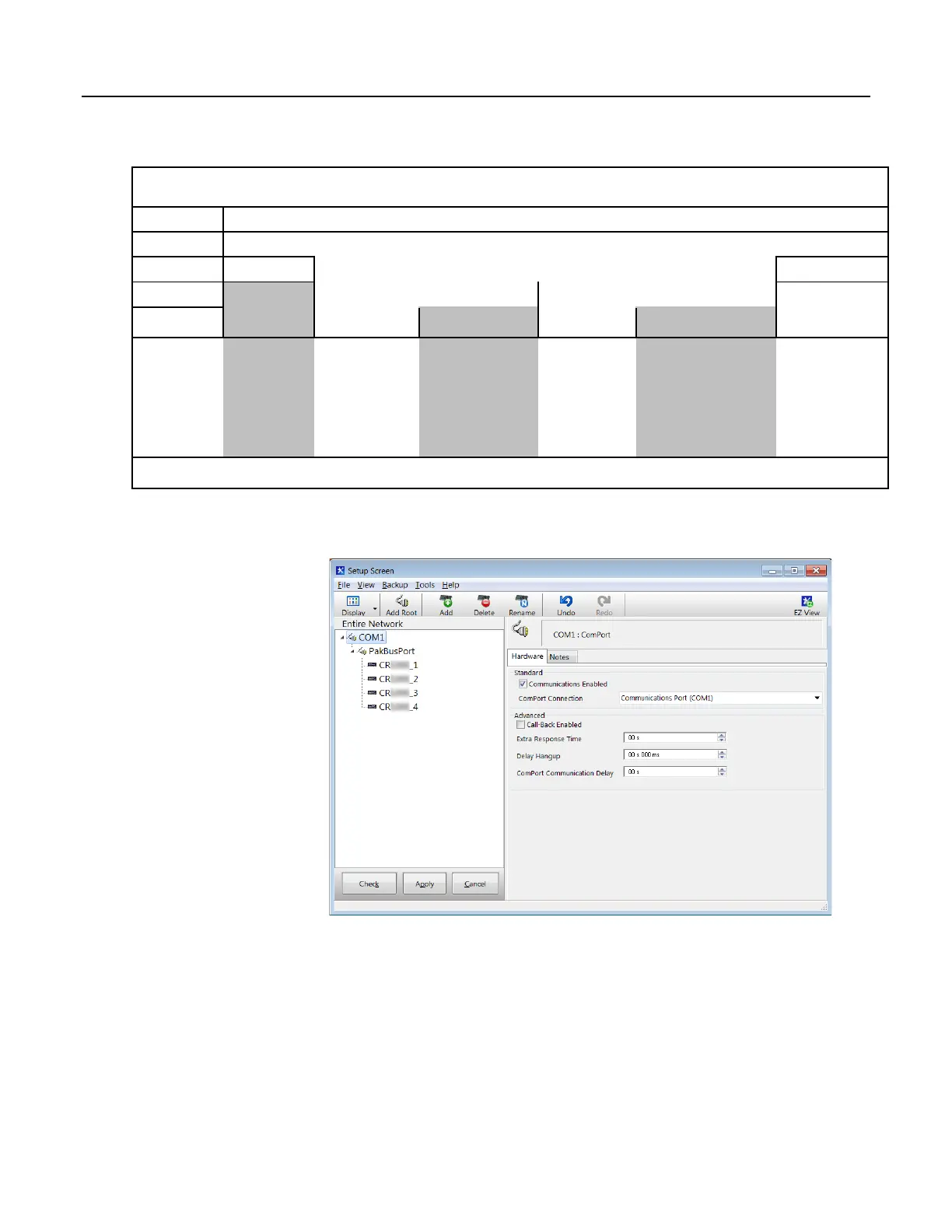

Figure 109. LoggerNet Network-Map Setup: COM port
In LoggerNet Setup, click Add Root and add a ComPort. Then Add a
PakBusPort, and (4) CR1000 dataloggers to the device map as shown in figure
LoggerNet Device-Map Setup
(p. 403).
403

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
