Campbell CR1000 User Manual

Section 8. Operation

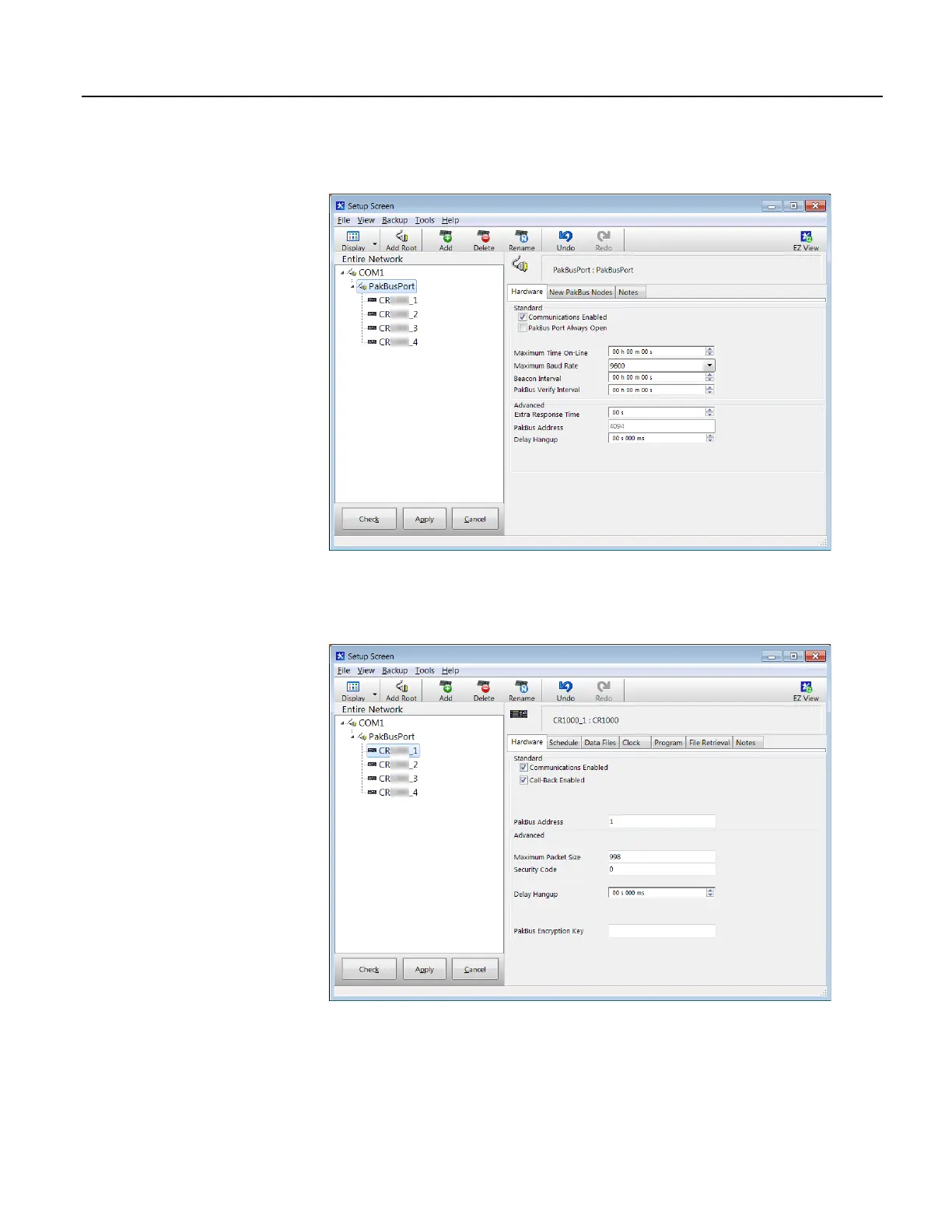

Figure 110. LoggerNet Network-Map Setup: PakBusPort
As shown in figure LoggerNet Device Map Setup: PakBusPort (p. 404), set the
PakBusPort maximum baud rate to 115200. Leave other settings at the defaults.
Figure 111. LoggerNet Network-Map Setup: Dataloggers
As shown in figure LoggerNet Device-Map Setup: Dataloggers (p. 404), set the
PakBus
®
address for each CR1000 as listed in table PakBus-LAN Example
Datalogger-Communication Settings
(p. 402).
404

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
