Campbell CR1000 User Manual

Section 7. Installation

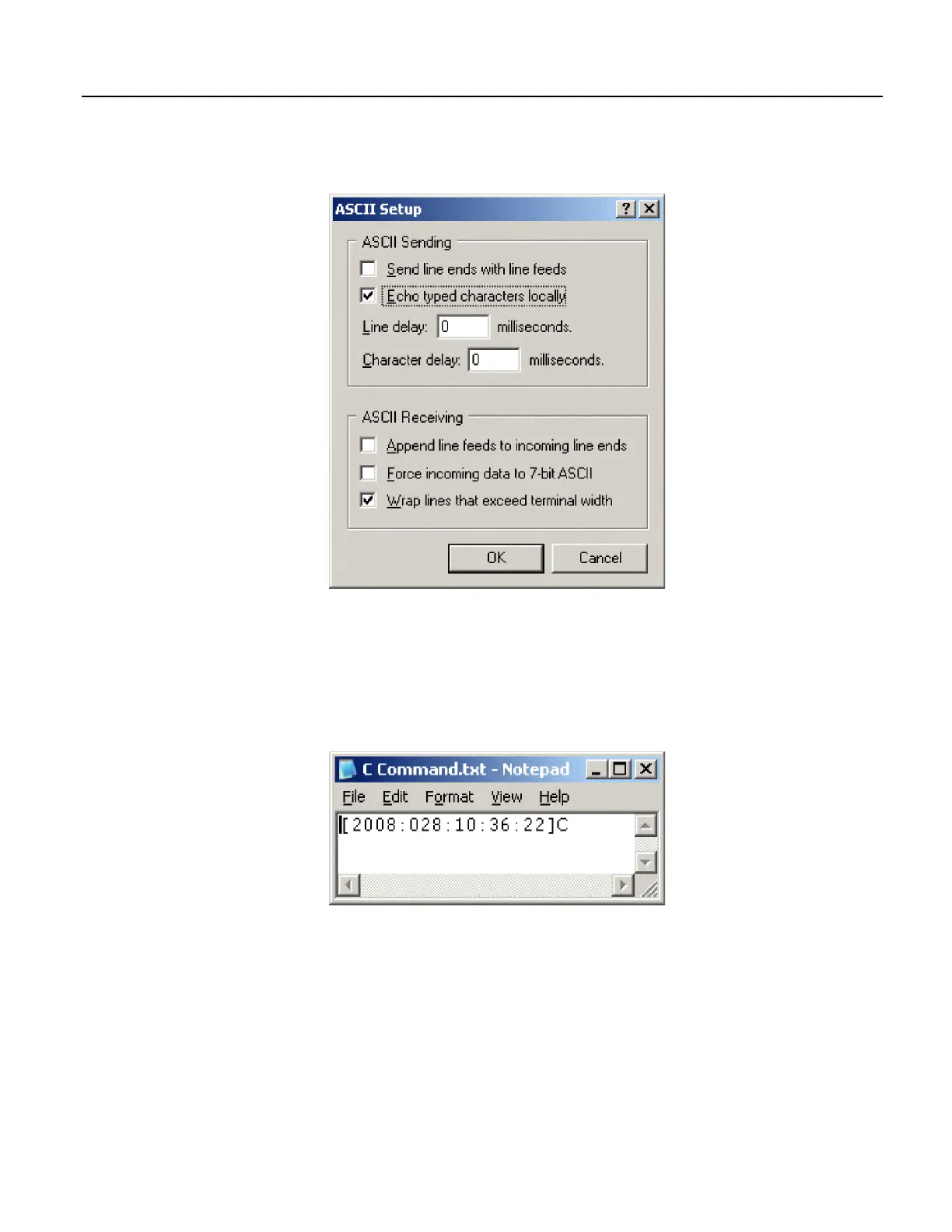

Figure 69. HyperTerminal ASCII Setup
7.9.17.6.2 Create Send-Text File
Create a file from which to send a serial string. The file shown in the figure
HyperTerminal Send Text-File Example
(p. 258) will send the string
[2008:028:10:36:22]C to the CR1000. Use Notepad
®
(Microsoft
®
Windows
®
utility) or some other text editor that will not place hidden characters in the file.
Figure 70. HyperTerminal Send Text-File Example
To send the file, click Transfer | Send Text File | Browse for file, then click OK.
7.9.17.6.3 Create Text-Capture File
Figure HyperTerminal Text-Capture File Example (p. 259) shows a HyperTerminal
capture file with some data. The file is empty before use commences.
258

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
