Campbell CR1000 User Manual

Section 8. Operation
8.8.3 File Display

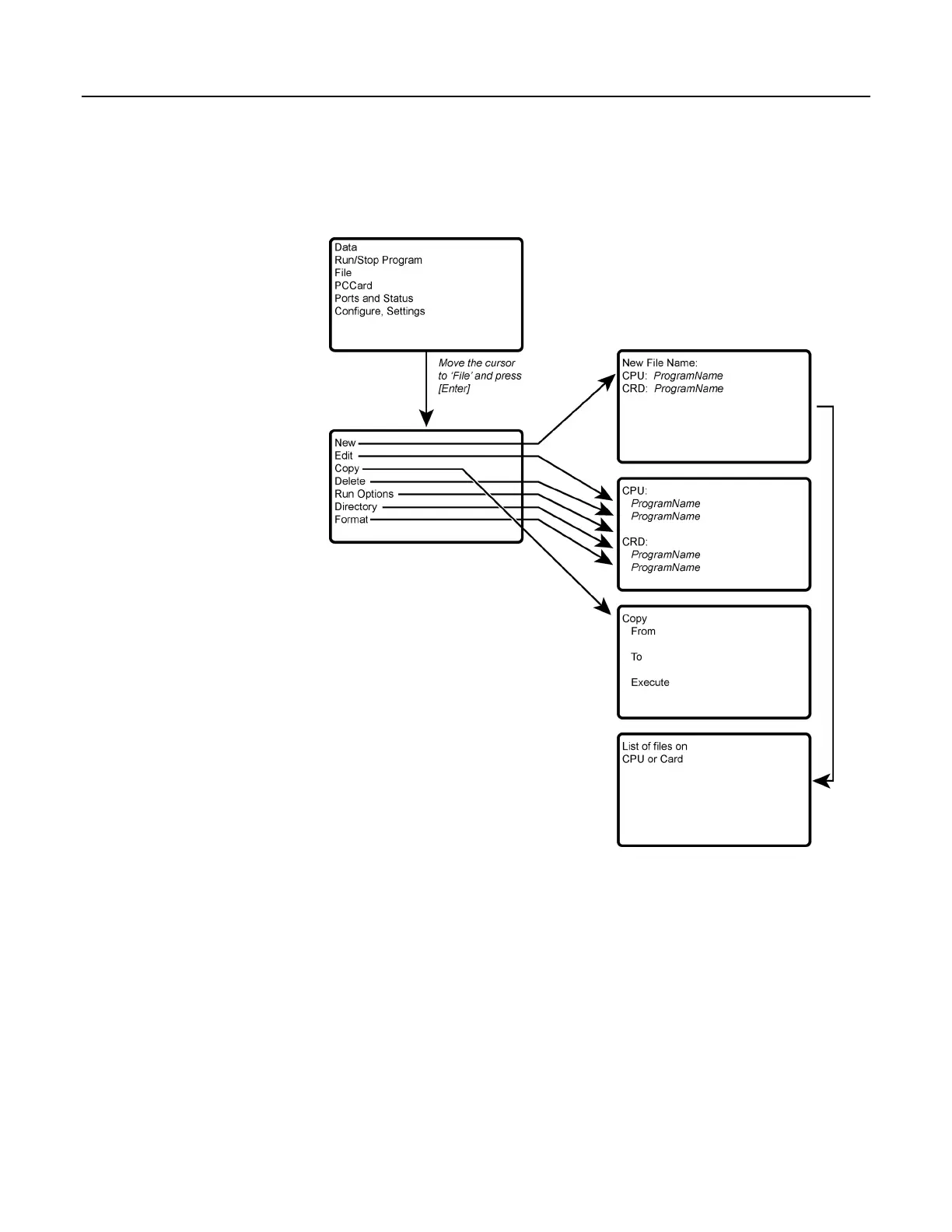

Figure 121. File Display
8.8.3.1 File: Edit
The CRBasic Editor is recommended for writing and editing datalogger programs.
When making minor changes with the CR1000KD Keyboard Display, restart the
program to activate the changes, but be aware that, unless programmed for
otherwise, all variables, etc. will be reset. Remember that the only copy of
changes is in the CR1000 until the program is retrieved using datalogger support
software or removable memory.
459

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
