Section 4. System Quickstart

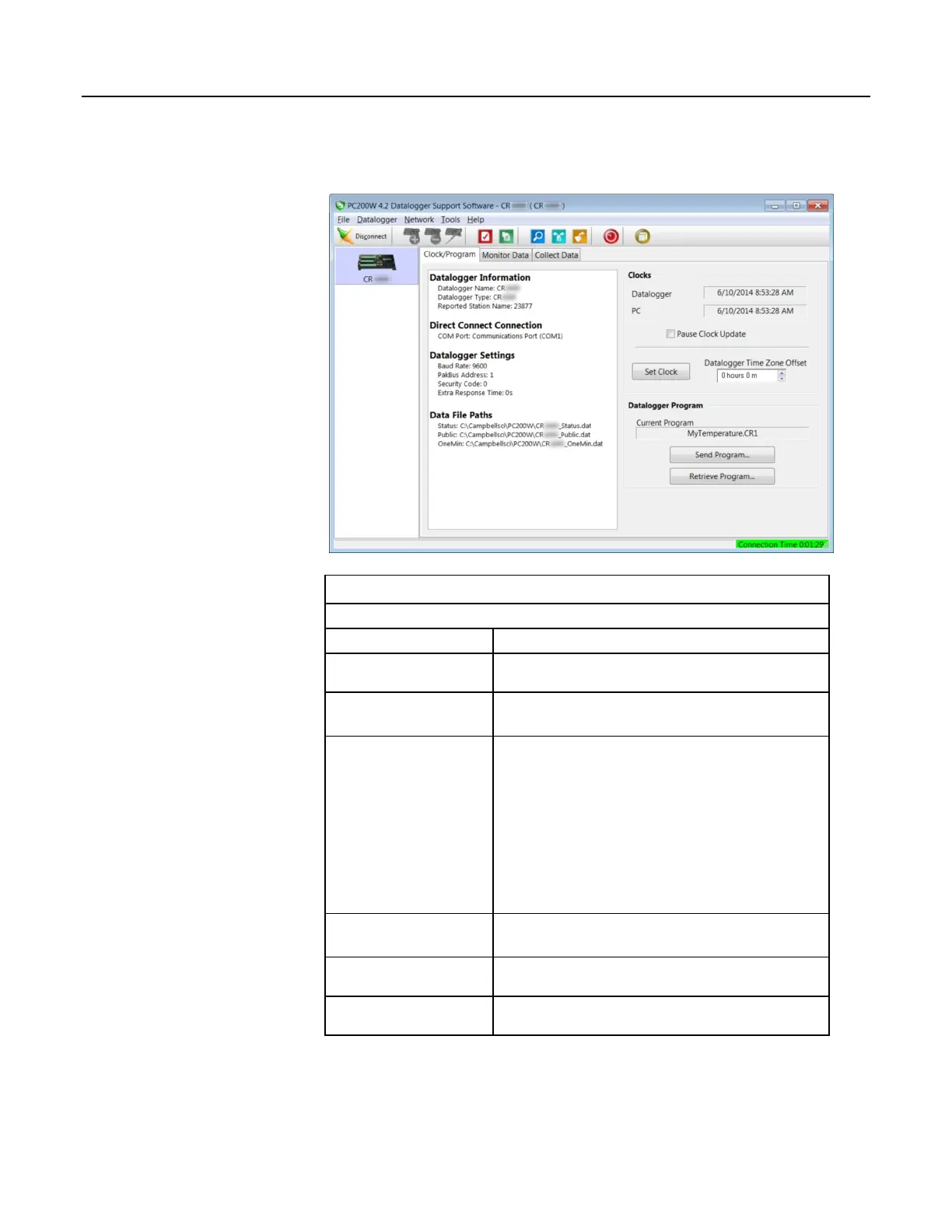

Figure 4. PC200W Main Window
Table 1. PC200W EZSetup Wizard Example Selections
Start the wizard to follow table entries.
Screen Name Information Needed
Introduction
Provides an introduction to the EZSetup Wizard along with
instructions on how to navigate through the wizard.
Datalogger Type and Name
Select the CR1000 from the list box.
Accept the default name of "CR1000."
COM Port Selection
Select the correct PC COM port for the serial connection.
Typically, this will be COM1. Other COM numbers are
possible, especially when using a USB cable.
Leave COM Port Communication Delay at 00 seconds.
Note When using USB serial cables, the COM number may
change if the cable is moved to a different USB port. This will
prevent data transfer between the software and CR1000. Should
this occur, simply move the cable back to the original port. If
this is not possible, close then reopen the PC200W software to
refresh the available COM ports. Click on Edit Datalogger
Setup and change the COM port to the new port number.
Datalogger Settings
Configures how the CR1000 communicates with the PC.
For this tutorial, accept the default settings.
Datalogger Settings -
Security
For this tutorial, Security Code should be set to 0 and PakBus
Encryption Key should be left blank.
Communication Setup
Summary
Provides a summary of settings in previous screens. No changes
are needed for this tutorial. Press Finish to exit the wizard.
