8.5.6.2 LAN Setup
Configure CR1000s before connecting them to the LAN:
1. Start Device Configuration Utility (DevConfig). Click on Device Type: select
CR1000. Follow on-screen instructions to power CR1000s and connect them
to the PC. Close other programs that may be using the PC COM port, such as
LoggerNet, PC400, PC200W, HotSync, etc.
2. Click on the Connect button at the lower left.
3. Set settings using DevConfig as outlined in table PakBus-LAN Example
Datalogger-Communication Settings
(p. 402). Leave unspecified settings at
default values. Example DevConfig screen captures are shown in figure
DevConfig Deployment | Datalogger Tab
(p. 401) through figure DevConfig
Deployment | Advanced Tab
(p. 402). If the CR1000s are not new, upgrading the
operating system or setting factory defaults before working this example is
advised.

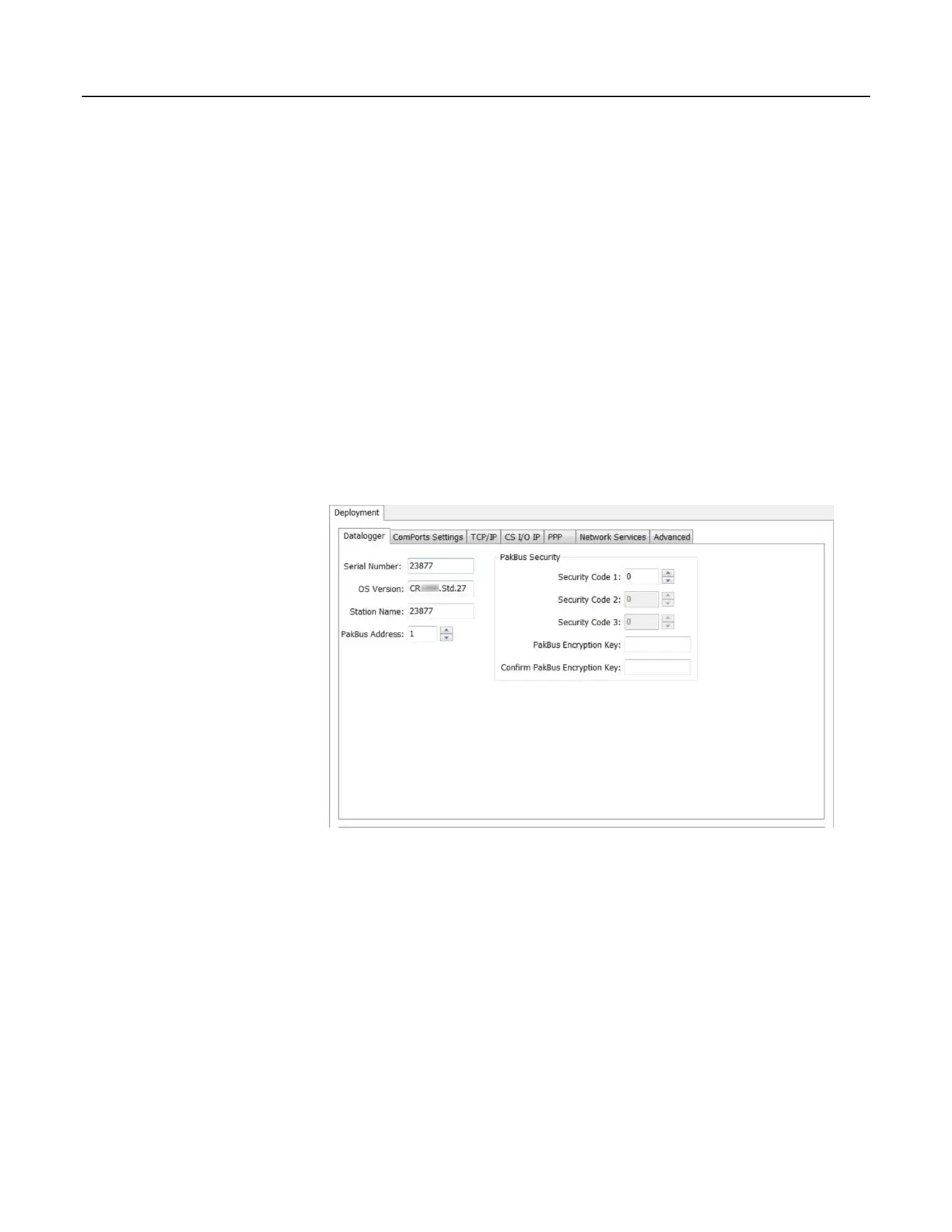

Figure 106. DevConfig Deployment Tab
401
