Campbell CR1000 User Manual

Section 4. System Quickstart

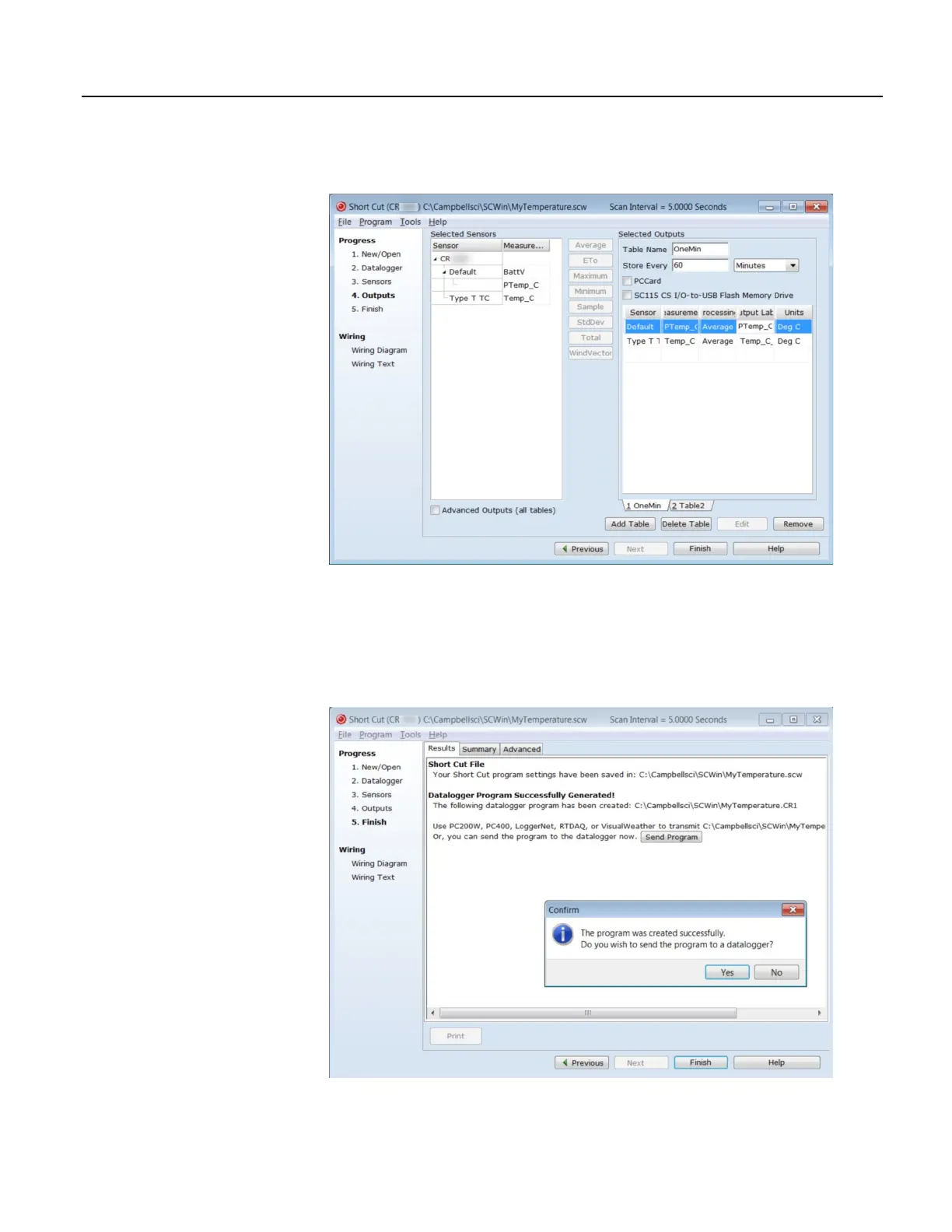

Figure 8. Short Cut Outputs Tab
4.7.4.5 Procedure: (Short Cut Steps 13 to 14)
13. Click Finish to compile the program. Give the program the name
MyTemperature. A summary screen will appear showing the compiler
results. Any errors during compiling will be displayed.
Figure 9. Short Cut Compile Confirmation
54

Campbell CR1000 Specifications

General

Power Requirements	9.6 to 16 VDC
Data Logger Operating System	CRBasic
Memory	4 MB
Analog Inputs	16 single-ended or 8 differential
Analog Input Resolution	13 bits
Analog Input Range	+/-2.5V
Digital I/O	8
Pulse Counters	2
Communication Ports	RS-232
Operating Temperature	-25°C to +50°C
Pulse Channels	4
