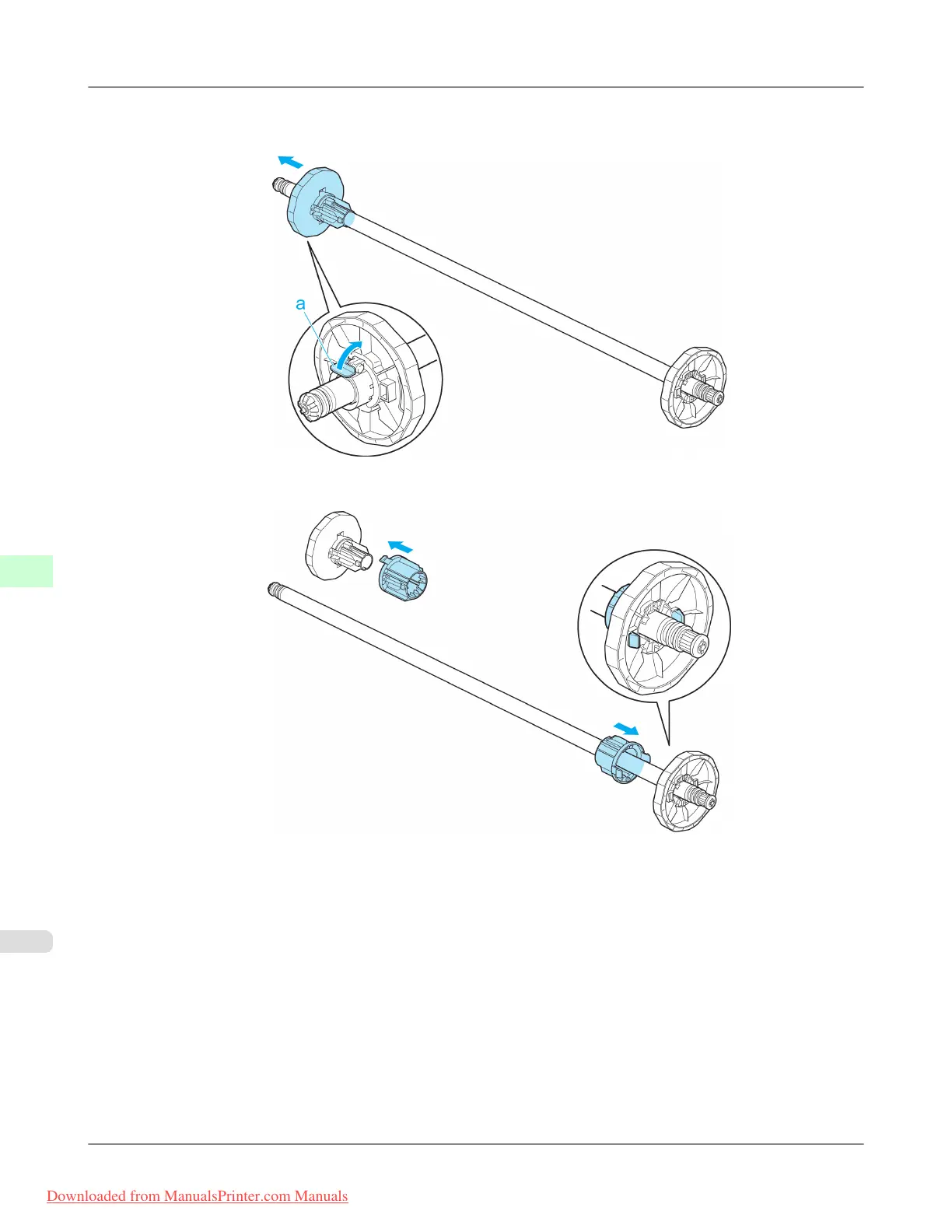

2. Unlock the flange on the left side of the Rewind Spool by lifting the lever (a) from the shaft side. Remove the
flange.
3. When rewinding rolls with 3-inch paper cores, insert the 3-inch Adapter on the flanges at both ends.
Handling Paper
> Media take-up unit >
Loading the Rewind Spool on the Media Take-up Unit iPF8300
