220Service Manual – CS7010™ 30 - Solution System

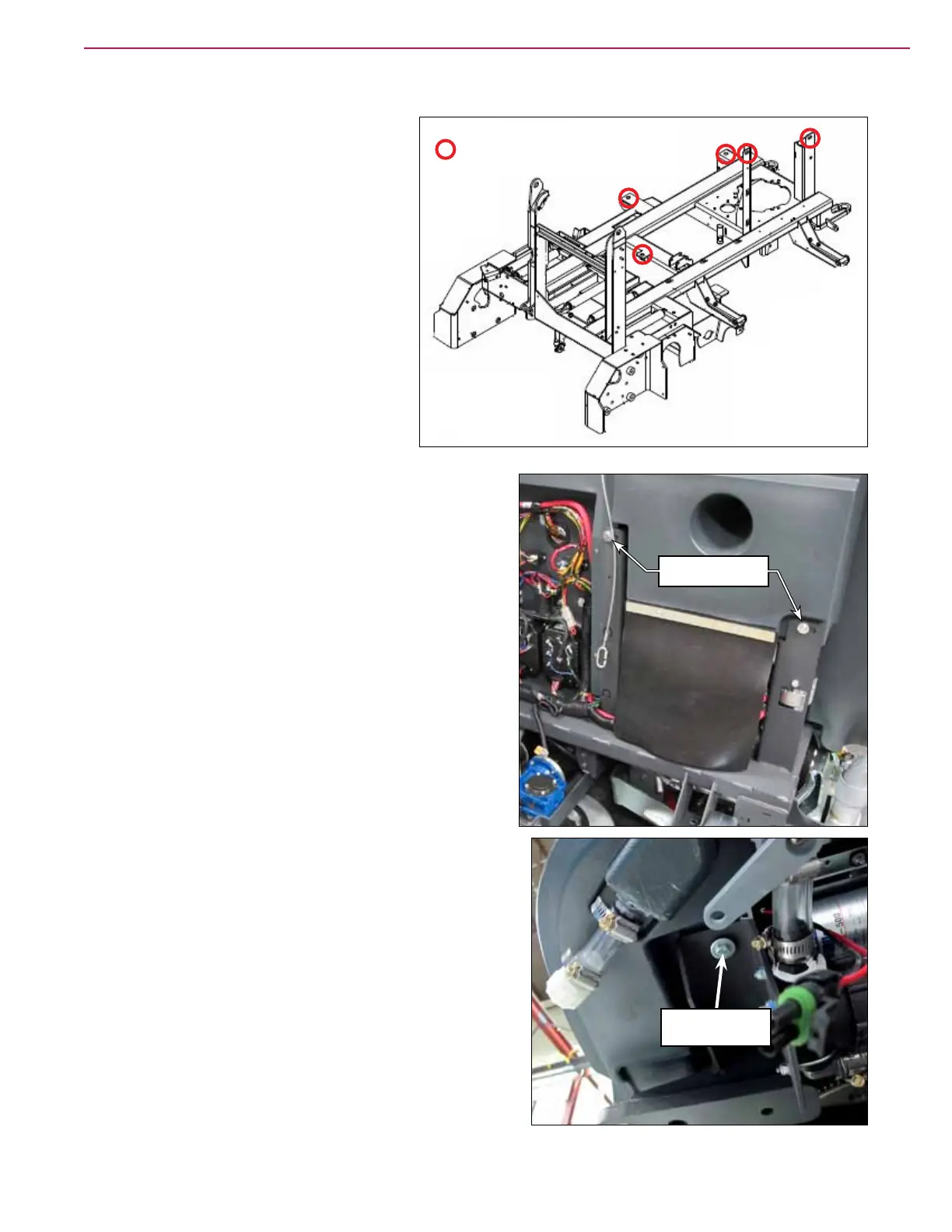

12. Remove the ve mounting screws holding the solution tank to the frame. The mounting screw locations
are shown below.
The three bottom mounting screws
are located underneath the machine
- two on the right side and one in
the center of the frame. The two top
mounting screws are located on the
vertical supports on the left side of the
machine where the drive controller is
mounted.
The two top Solution Tank Mounting Screws are
located on the vertical supports on the left side of the
machine.
The bottom rear Solution Tank Mounting Screw is
located underneath the machine on the right side by the
solution shutoff valve and drain hose.
Solution Tank
Mounting Screw
Locations
=
Solution Tank
Mounting Screws
Solution Tank
Mounting Screw
To Next Page
