302Service Manual – CS7010™ 52 - Hopper System

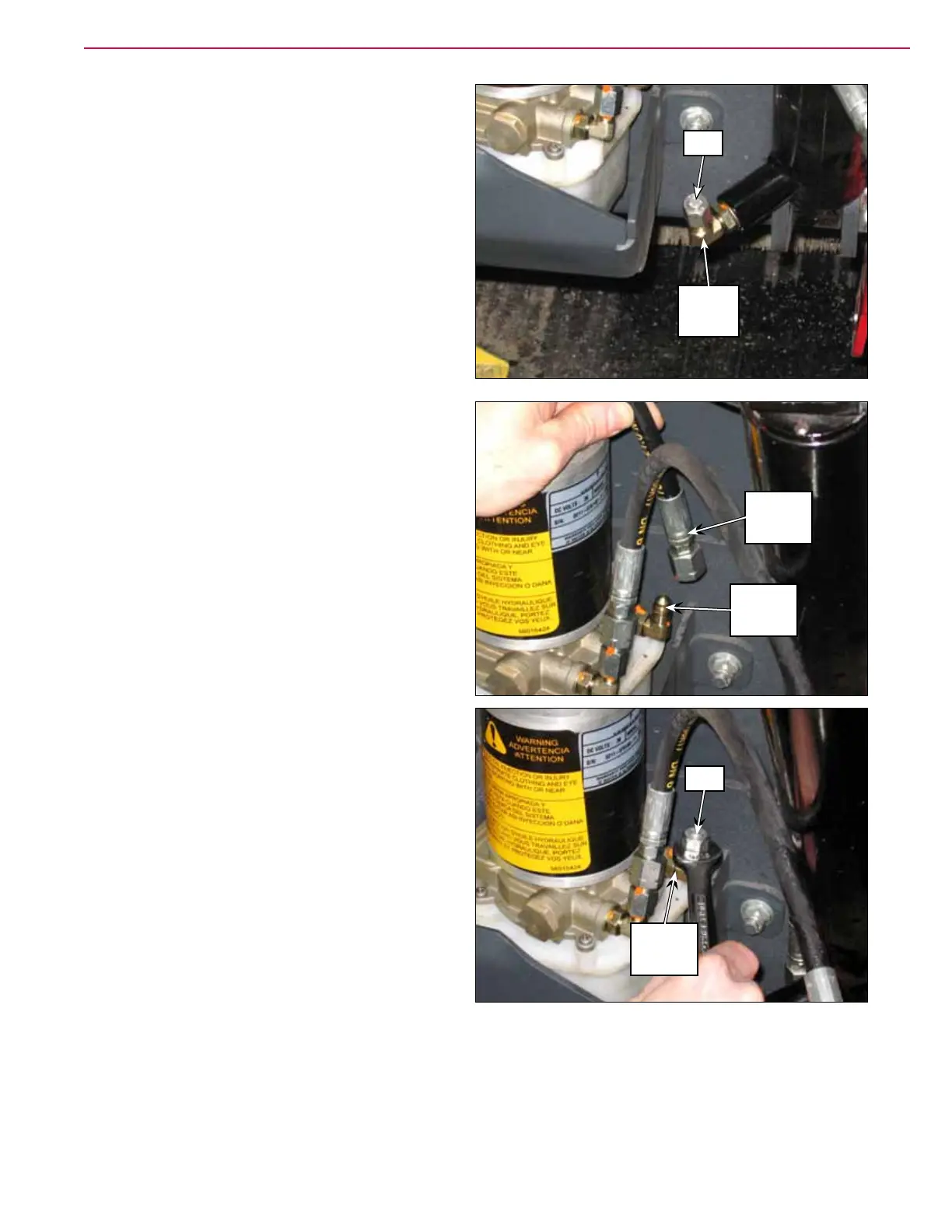

6. Rotate the Lower Cylinder Fitting upward back
to its original upward position and make sure
the Lower Cylinder Fitting nut is tight.
7. Install a Cap into the Lower Cylinder Fitting.
8. Disconnect the “DOWN” Hydraulic Hose from
the “DOWN” Pump Port.
9. Install a Cap on the “DOWN” Pump Port.
Lower
Cylinder
Fitting
Cap
“DOWN”
Hydraulic
Hose
“DOWN”
Pump Port
Cap
“DOWN”
Pump Port
To Next Page
