315Service Manual – CS7010™ 52 - Hopper System

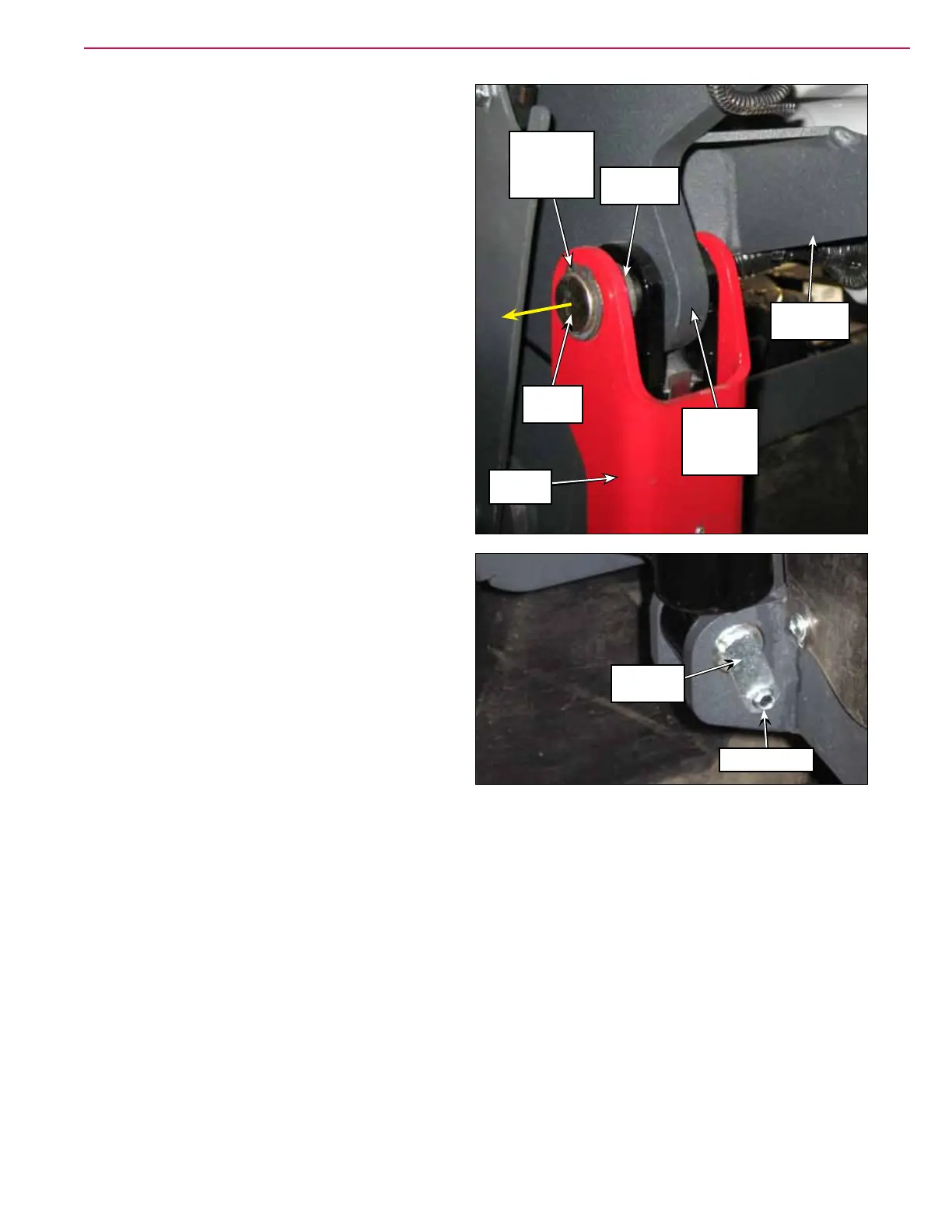

8. Support the hopper lift cylinder and hopper prop
rod. Then remove the Cylinder Pin
9. To install the hopper lift cylinder, place it in
position at the lower pivot point and reinstall
the Hinge Pin Weldment, and the 1/4”-20 Screw.
Remove
Frame
Weldment
Sleeve
Bearing
(inside
weldment)
Flange
Bearing (2)
External
Retaining
Ring (do not
remove)
Cylinder
Pin
Hopper
Prop Rod
Hinge Pin
Weldment
1/4”-20 Screw
To Next Page
