316Service Manual – CS7010™ 52 - Hopper System

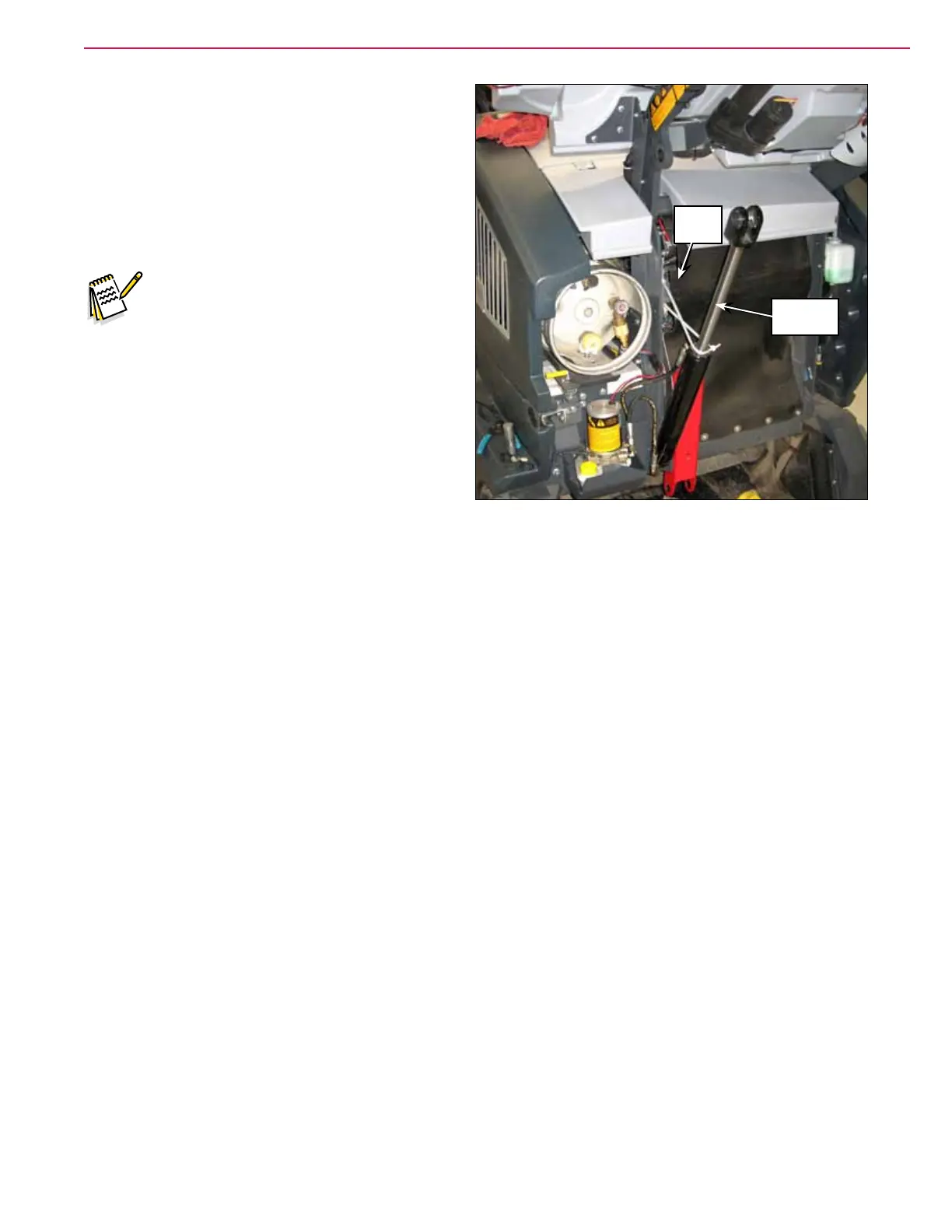

10. Use Wire Ties or other suitable strapping to
support the Hydraulic Cylinder while you work
on the system. (See adjacent photo.)
11. Reinstall elbow ttings and attach the hose from
the lower cylinder port to the up port on the
pump assembly.
12. Fill the reservoir with 10W 30 engine oil.
Note: In the remaining steps it is
important that the oil level always
be maintained above the minimum
mark on the reservoir.
13. Operate the pump by pressing the hopper up
switch on the control panel until the cylinder is
fully extended.
14. Reattach the hose from the upper cylinder to the
down port of the pump assembly.
15. Reattach the upper cylinder yoke along with the
red safety support, ange bearing, cylinder pin and retaining ring.
16. Run the hopper down and then back to the full up position and make sure the oil level is at the
minimum mark on the reservoir.
Wire
Ties
Hydraulic
Cylinder
