82Service Manual – CS7010™ 20 - Wheel System, Traction

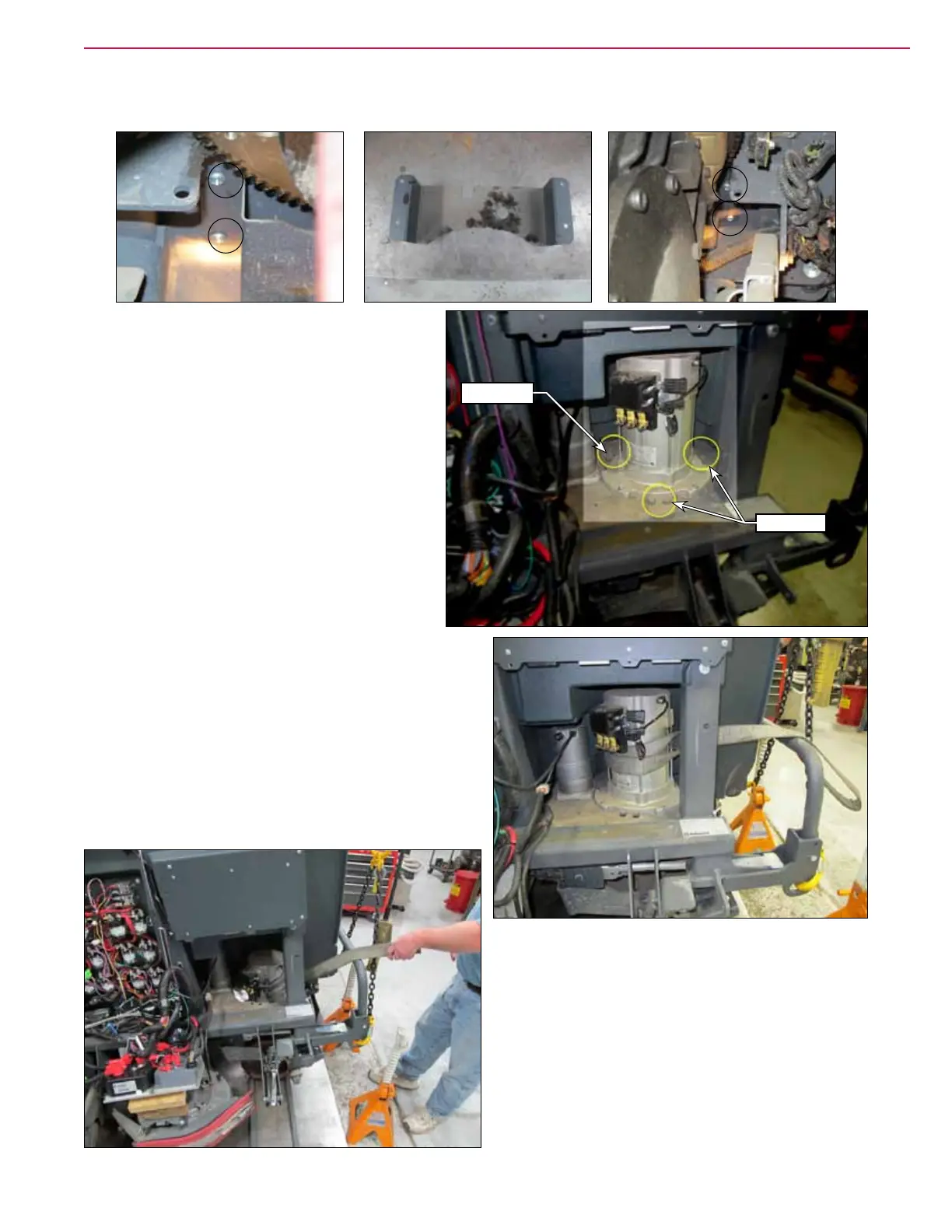

9. Working from under the machine, remove the cover plate that is under the steering drive gear. There
are two screws on each side.
10. Lift the squeegee lift bar and tie it up.
11. Block the drive wheel with wheel chocks on
both sides so that it cannot roll.
12. Remove the 2 inner gear box to frame bolts
and loosen the remaining 4.
13. Lift the machine just enough to take weight
off the gear box and remove the remaining 4
gear box to frame bolts.
14. Attach a strap around the drive motor. You
will use the strap to guide and lower the assembly.
15. Slowly lift the machine up to allow the drive motor
and gear box assembly to come out the bottom
while holding the motor assembly upright using
the lifting strap.
Remove (2)
Loosen (4)
To Next Page
