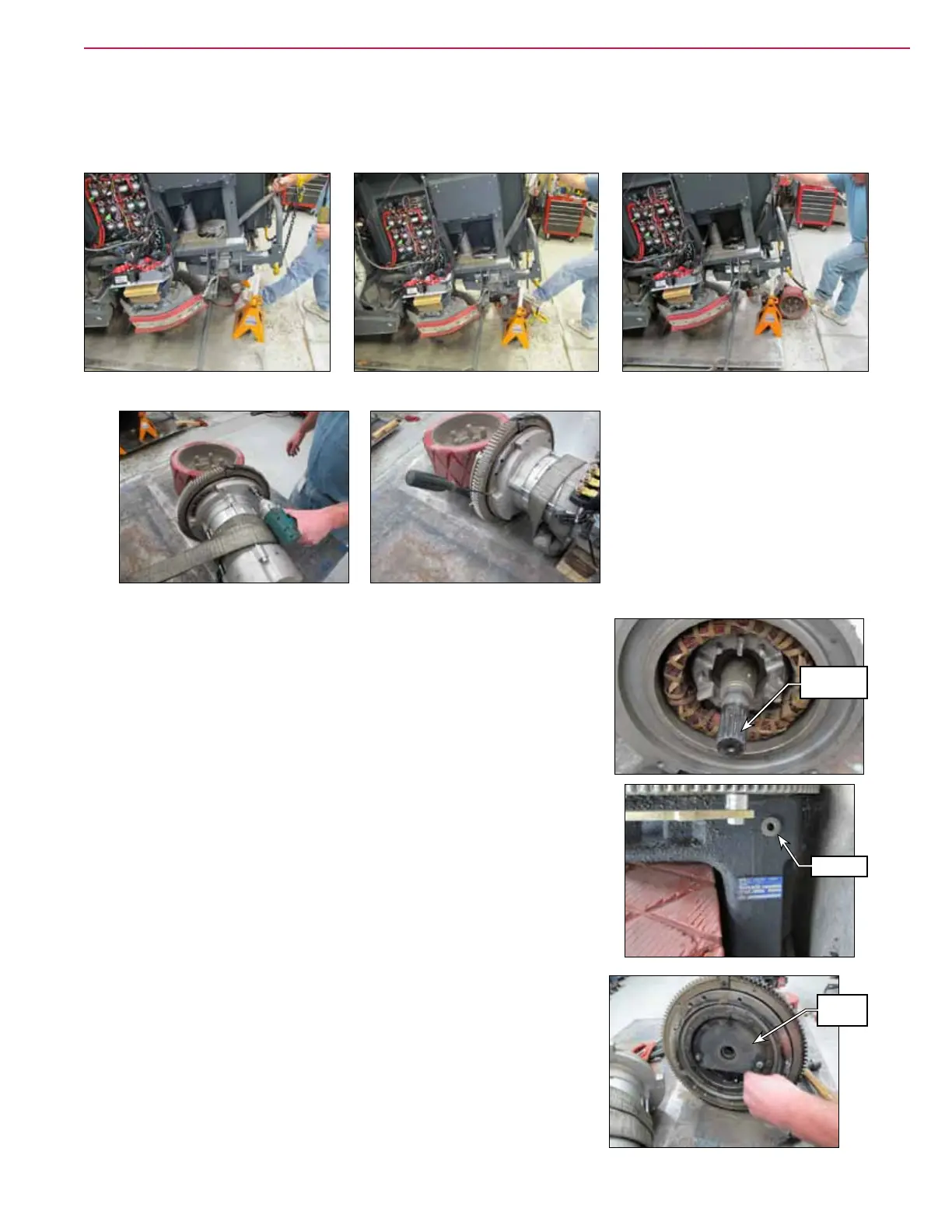

16. Secure the machine safely on jack stands.
17. Hook up a hoist to the lift strap and put a slight tension on the strap. Remove the rear wheel chock and
allow the assembly to roll backward and downward out of the machine controlling the movement by
lowering the hoist and blocking the wheel.
18. To separate the motor from the gear box, remove the attaching screws and pry apart.
Reassembly Notes:
• Be sure to apply anti-seize compound to the motor shaft splines
and gearbox splines.
• If installing a new gear box, be sure to ll it to the bottom of the
ll plug with 80W90 oil when the assembly is installed. Holds
2.2L (.59 Gal) (Part number 56510411).
• If installing a new gear box, be sure to transfer the splash
shield.
• Apply 56510412 (OPEN GEAR LUBE) to front 180° of ring gear
teeth and all around pinion gear teeth.
• Reassemble in reverse order.
Apply
Anti-seize
Fill Plug
Splash
Shield
