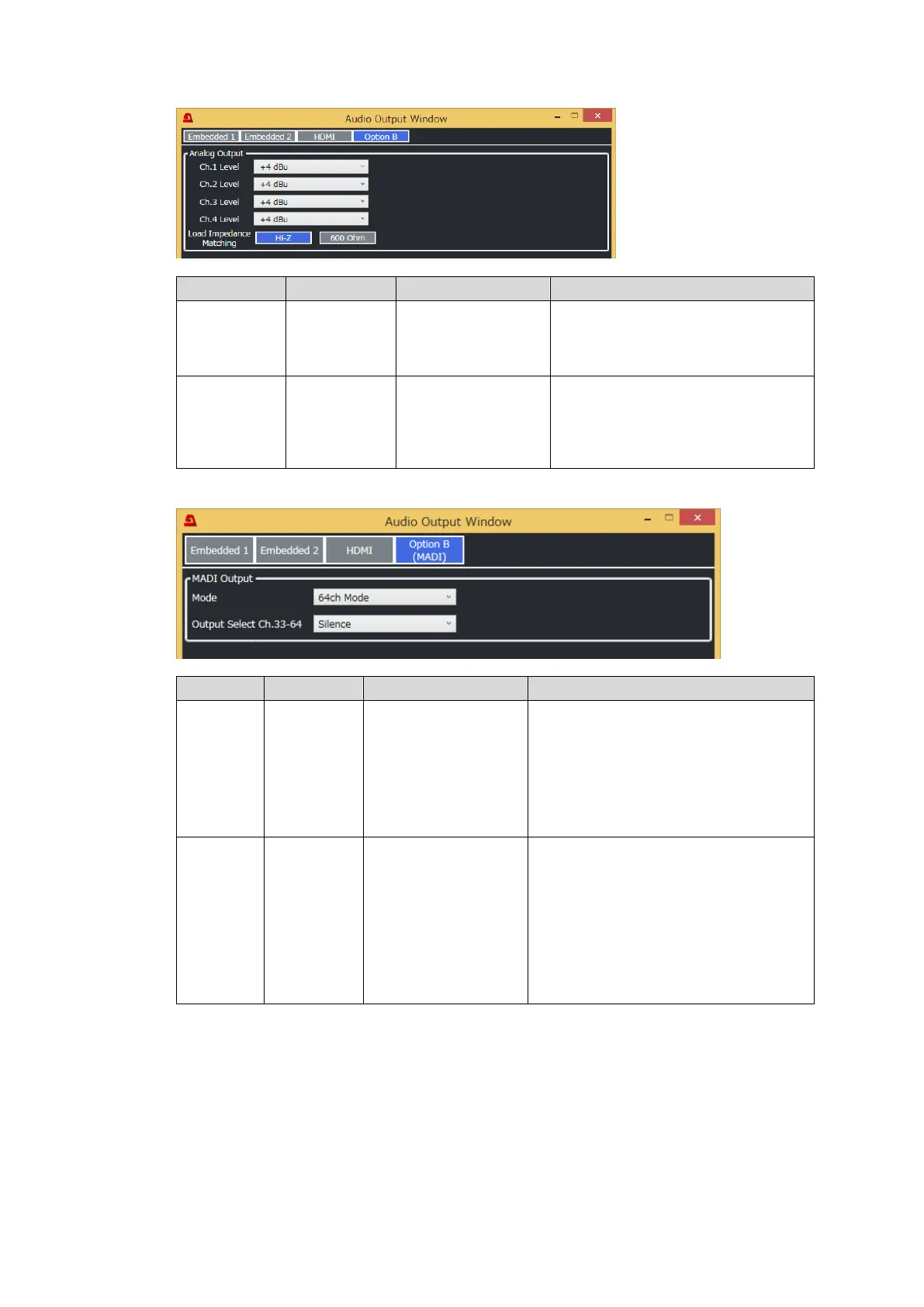

Analog Audio Setting
Item
Default
Setting
Description
Ch.1-4
Level
+4 dBu
-10 dBu
0 dBu
+4 dBu
+8 dBu
Sets the audio level for each analog
output channel.
Load
Impedance
Matching
Hi-Z
Hi-Z
600 Ohm
Sets the input impedance of the
downstream device that receives the
analog audio signals from FA-9600.
FA-9600 adjusts the audio level
according to this setting.
MADI Audio Setting
Item
Default
Setting
Description
Mode
64ch Mode
56ch Mode
64ch Mode
Input Through
Output Disable
Selects an MADI signal output mode.
56ch Mode: 56-channel mode
64ch Mode: 64-channel mode
Input Through: Outputs MADI input
signal without change.
Output Disable: Outputs no MADI
signal.
Output
Select
Ch.33-64
Silence
Silence
MADI Input Ch.1-32
MADI Input Ch.9-40
MADI Input Ch.17-48
MADI Input Ch.25-56
MADI Input Ch.33-64
Selects audio source for Ch 33-64 in
MADI output signal.
Silence: Silent signal
MADI In Ch.xx-xx: MADI input channel
sources whose sampling rate are to be
converted into 48kHz (for
synchronization with other channels).
Their gain and delay cannot be
adjusted.
