FPT CURSOR Series User Manual

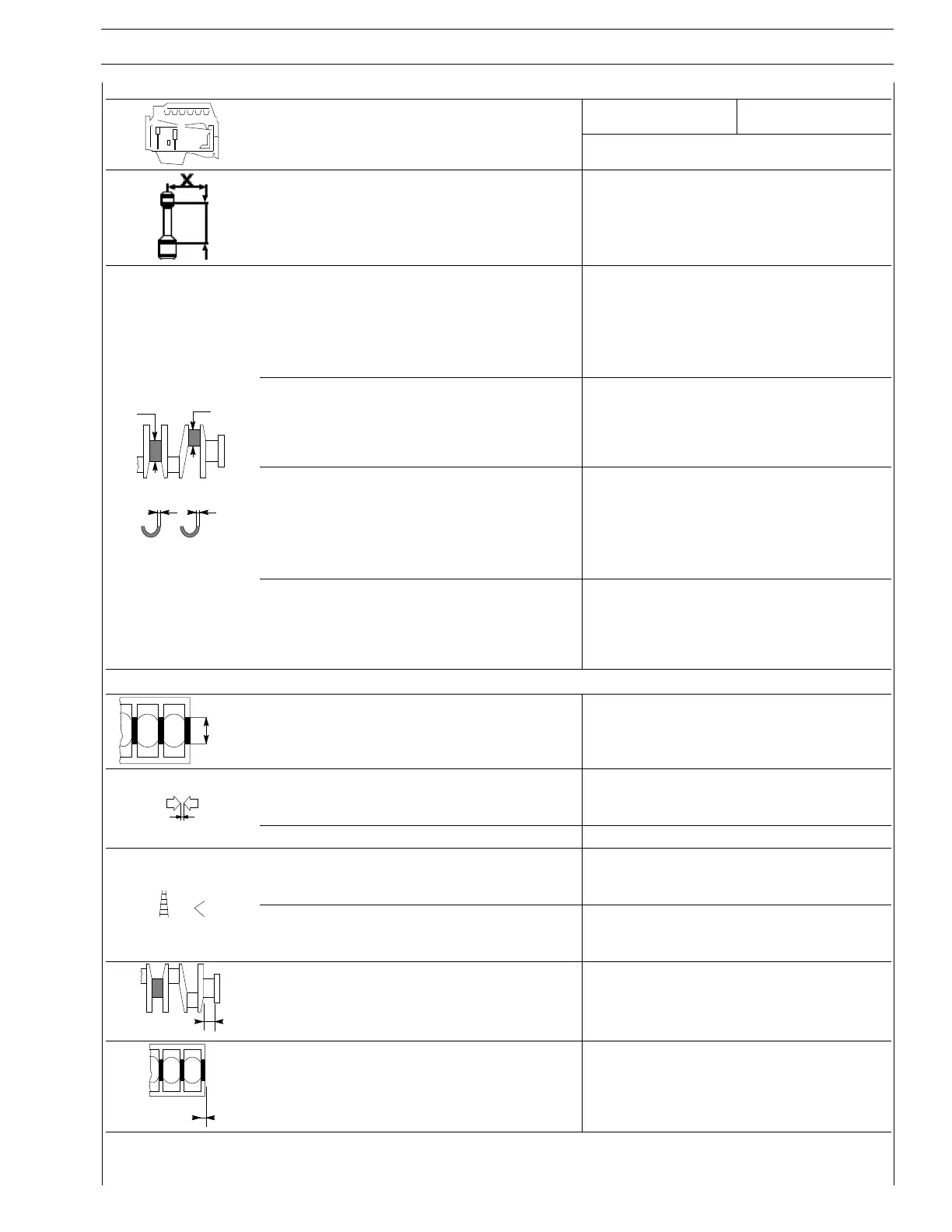

SECTION 7 - TECHNICAL SPECIFICATIONS
7
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
Type
F3HFA615A*D001 F3HFA615B*D001
mm
Measuring point x -
Maximum error in parallelism of con-
necting rod axes
/-
12


S
1
S
2
Main journals Ø1 nominal value 99.970 - 100.000
Selection class
1 99.970 - 99.977
2 99.978 - 99.985
3 99.986 - 99.993
4 99.994 - 100.000
Crankpins Ø2 nominal value 95.970 - 96.000
Selection class
1 95.970 - 95.979
2 95.980 - 95.989
3 95.990 - 96.000
Main half-bearings YES
Red colour 3.115 - 3.122
Green colour 3.123 - 3.130
Yellow colour* 3.131 -3.138
Black colour* 3.139 -3.146
Connecting rod half-bearings S2
Red colour 1.960 - 1.970
Green colour 1.970 -1.980
Yellow colour* 1.980 -1.990
*Hal
f
-bea
r
in
g
sonl
y
fitted in
p
roduction
3

Main bearings Ø3 106.300 - 106.330
Main half bearings (L)
0.060 - 0.108*
0.061 - 0.119**
0.060 - 0.130***
Big end bearing shells (L) 0.060 - 0.100
Main half-bearings
0.060 - 0.108*
0.061 - 0.119**
0.060 - 0.130***
Connecting rod half-bearings
0.050 - 0.108*
0.051 - 0.109**
0.050 - 0.098***
X1
Thrust main journal X1 47.95 - 48.00
X2
Thrust main bearing X2 40.94 - 40.99
(L) Supplied as spares: standard: ** = 0.127; *** = 0.254 - 0.508

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
