FPT CURSOR Series User Manual

8

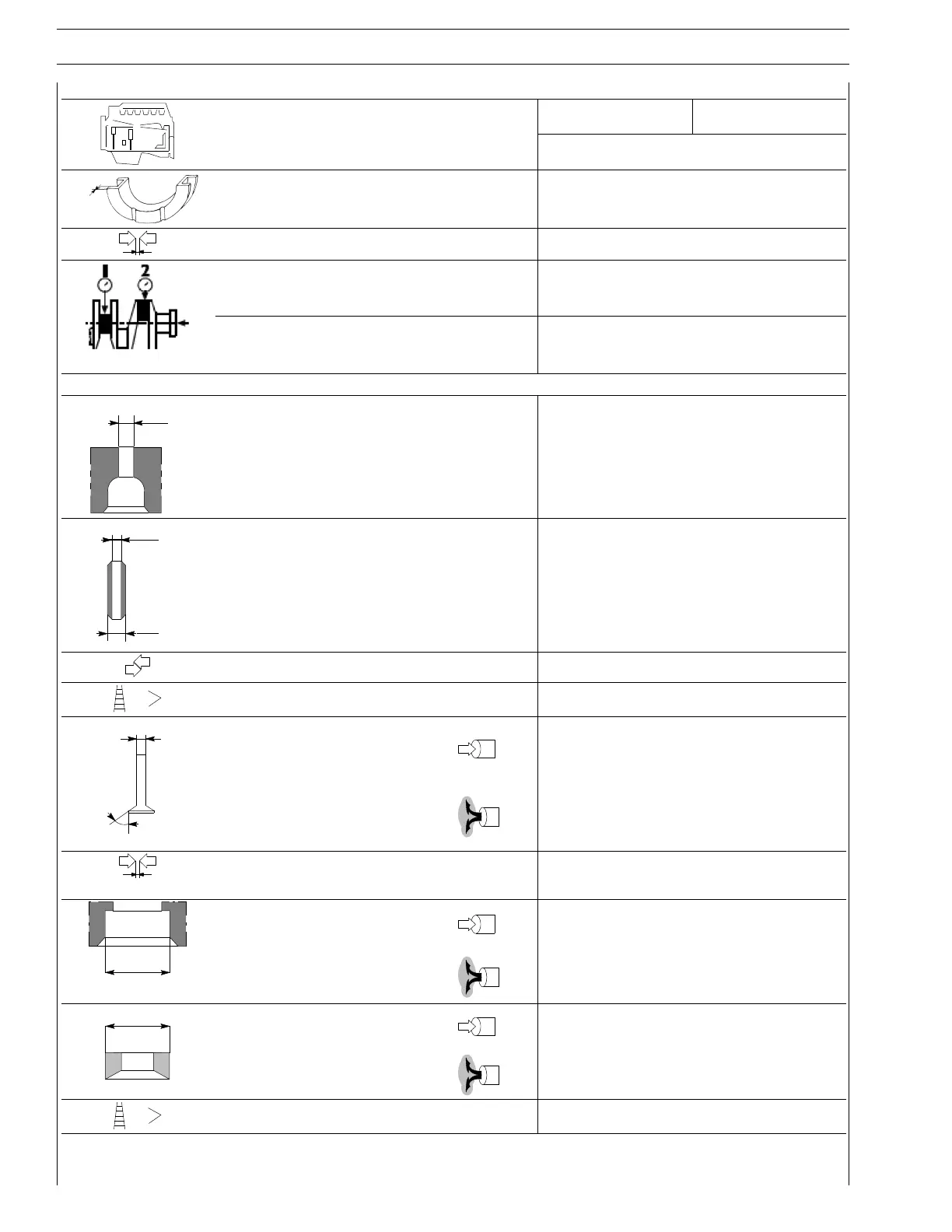

SECTION 7 - TECHNICAL SPECIFICATIONS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Type
F3HFA615A*D001 F3HFA615B*D001
mm
X3
Half thrust washers (thickness) X3 3.115 - 3.139
Crankshaft end play 0.15 - 0.215
Alignment 1-2 -
Centring 1-2 -
CYLINDE
R
HEAD - TIMING SYSTEM

1
Valve guide housing on cylinder head Ø1 15.980 - 15.997
2


3
Valve guides
Ø2 10.015 - 10.030
Ø3 16.012 - 16.025
Valve guides and seats on the head 0.015 - 0.045
Valve guides -


4
Valves:
Ø4

9.960 - 9.975
60˚ 30’ ± 7’ 30’’
Ø4

9.960 - 9.975
60˚ 30’ ± 7’ 30’’
Valve stem and related guide 0.040 - 0.070

1
Housing on head for valve seat:
Ø1
49.185 - 49.220
Ø1
46.985 - 47.020
2

Outside diameter of valve seats: valve
housing inclination on cylinder head:
Ø2
49.260 - 49.275
Ø2
47.060 - 47.075
Valve seat 0.2

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
