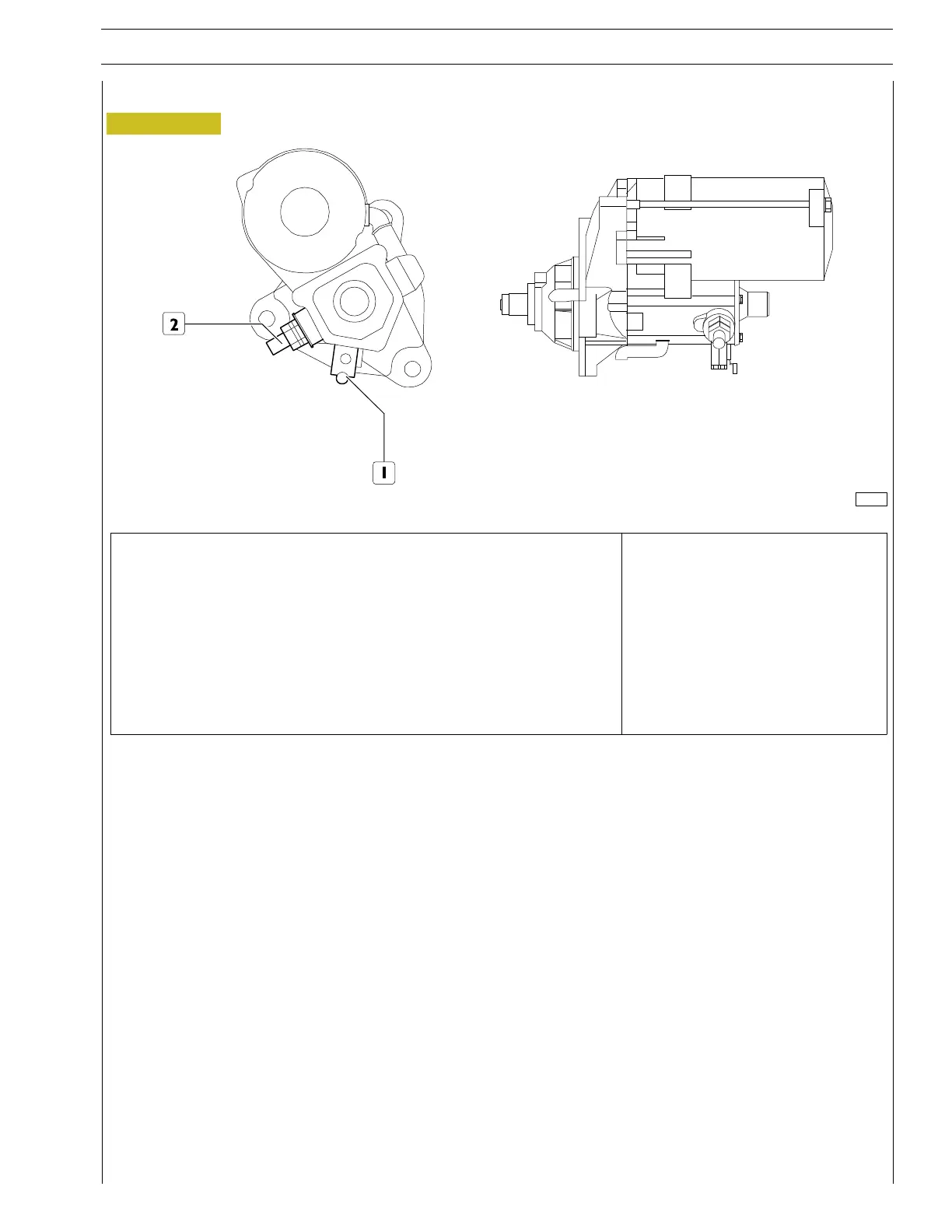

Figure 27
ELECTRIC STARTER MOTOR
SECTION 3 - ELECTRIC EQUIPMENT
17
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
<
Voltage
Nominal power
Rotation direction control side
Pinion number of teeth
Supplier
Weight
Tightening torque on terminal 30
Tightening torque on terminal 50
24 V
7.8 KW (SAE J544B 24V Heavy Duty)
clockwise
10
DENSO
~ 10.5 kg
26 ± 4 Nm
3.6±1Nm
