FPT CURSOR Series User Manual

14
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
THERMOSTAT CASE
REMOVAL-REFITTING
Removal

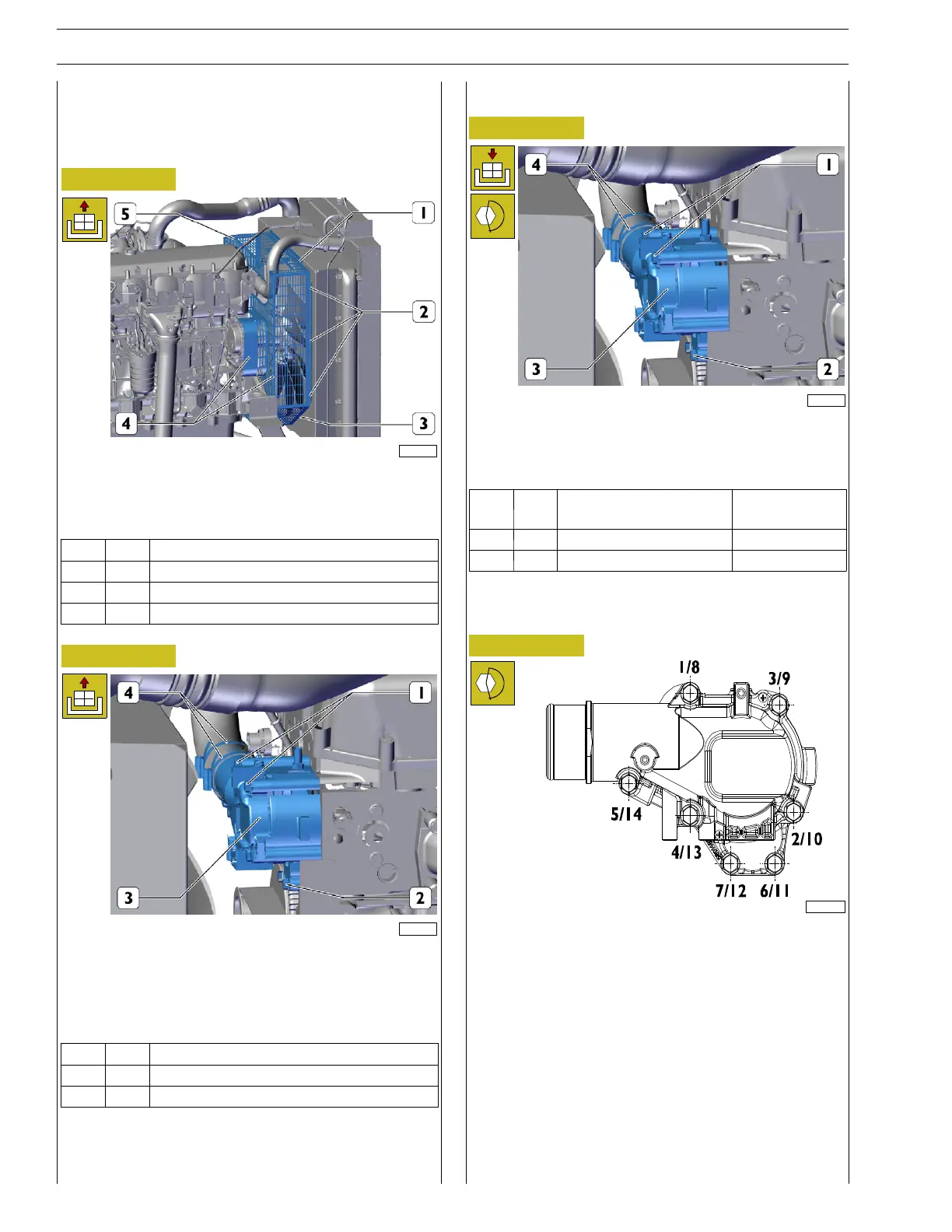

Figure 32
227753
Undo the top screws (1), side screws (2) and bottom screws
(3) and remove the grilles (4) and (5) that protect the fan on
both sides.
Ref.
No. Description
(1) 5 Screws M8x1.25x20
(2) 6 Screws M8x1.25x20
(3) 1 Screw M8x1.25x20
Figure 33
227758
Slacken the clamps (4) and from the thermostat (3)
disconnect the coolant supply pipe to the radiator assembly.
Unscrew the screws (1, 2) and remove the thermostat box
(3), thermostat and relative gaskets.
Ref.
No. Description
(1) 5 Screws M8 X 1.25 X 100
(2) 2 Screws M8 X 1.25 X 50
Refitting
Figure 34
227758
Assemble the thermostat, the thermostat box (3), with
relative gaskets and tighten screws (1, 2) to the torque shown
in the table.
Ref.
No. Description
Tightening
torques
(1) 5 Screws M8 X 1.25 X 100 30 ± 3 Nm
(2) 2 Screws M8 X 1.25 X 50 30 ± 3 Nm
Connect to the thermostat (3) the coolant supply pipe to the
radiator assembly and tighten the clamps (4).
Figure 35
225033
Tighten the screws securing the thermostat case following
the sequence indicated in the figure.
