2. Replacement and adjustment of parts
26810
26810
Zigzag adjustment
IMPORTANT

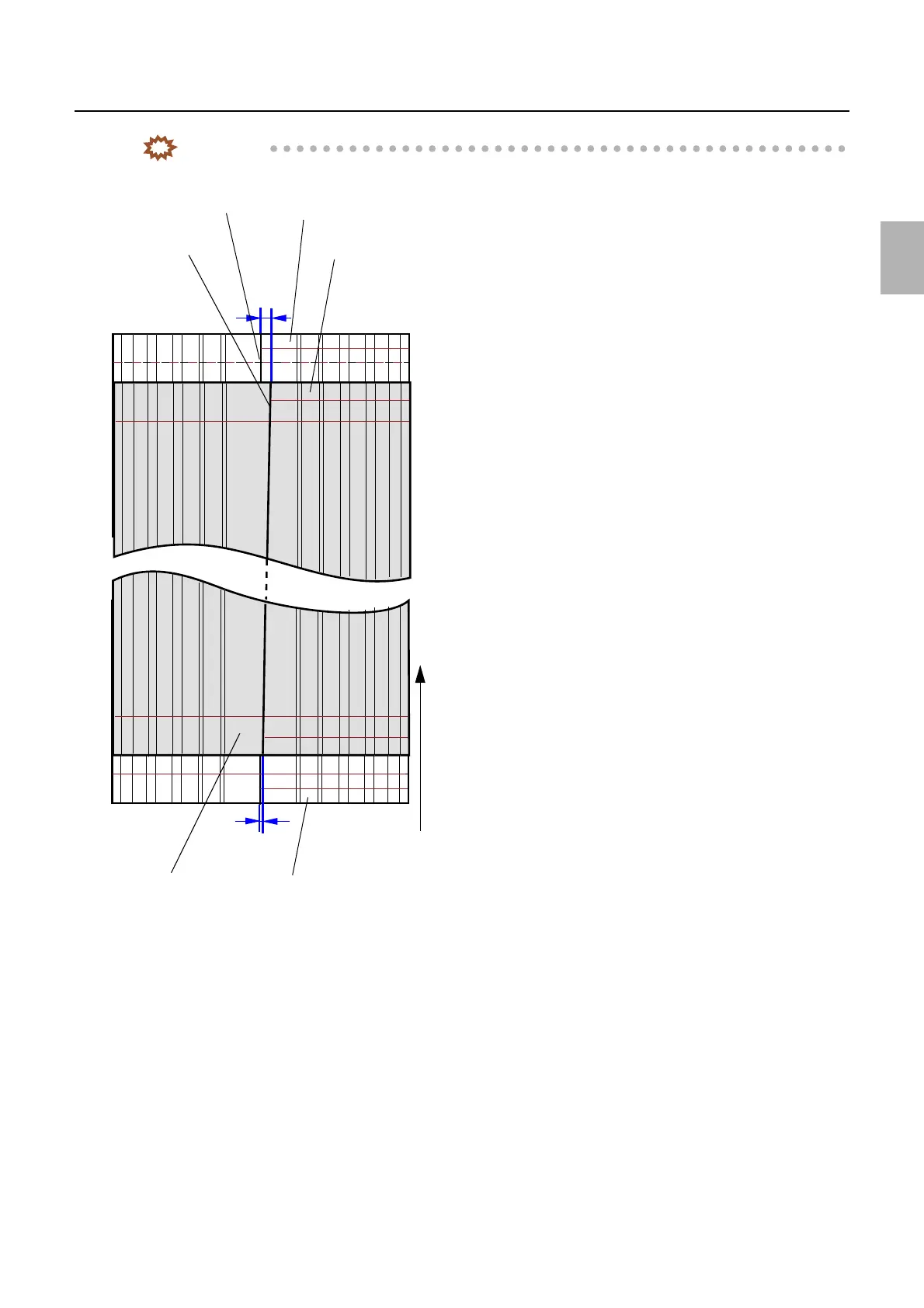

• Take the second test print as a standard. Calculate the zigzagging amount by the difference of lines A and
lines C of the first and second prints. If the zigzagging amount is within 0.5 mm, it is not necessary to adjust.
A
A
C
C
Paper advance
direction
Second test print
First test print
A
C
First test print
Second test print
Center line on the second
print
Center line on the
first print
G072383
