2. Replacement and adjustment of parts
27330
3/3
27330
Drive section

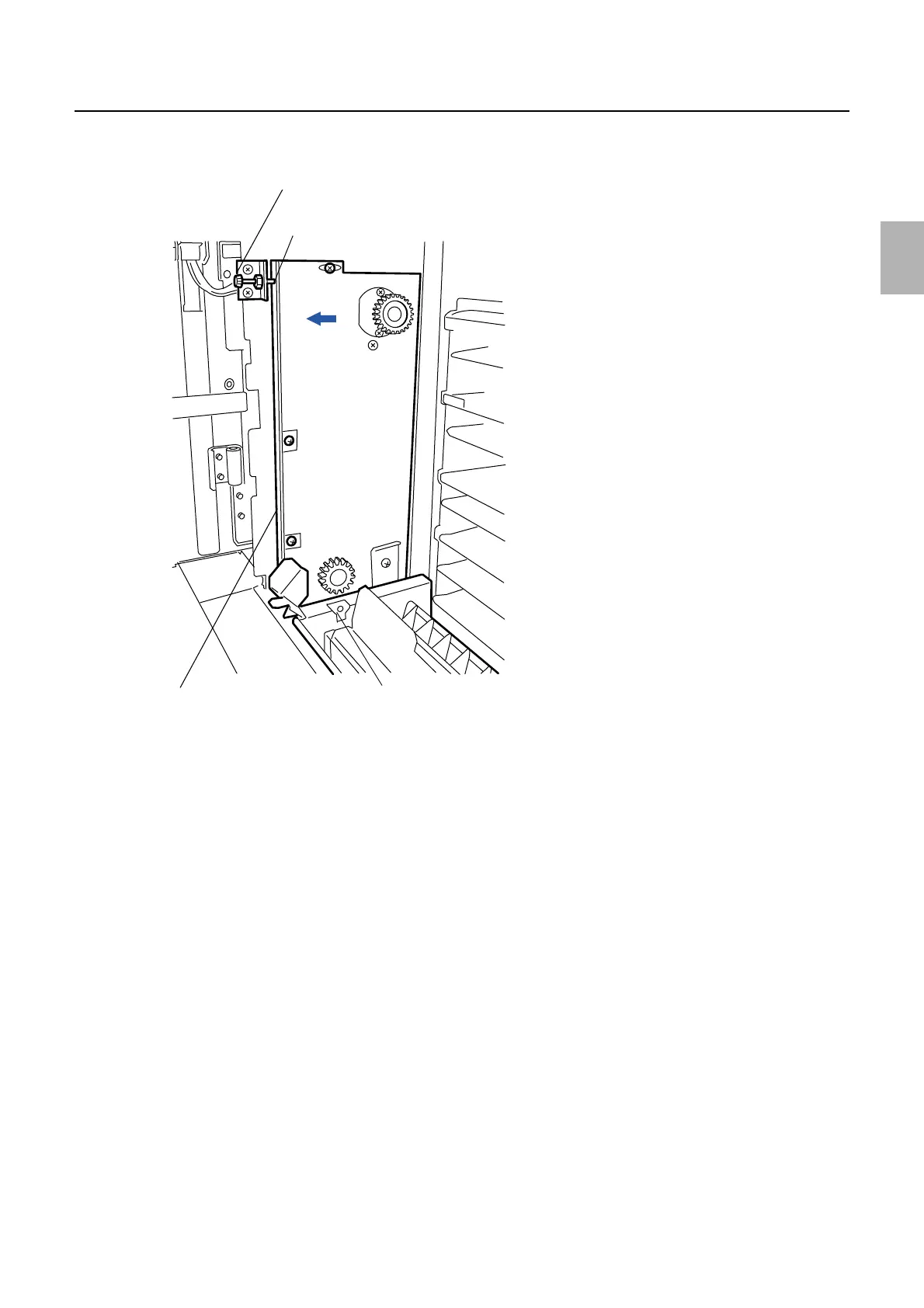

7. Move the drive unit (upper) to the direction indicated by the arrow, and tighten three screws for A, B and
C section at the position where the end of the adjusting bolt touches the D side of the drive unit.
8. Attach the dryer rack (upper).
Adjusting unit (upper)
C
A
B
Adjusting bolt
Side D
Fulcrum
G085393
