3. Mode
36070
3/4
36070
Printer Mechanical Adjustment
8. Measure the length from the left end to the center line and the length from the center line to the right end
on the leading end of the test print.
9. Enter each measurement dimension.
10. After correcting carry out Test Print Confirmation with Master Value of F: Functions and be sure to
make a print and check if the exposure center is correct.
Exposure Center Correction (for each Paper Magazine)
1. Check that the zigzagging adjustment of the exposure advance unit has been completed.
☞36080
2. Check that the zigzagging adjustment of the magazine mount has been completed.
☞22100
3. Attach the paper magazine for Exposure Center Correction to the magazine mount A/A2/B/C.
4. Select paper magazine A/A2/B/C.
5. Carry out Test Print Confirmation with Master value of F: Functions.

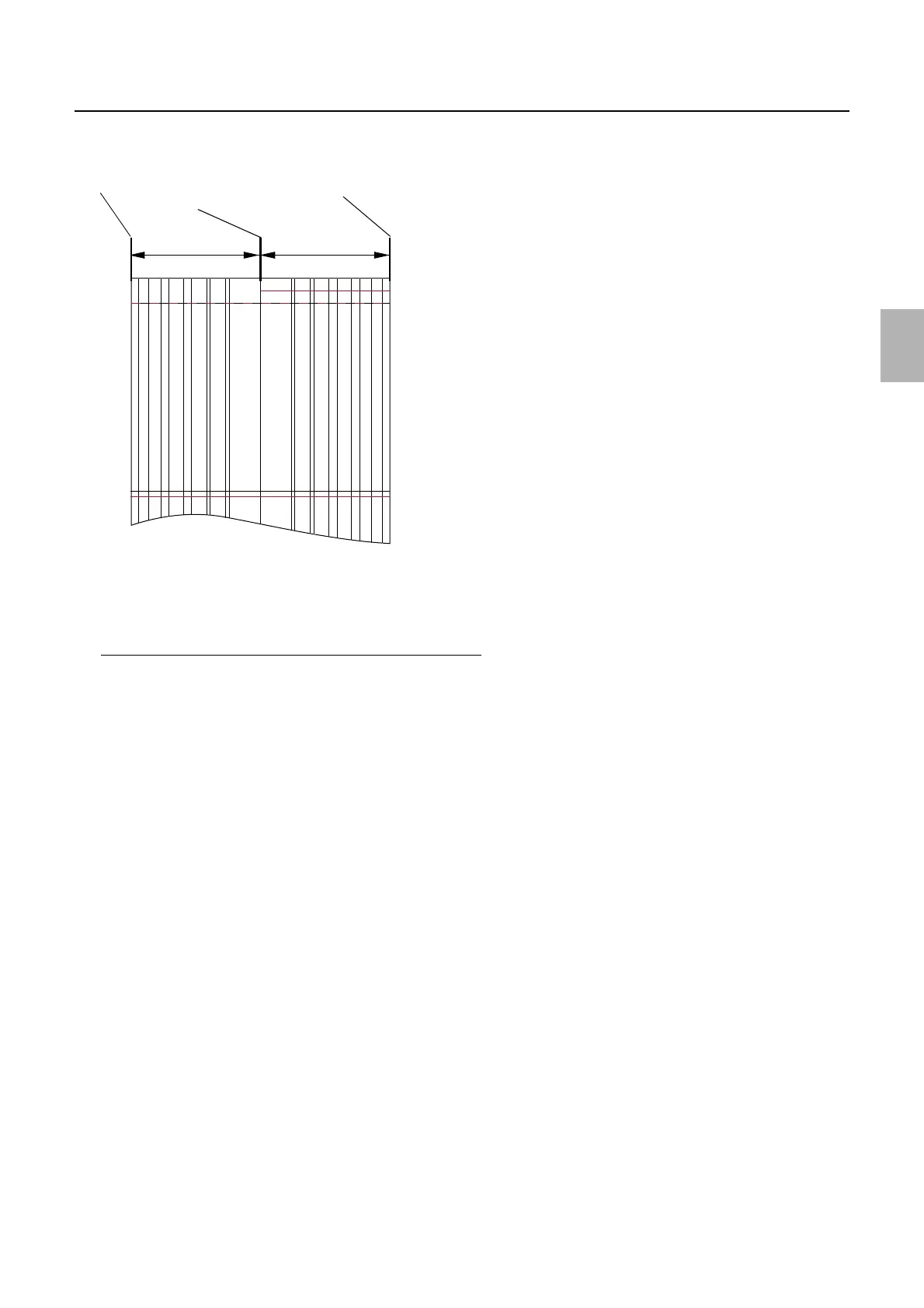

A
Left end of the paper
Center line
Right end of the paper
G068463
