5. Operation sequence
55210
3/5
55210
Paper advance operation
4. Arm unit 1 advances paper to the exposure advance unit.
• Paper supply arm motors (right and left): ON (forward)/OFF
• Paper supply motor A/A2/B/C: OFF
• Paper advance motor 1: ON
When zigzagging correction sensors (right and left) do not turn dark:
• ☞ No. 06135-00001
Arm Unit 1 operation error.
IMPORTANT
• Arm unit 1 carries the paper at the same speed of the paper advance rollers until the paper passes through
the paper advance rollers.
5. The zigzag correction is performed.
• Paper supply arm motors (right and left): ON/OFF
NOTE
• The zigzag correction is performed after paper advance operation stops.
6. When the paper advance length is 300 mm or more, paper supply pressure is released.
• Paper supply pressure change motor: ON (released)/OFF
When the paper supply pressure change sensor does not turn dark:
• ☞ No. 06134-00002
Paper Supply Pressure Change Motor operation error.

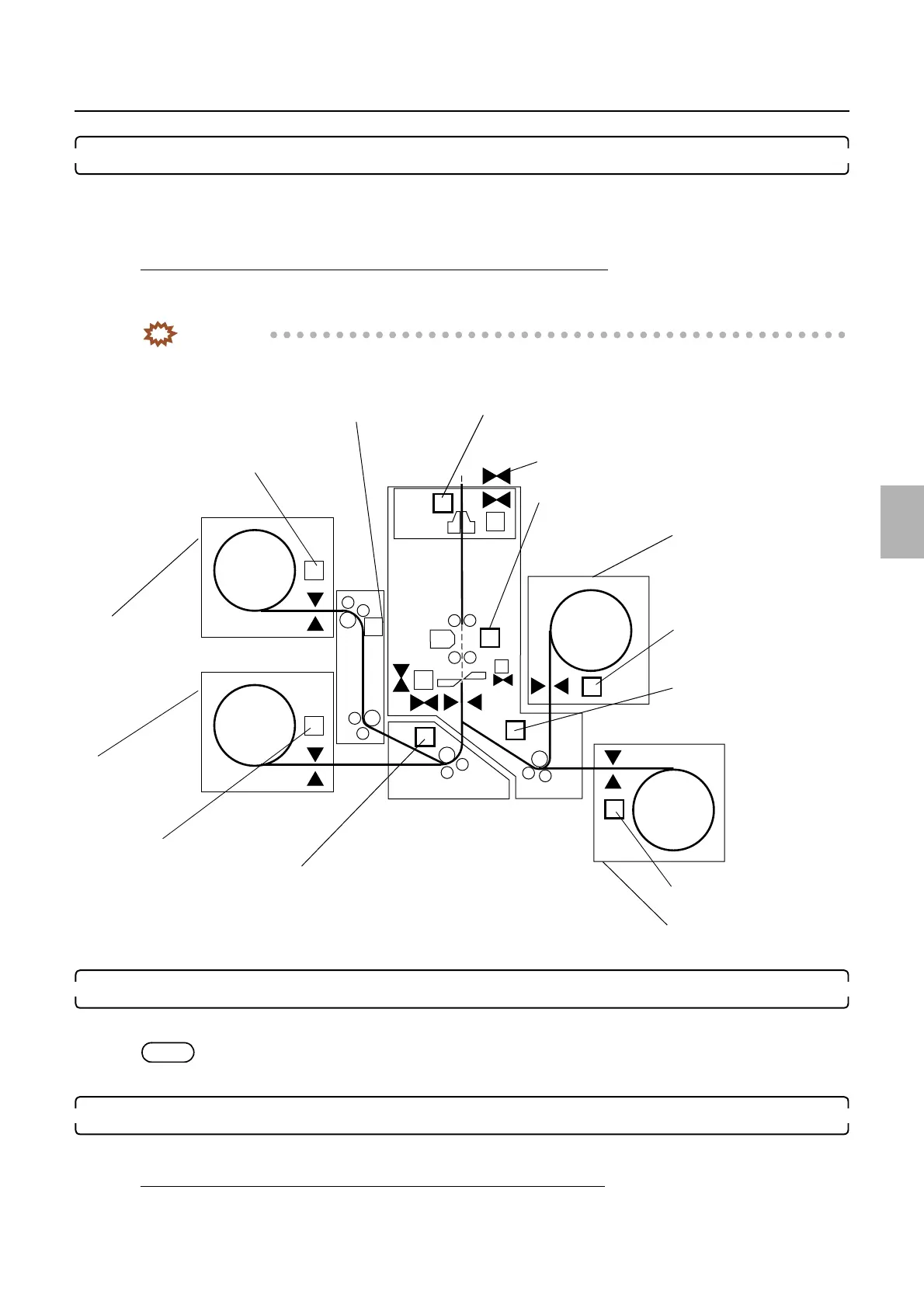

Note: The thick solid line indicates the paper.
Paper supply motor B/C
Paper magazine C
Paper magazine A
Paper magazine motor B
Paper magazine motor C
Paper supply motor A2
Paper magazine motor A
Paper magazine BPaper magazine B
Paper supply arm motor (right or left)
Zigzagging correction sensor (right or left)
Paper advance motor 1
Paper magazine A2
Paper magazine motor A2
Paper supply motor A
G068497
