Frontier LP7700 - Page 667

2/5
5. Operation sequence
55210
55210

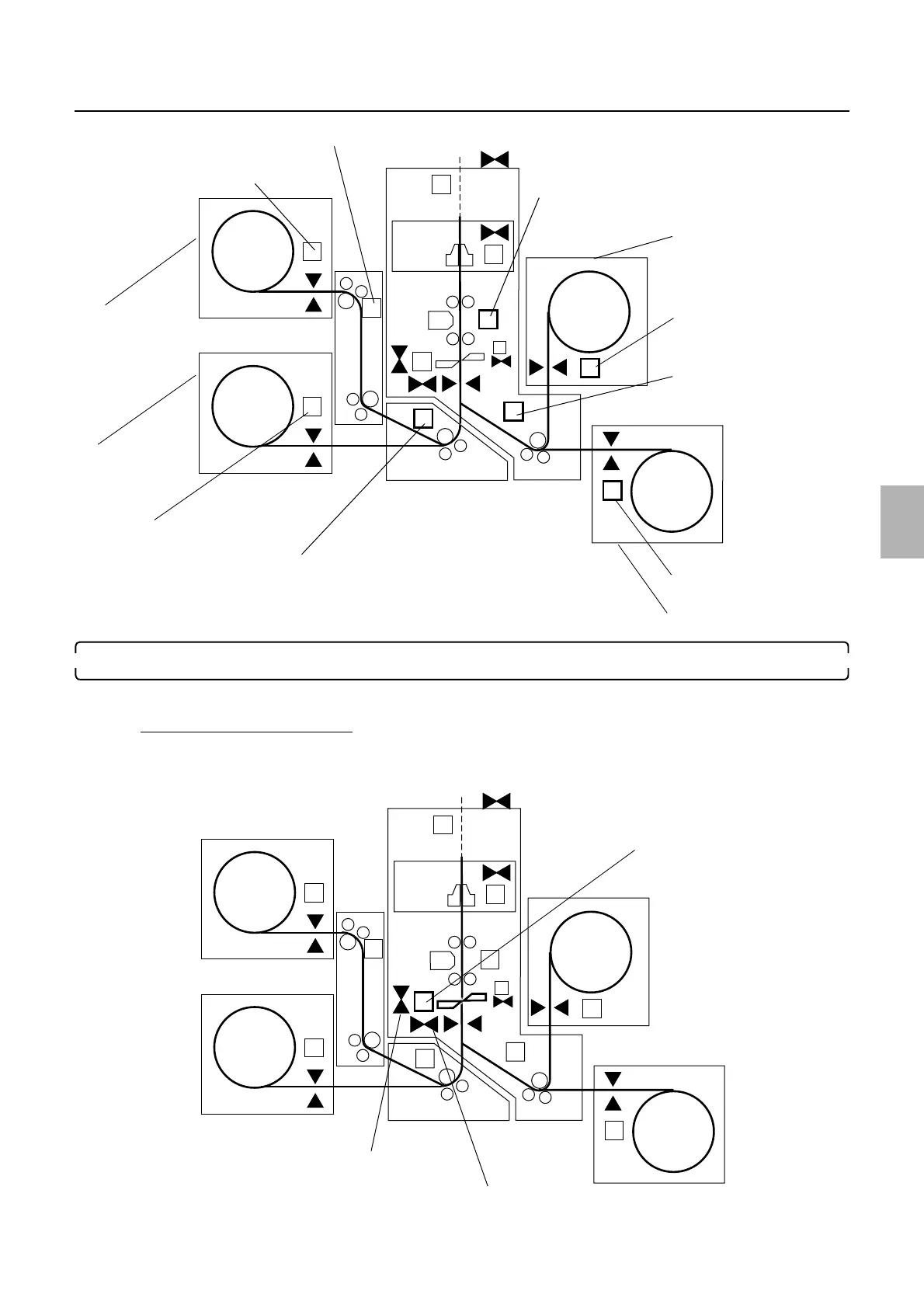

Paper advance operation
3. The paper is cut.
• Cut motor: ON/OFF
When cutting is not completed:
• ☞ No. 06016-00001
Paper Cutter operation error.
Note: The thick solid line indicates the paper.
Paper supply motor B/C
Paper magazine C
Paper magazine A
Paper magazine motor B
Paper magazine motor C
Paper supply motor A
Paper magazine motor A
Paper magazine B
Paper advance motor 1
Paper magazine A2
Paper magazine motor A2
Paper supply motor A2
G068495
Note: The thick solid line indicates the paper.
Cut end sensor
Cut home sensor
Cut motor
G068496
