5. Operation sequence
55220
2/6
55220
Paper advance operation
IMPORTANT
• Arm unit 1 advances the paper at the same speed of loading.
3. The zigzag correction is performed.
• Paper supply arm motors (right and left): ON/OFF
NOTE
• The zigzag correction is performed after paper advance operation stops.
4. The paper is advanced for the paper length.
• Paper magazine motor A/A2/B/C: ON
• Paper supply motor A/A2/B/C: ON
• Paper advance motor 1: ON
IMPORTANT
• The machine makes a loop in the paper supply unit to adjust advance speeds of exposure advance operation
and paper supply operation.

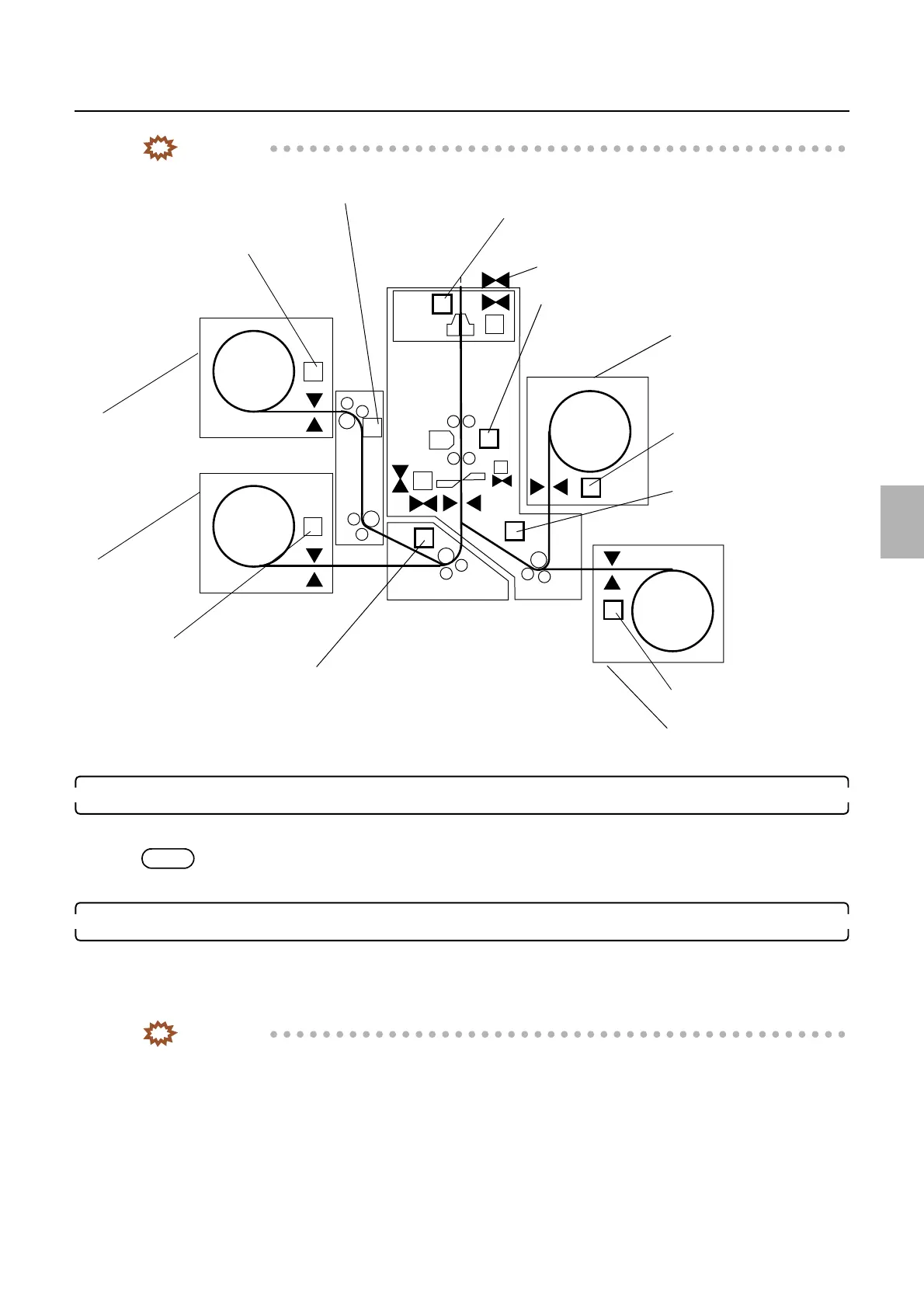

Note: The thick solid line indicates the paper.
Paper supply motor B/C
Paper magazine C
Paper magazine A
Paper magazine motor B
Paper magazine motor C
Paper supply motor A
Paper magazine motor A
Paper magazine BPaper magazine B
Paper supply arm motor (right or left)
Zigzagging correction sensor (right or left)
Paper magazine A2
Paper magazine motor
A2
Paper supply motor A2
Paper advance motor 1
G069826
