3/6
5. Operation sequence
55220
55220
Paper advance operation
5. The paper is cut.
• Cut motor: ON/OFF
When cutting is not completed:
• ☞ No. 06016-00001
Paper Cutter operation error.

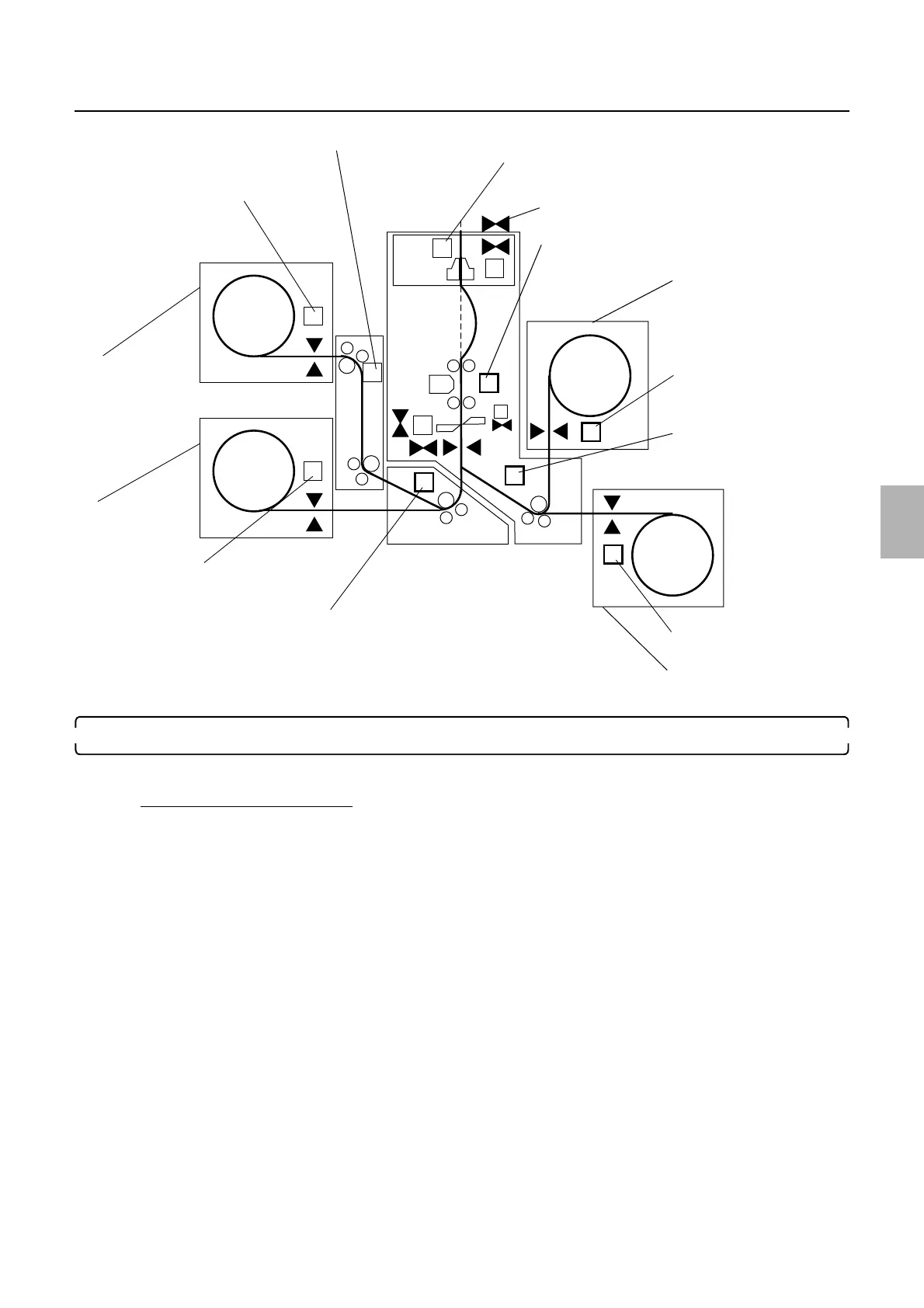

Note: The thick solid line indicates the paper.
Paper supply motor B/C
Paper magazine C
Paper magazine A
Paper magazine motor B
Paper magazine motor C
Paper supply motor A
Paper magazine motor A
Paper magazine BPaper magazine B
Paper supply arm motor (right or left)
Zigzagging correction sensor (right or left)
Paper magazine A2
Paper magazine motor
A2
Paper supply motor A2
Paper advance motor 1
G069827
