5. Operation sequence
55500
55500
Paper advance operation

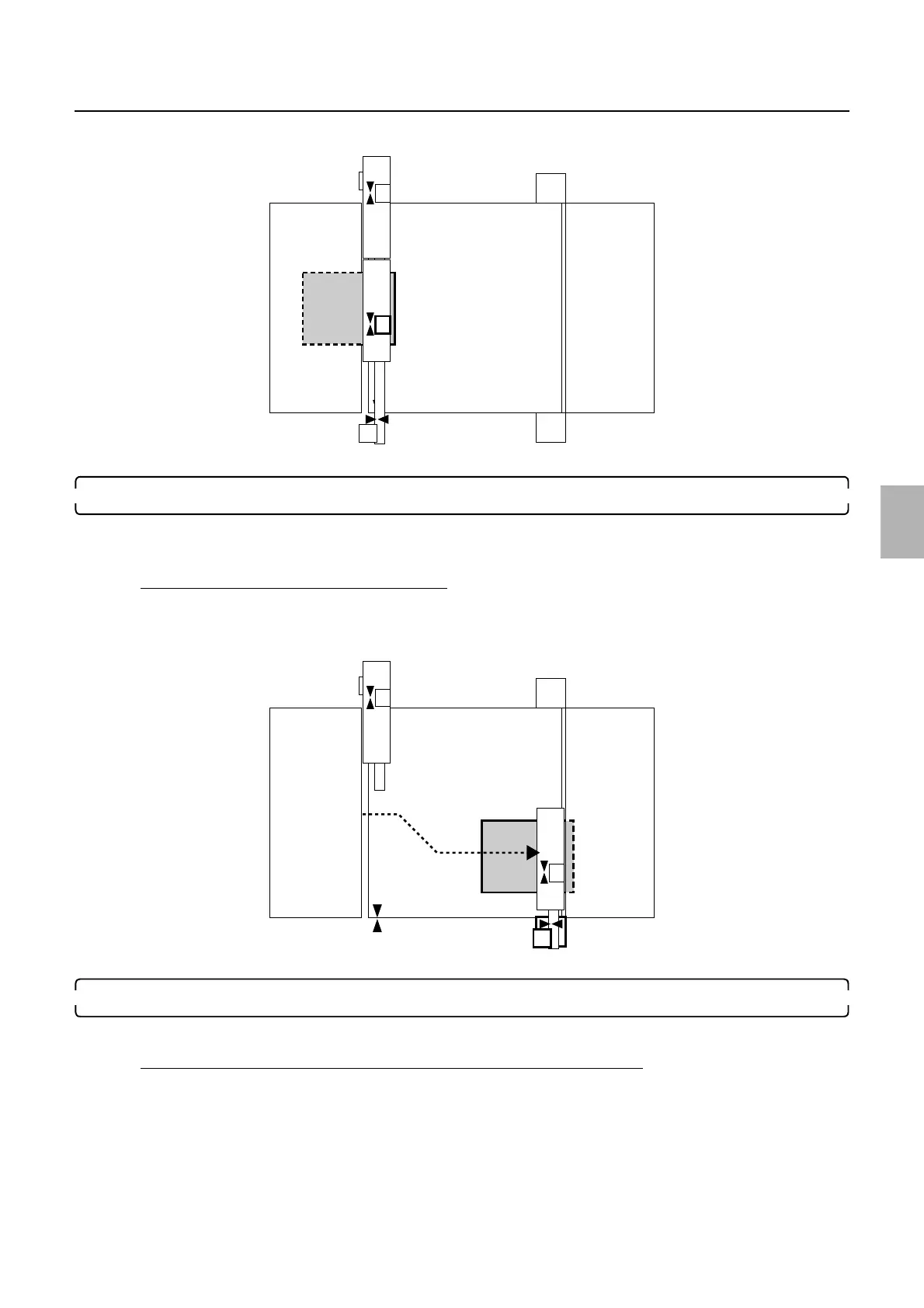

5. Arm unit 2 (right) moves to the processor loading unit.
• Lane select motor (right): ON/OFF
• Paper advance arm motor (right): ON/OFF
If the arm sensor (right) does not turn LIGHT
• ☞ No. 06139-00002
Paper Advance Arm Motor (Right) operation error.
6. Arm unit 2 (right) releases pressure.
• Paper advance pressure change motor (right) :ON (released)/OFF
If the paper advance pressure change sensor (right) does not turn LIGHT
• ☞ No. 06143-00002
Paper Advance Pressure Change Motor (Right) operation error.
G069841
G069842
