5. Operation sequence
55510
55510
Paper advance operation

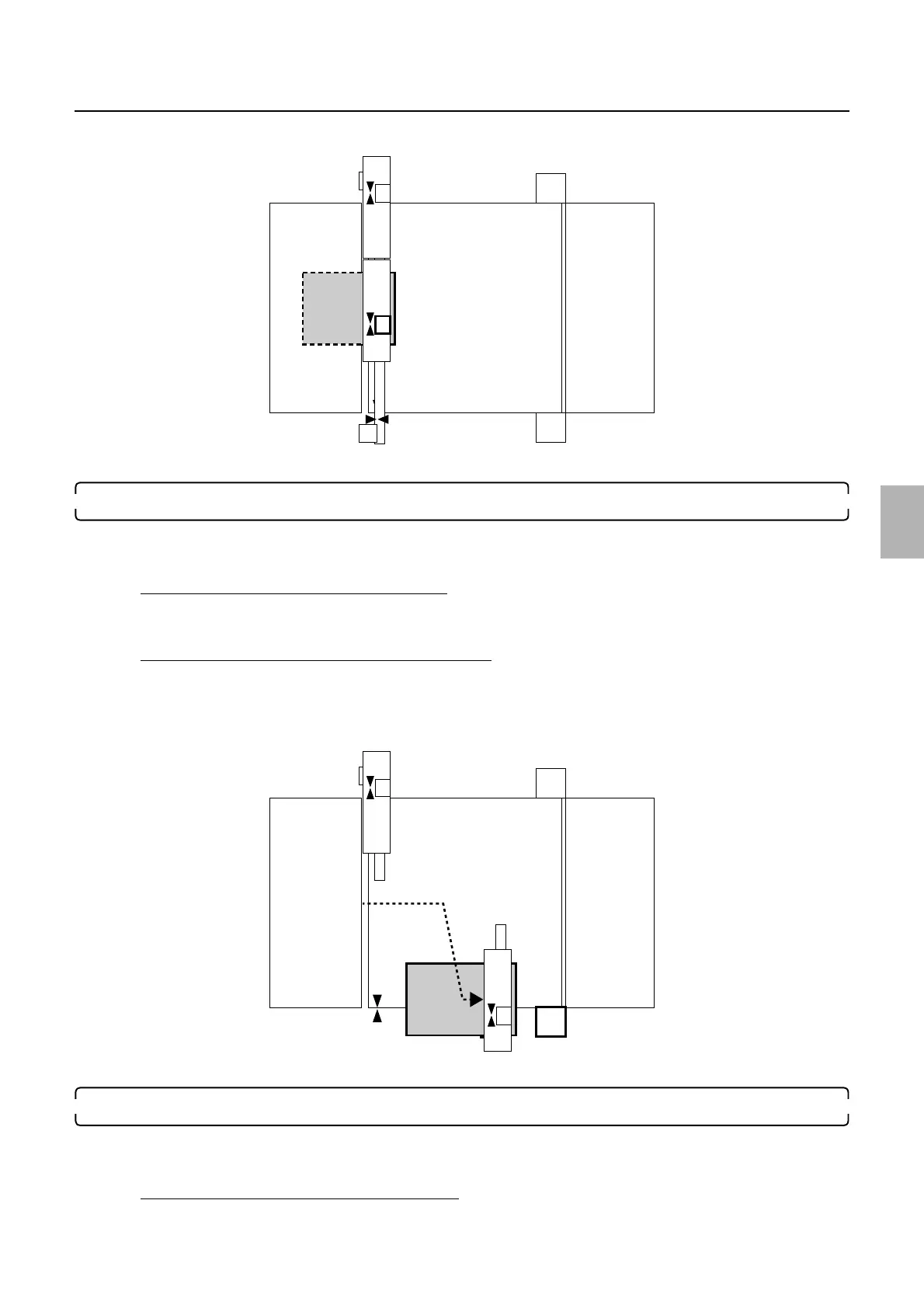

5. Arm unit 2 (right) moves to the paper advance standby position.
• Lane select motor (right): ON/OFF
• Paper advance arm motor (right): ON/OFF
If the arm sensor (right) does not turn LIGHT
• ☞ No. 06139-00002
Paper Advance Arm Motor (Right) operation error.
If the lane select sensor (right) does not turn DARK
• ☞ No. 06141-00001
Lane Select Motor (Right) operation error.
6. Arm unit 2 (left) moves to paper receiving position of paper advance unit 1.
• Lane select motor (left): ON/OFF
• Paper advance arm motor (left): ON/OFF
If land select sensor (left) does not turn LIGHT
• ☞ No. 06140-00002
