5. Operation sequence
56300-5
3/4
56300-5
Print sorter unit operation
!
!!
! Basic operation of paper guide
!
!!
! When the paper guide moves to open position (raised)
1. Turn on the power supply.
• The paper guide motor: ON (reverse)
The paper guide moves with following condition.
• Condition: The paper guide is in closed position (lower).
NOTE
• Stored paper may be output from the system because of initial-activated operation.
2. The first sheet of paper in the order reaches to the dryer section.
• The paper guide motor: ON (reverse)
When the following two conditions are fulfilled, the paper guide moves.
• Condition 1: The paper guide is in closed position (lower).
• Condition 2: The paper guide should be open if the first order is following chart size.
NOTE
• If orders are these size, the paper guide should be open.
• For the details of condition of print receiving tray operation, see
☞The print receiving tray moves.
3. The print sensor detects the paper rear end.
• The paper guide motor: ON (reverse)
When the following two conditions are fulfilled, the paper guide moves.
• Condition 1: The paper guide is in closed position (lower).
• Condition 2: The size of next order of the detected order applies to the size which need to open the paper guide.
Paper width Advance length
Between 152.1 and 254 mm Between 82.5 and 254 mm

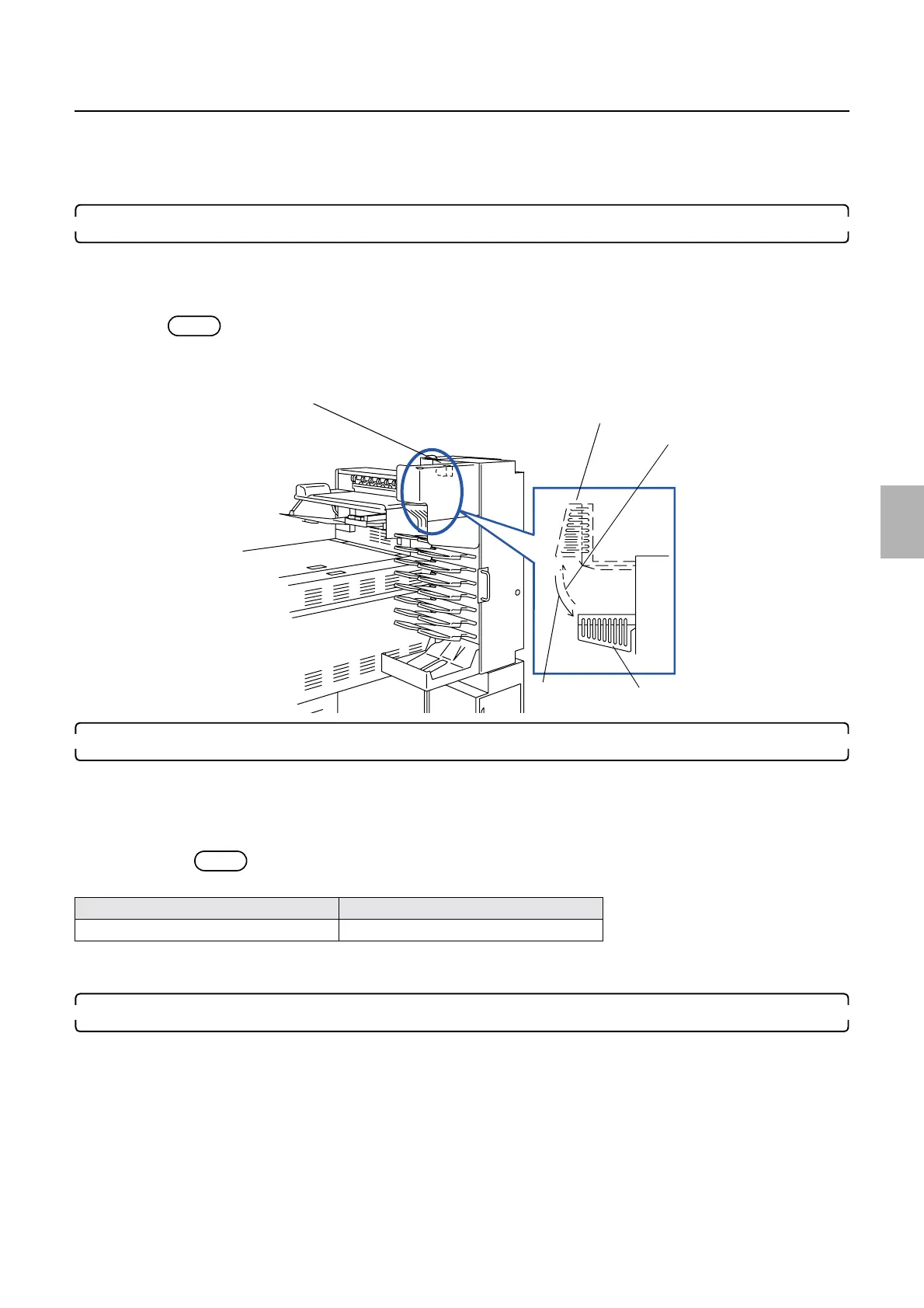

Paper guide motor: DM5
Position that the paper guide is opened.
Position that the paper guide is closed.
Forward
Reverse
G082021
