Frontier LP7700 - Page 799

3/4
6. Electrical parts
63310
63310

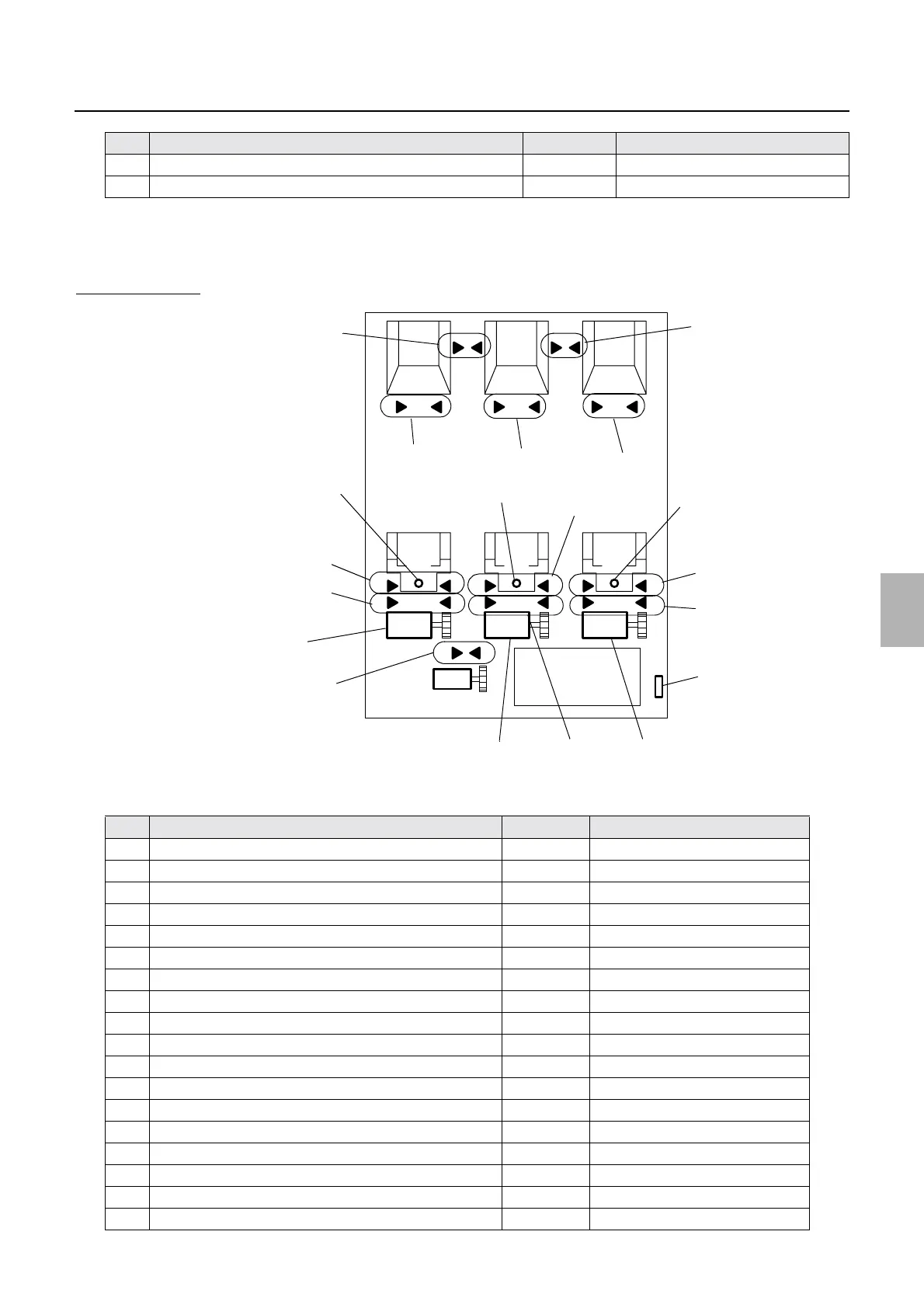

Positions of electrical parts (Processor section)
*1. For details about processor section fan operation specification, see ☞63321.
!
!!
! Layout diagram
Tablet replenishment unit section
43 Terminal strip 2 TA2
44 Transformer TR1
No. Name Symbol Remarks
1 CD Tablet Sensor 1 SE48
2 CD Tablet Sensor 2 SE49
3 BF Tablet Sensor 1 SE50
4 BF Tablet Sensor 2 SE51
5 STB Tablet Sensor 1 SE52
6 STB Tablet Sensor 2 SE53
7 CD Cartridge Sensor SE54
8 BF Cartridge Sensor SE55
9 STB Cartridge Sensor SE56
10 Upper sensor for elevator SE57
11 Middle sensor for elevator SE58
12 Lower sensor for elevator SE59
13 Tablet replenishment unit interlock switch LS9
14 CD Drum motor M4
15 BF Drum motor M5
16 STB Drum motor M6
17 Elevator motor M7
18 CD Operation Lamp L5
No. Name Symbol Remarks
9
8
7
10
11
1
2
3
5
6
13
4
12
14
15
16
18
19
20
QSS-3701/3702/3703 [J]
G051047
