Explanation of PCBs (Processor section)
1/2
6. Electrical parts
66600
66600
SM I/O PCB (J391191, J391378) [SM]
NOTE
• SM I/O PCB J390330 does not comply with the RoHS directive.
!
!!
! Function
• Supplies the power to each sensor of the SM replenishment section and relays the input signal.
• Drives each replenisher pump and water supply pump of the SM replenishment section and relays the output signal.
!
!!
! Reference
!
!!
! Adjustments and precautions for PCB replacement
NOTE
• Adjustment methods after replacement are different between SM I/O PCBs J391191, J390330 and J391378.
!
!!
! Unused connector
!
!!
! Component parts table

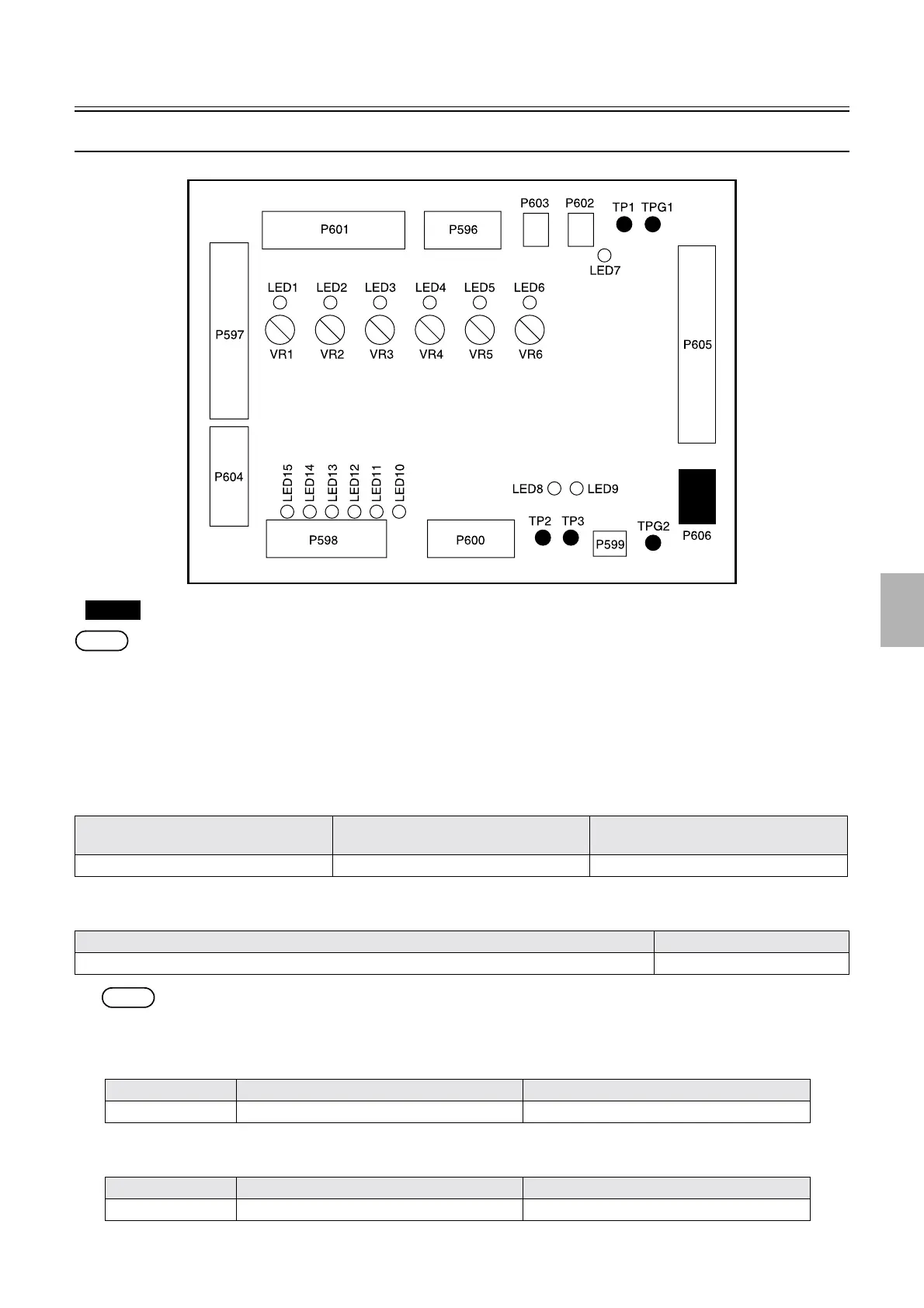

Layout diagram Symptom due to the poor connection of
wiring
Symptoms of fuse blowout
☞63200 - -
Explanation Reference
• Adjust the sensitivity of the replenishment solution sensor, after replacing the PCB. ☞27830
Connector No. Purpose Remarks
P606 Unused
LED No. Purpose Status
LED1 CD−A replenishment solution presence check ON when there is replenishment solution.
Unused
G070013
Distributed by: minilablaser.com
To Next Page
